NEW Bently Nevada 3300 XL 8MM Proximity PROBE 330101-00-08-05-02-05 Transducer System

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

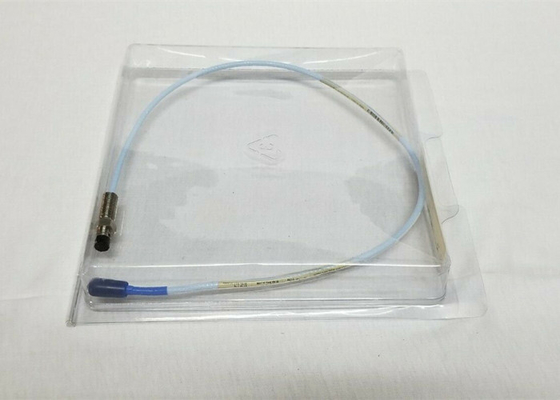

NEW Bently Nevada 3300 XL 8MM Proximity PROBE 330101-00-08-05-02-05 Transducer System

Large Image :  NEW Bently Nevada 3300 XL 8MM Proximity PROBE 330101-00-08-05-02-05 Transducer System

Product Details:

Place of Origin: U.S.A
Brand Name: Bently Nevada
Certification: CE
Model Number: 330101-00-08-05-02-05

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: In Stock
Payment Terms: T/T / Paypal / Western Union
Supply Ability: 50
Detailed Product Description
Category: Vibration Probe Model: 330101-00-08-05-02-05
Brand: Bently Nevada Country Of Origin: U.S.A
Series: 3300 XL 8mm Condition: NEW
High Light:

industrial automation using plc

,

industrial programmable controller

NEW Bently Nevada 3300 XL 8MM Proximity PROBE 330101-00-08-05-02-05 Transducer System







Description



Proximity Probe and Extension Cable





The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc* molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc* design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc* cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.






Transducer System


The 3300 Proximity Transducer System consists of:



  • a 3300 XL 8 mm probe or 3300 5 mm probe
  • a 3300 XL extension cable
  • a 3300 Proximitor Sensor



The system provides an output voltage directly proportional to the distancebetween the probe tip and the observed conductive surface. It is capable ofboth static (position) and dynamic (vibration) measurements, and is primarilyused for vibration and position measurement applications on fluid-filmbearing machines, as well as Keyphasor and speed measurementapplications.

The system provides an accurate, stable signal output over a widetemperature range. All 3300 Proximity Transducer Systems achieve thislevel of performance while allowing complete interchangeability of probe,extension cable, and Proximitor Sensor without the need for individualcomponent matching or bench calibration.





Ordering Information for Probes





3300 XL 8 mm Proximity Probes:



330101  3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor2

330102  3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor2





Part Number-AXX-BXX-CXX-DXX-EXX



A:Unthreaded Length Option



Note:Unthreaded length must be at least 0.8 inches less than the case length.

Order in increments of 0.1 in Length configurations:Maximum unthreaded length: 8.8 in Minimum unthreaded length: 0.0 inExample: 0 4= 0.4 in





B:Overall Case Length Option



Order in increments of 0.1 inThreaded length configurations:Maximum caselength:9.6 inMinimum case length: 0.8 inExample: 2 4 = 2.4 in





C:Total Length Option



05  0.5 meter(1.6 feet)
10  1.0 meter(3.3 feet)
15  1.5 meter(4.9 feet)
20  2.0 meters (6.6 feet)
30  3.0 meters (9.8 feet)
50  5.0 meters (16.4 feet)
90  9.0 meters (29.5 feet)



Note:

3-meter length option is only available on 330101 probes, and are designed for use with the 9 meterProximitor sensor only.

5-meter probes are designed for use with the 5 meterProximitor sensor only.





D:Connector and Cable-Type Option



01  Miniature coaxial ClickLoc connector with connector protector, standard cable.
02  Miniature coaxial ClickLoc connector, standard cable.
11  Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable.
12  Miniature coaxial ClickLoc connector, FluidLoc cable.





E:Agency Approval Option



00  Not required
05  CSA, ATEX, IECEx Approvals

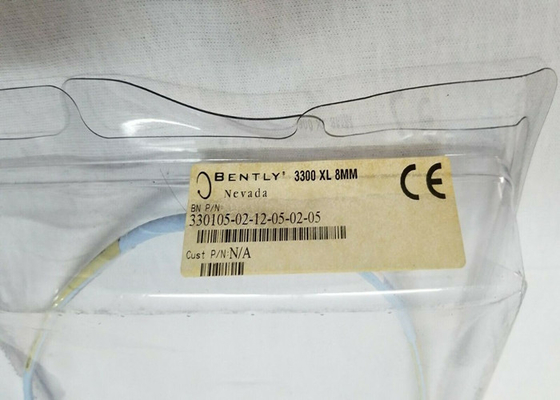

Models of 330105 Series Proximity Probes:



330105-02-12-05-00-00 330105-02-12-05-00-05 330105-02-12-05-02-00 330105-02-12-05-02-05
330105-02-12-10-00-00 330105-02-12-10-02-00 330105-02-12-10-00-05 330105-02-12-10-02-05
330105-02-12-15-00-00 330105-02-12-15-02-00 330105-02-12-15-02-05 330105-02-12-15-00-05
330105-02-12-20-00-00 330105-02-12-20-02-00 330105-02-12-20-00-05 330105-02-12-20-02-05
330105-02-12-50-00-00 330105-02-12-50-02-00 330105-02-12-50-02-05 330105-02-12-50-00-05
330105-02-12-90-00-00 330105-02-12-90-02-00 330105-02-12-90-02-05 330105-02-12-90-00-05






Dimensional diagrams



3300 XL 8 mm Proximity Probes, Standard Mount

  • 330101, 3/8-24 UNF-2A, without armor
  • 330102, 3/8-24 UNF-2A, with armor
  • 330103, M10X1 thread, without armor
  • 330104, M10X1 thread, with armor





What is Details of Our Bently Nevada Parts?

  • All the Bently Nevada Parts are new and original with package.
  • Warranty time: 180 or 360 days.


Good Service in WTL:

> Please send your RFQ to get the latest price.

> Normally, we will ship the items in 1-2 weeks after receive the payment.

> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.

> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.


 Liability:


WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.
