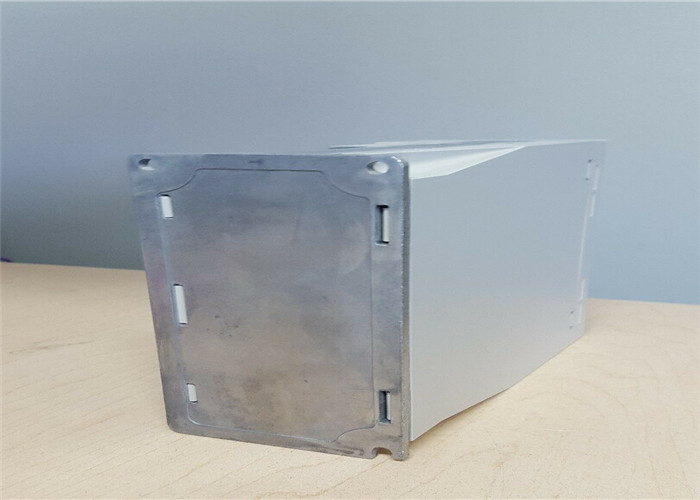

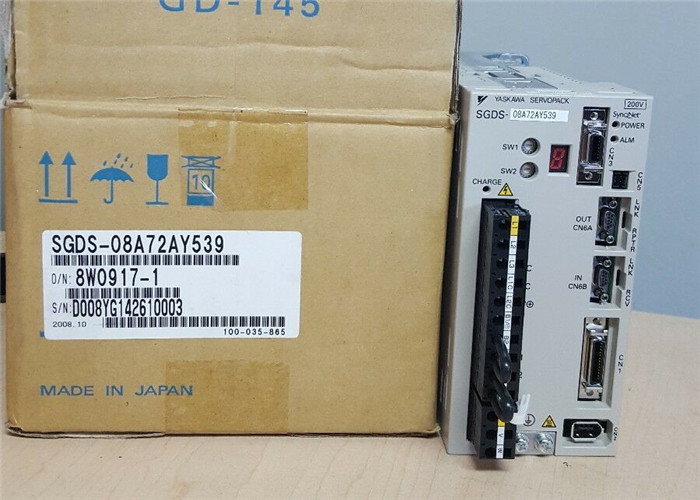

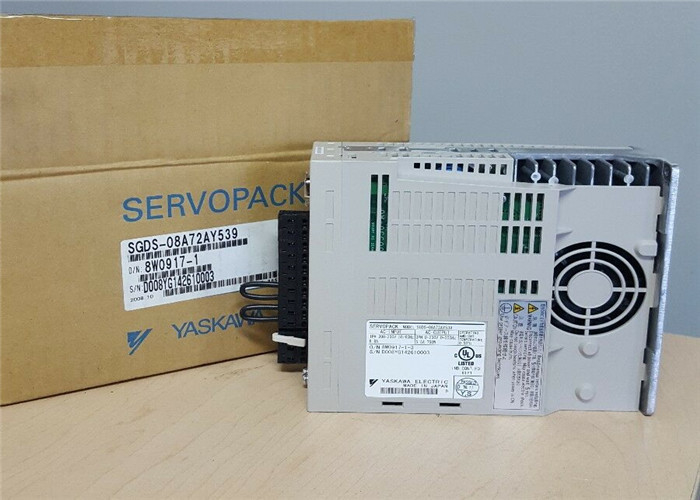

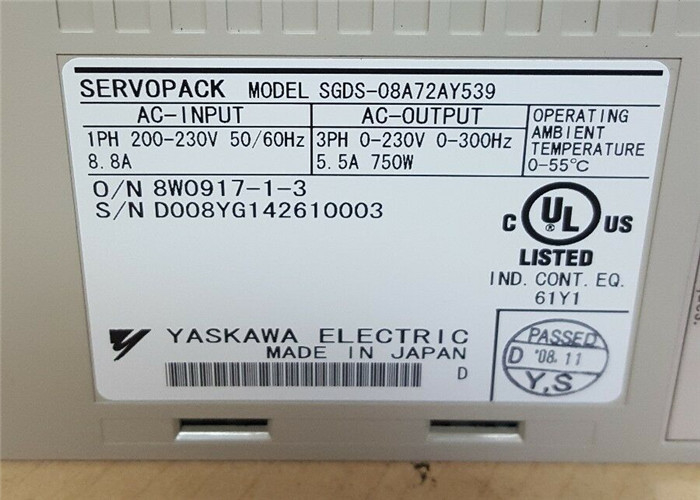

YASKAWA Servo Drives SGDS-08A72AY539 SERVOPACK OUTPUT 230V 5.5A 750W NEW SURPLUS

HHIMPORTANTHH Some instructions include the following abbreviation: {I.V.P. = } This signifies the Initial Value at Power-up regardless of the value when the printer was turned off. NOTE: To permanently save configuration settings in the printer’s configuration memory, you will need to send a ^JUS command at the end of the ZPL II script. (See ^JU on page 270) CHAPTER 2 9 ZPL II Basics An Example of a Basic Label This exercise is designed to guide you through the basic steps to create a common label which contains text and a bar code. Refer to Chapter 4, Introduction, for more information on how to set up your printer and how to enter ASCII text to send to your printer. Type the programming instructions (shown in bold) in the order given. An explanation of what each instruction does is in brackets [ ]. A printed example of the label is on the next page with arrows pointing to the different parts that make up the label and an indication of the ZPL II command that was used to create it. ^XA [^XA - Indicates start of label format.] ^LH30,30 [^LH - Sets label home position 30 dots to the right and 30 dots down from top edge of label.] ^FO20,10^AD^FDZEBRA^FS [^FO20,10 - Set field origin 20 dots to the right and 10 dots down from the home position defined by the ^LH instruction.] [^AD - Select font “D.”] [^FD - Start of field data.] [ZEBRA - Actual field data.] [^FS - End of field data.] ^FO20,60^B3^FDAAA001^FS [^FO20,60 - Set field origin 20 dots to the right and 60 dots down from the home position defined by the ^LH instruction.] [^B3 - Select Code 39 bar code.] [^FD - Start of field data for the bar code.] [AAA001 - Actual field data.] [^FS - End of field data.] ^XZ [^XZ - Indicates end of label format.]











Most Zebra printers come standard with 8 bitmapped fonts and one scalable font. Additional downloadable bitmapped and scalable fonts are also available. Character size and density (how dark it appears) depends on the density of the printhead and the media used. Three different printheads are available: 6 dots/mm, 8 dots/mm and 12 dots/mm. Internal bitmapped fonts can be magnified from 2 to 10 times their normal (default) size. The magnification factor is in whole numbers. Therefore, if the normal size of a bit mapped font is 9 dots high and 5 dots wide, a magnification factor of 3 would produce a character of 27 dots high and 15 dots wide. Height and width can be magnified independently
