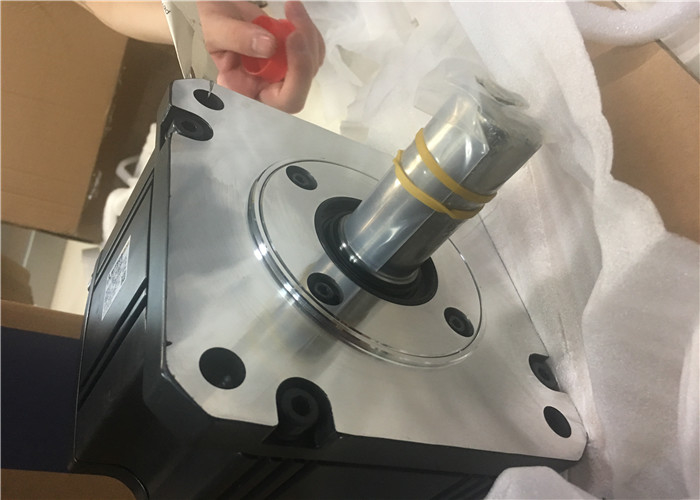

Industrial Servo Motor HC-SFS202 Servo Motor MITSUBISHI 2KW 2000R/min

Large Image :  Industrial Servo Motor HC-SFS202 Servo Motor MITSUBISHI 2KW 2000R/min

Product Details:

Place of Origin: Japan
Brand Name: Mitsubishi
Certification: CE
Model Number: HC-SFS202

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: In Stock
Payment Terms: T/T / Paypal
Supply Ability: 50
Contact Now
Detailed Product Description
Category: Industiral Servo Motor Model 1.: HC-SFS202
Power: 2Kw Rated Current (A): 6.1
Rated Rotation Speed: 2000rpm Brand: Mitsubishi
High Light:

ewing machine servo motor

,

electric servo motor

Industrial Servo Motor HC-SFS202 Servo Motor MITSUBISHI 2KW 2000R/min





Description



Mitsubishi - MELSERVO HC - HC-SFS202









Specifications:

  • Manufacturer: Mitsubishi

  • Servo Motor, 2.0KW (HCSFS202)

  • Series: MELSERVO HC

Servo Motor Series HC-SFS series (medium to medium capacity)
Model



Specifications

 Servo Motor Type HC-SFS HC-SFS202
Servo amplifier Model name (Note 9) MR-J2S- MR-J2S-200A
MR-J2S-200B
MR-J2S-200CP
Servo
Motor		 Power supply capacity (Note 2) (kVA) 3.5
Continuous characteristic Rated output capacity(KW) 2.0
Rated torque (N · m) 9.55
Maximum torque (N · m) 28.5
Rated rotational speed (r / min) 2,000
Maximum rotation speed (r / min) 2,500
Instantaneous permissible rotational speed (r / min) 2,875
Power rate at continuous rated torque (kW / s) 21.6
Rated current (A) 11.0
Maximum current (A) 33.0
Frequency of regenerative braking (times / minute) (Notes 3 and 4) 64
(Inertia moment) 42.5 (52.5)
Recommended load inertia moment ratio (Note 6) 15 times or less the inertia moment of the servo motor (Note 4)
Speed ​​and position detector J (× 10-4 kg · m2) Absolute-incremental common 17-bit encoder
(resolution per revolution of servo motor: 131072p / rev)
Equipment Oil chamber
rescue Full cooling and natural cooling (Protection method IP65) (Note 5)
Environment Main Temperature 0 to 40 ° C (not to be frozen), Storage: -15 to 70 ° C (not to be frozen)
Weekly humidity 80% RH or less (No condensation), Storage: 90% RH or less (No condensation)
atmosphere Indoors (no direct sunlight),
corrosive gas, flammable gas, oil mist, dust free
The mass (kg) () 12.0 (18.0)


Motor



Servo motor model

HC-MFS053

(B)

HC-MFS13

(B)

HC-MFS23

(B)

HC-MFS43

(B)

HC-MFS73

(B)
Servo amplifier model MR-J2S-10A/B MR-J2S-10A/B MR-J2S-20A/B MR-J2S-40A/B MR-J2S-70A/B
Power facility capacity [kVA] 0.3 0.3 0.5 0.9 1.3

Continuous

characteristics

 Rated output 50[W] 100[W] 200[W] 400[W] 750[W]
Rated torque 0.16[Nm] 0.32[Nm] 0.64[Nm] 1.3[Nm] 2.4[Nm]
Maximum torque 0.48[Nm] 0.95[Nm] 1.9[Nm] 3.8[Nm] 7.2[Nm]
Rated rotation speed [rpm] 3000 3000 3000 3000 3000
Maximum rotation speed 4500 4500 4500 4500 4500
Permissible instantaneous rotation speed

5175

[rpm]

5175

[rpm]

5175

[rpm]

5175

[rpm]

5175

[rpm]
Rated current 0.85 [A] 0.85 [A] 1.5 [A] 2.8 [A] 5.1 [A]
Maximum current 2.6 [A] 2.6 [A] 5.0 [A] 9.0 [A] 18 [A]
Weight [kg] 0.4 0.53 0.99 1.45 3







What is Details of Our Mitsubishi Parts?

  • All the Mitsubishi Parts are new and original with package.
  • Warranty time: 180 or 360 days.
