New Schneider 140CPU11303 Industrial Control System with 4 slot rack and power supply
Specifications
Detailed description
BatteryGuy 3 volt 1800 mAh replacement battery for Modicon 140CPU11303
Only $14.75.
Next day nationwide delivery available.
It meets or exceeds the Modicon 140CPU11303 PLC specifications defined by the Original Equipment Manufacturer at a much lower price.
(This is one Battery – Please verify quantity needed for your application before ordering)
BatteryGuy PLC and Industrial Computer Batteries are Manufactured to Meet or Exceed the Quality of the Original Equipment Manufacturer. Only the Highest Grade of Materials are Used to Manufacture our Batteries, with Safety and Performance in Mind. Please be Aware of Online Pirate Companies who Make Their Own Batteries with Insufficient Safety Circuits and Low Grade Materials. Insufficient Circuits and Parts Can Result in a Possible Fire or Explosion in Some Cases.
Chemistry: Lithium
Dimensions: 0.68" Diameter X 1.34" Long
Connector Type: Wire Leads with Connector
Description: 1 Cell Lithium Battery
Works With: Modicon Quantum Series programmable logic controllers and industrial computers
Shelf Life: Approx. 10 Years
Stable voltage and broad temperature range: (-40° to +80°C)
140DAI75300
140DAO85300
140DAO84000
140DAO84210
140DDO35300
140DDO84300
140DRA84000
140EHC10500
140EHC20200
140ERT85410
140NOM21100
140XTS00200
140XBE10000
140XCA71703
140XCA71706
140XCP51000
416NHM30030A
490NAA27102
490NAA27103
490NRP25300
490NRP95400 RIO
490NOR00003
520422000
975750000 RIO
990NAA26320
990NAD23000
990NAD21110
990XCP98000 Quantum
ASMBII003(15M)
ASMBII004(43M)
MA0185100
MA0186100
MA0329001
TCSESM043F2CU0 ConneXium
TCSESM083F2CU0 ConneXium
TCSESM083F2CS0 ConneXium
TCSESM163F2CU0 ConneXium
TCSESM243F2CU0 ConneXium

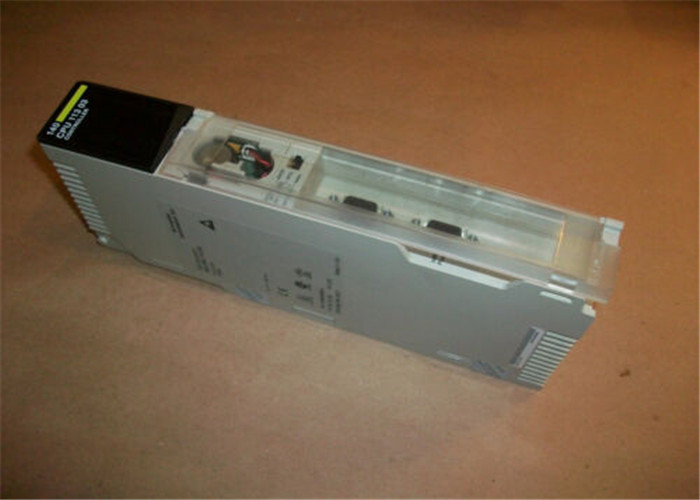

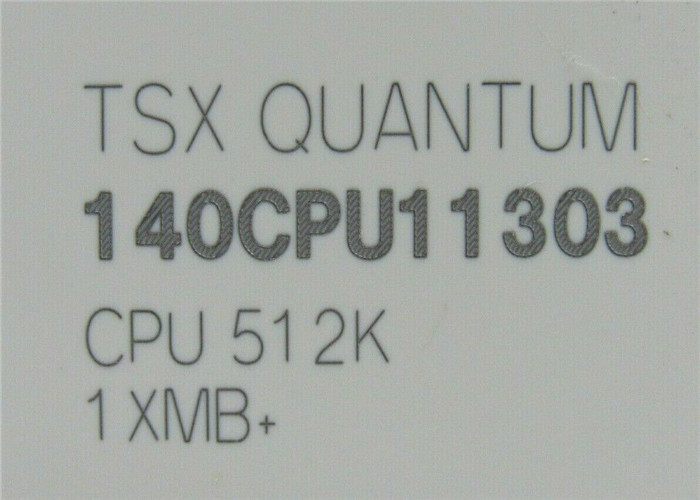

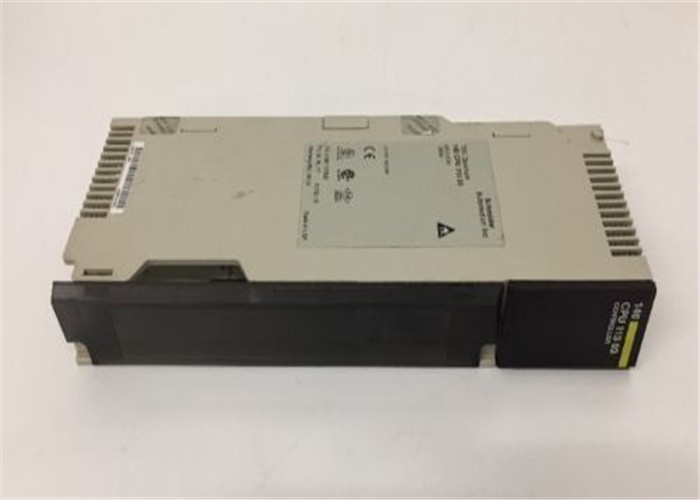

The Schneider Automation 140-CPU-113-03 is a Modicon Quantum 80186 Concept Processor with 1 Modbus plus and 2 Modbus RS232. Its total memory is 512K. It has an internal RAM capability of 368 kB of processing power, with a clock frequency of 20 MHz. It can be used with a 2 NOM, NOE, CR or NMS communications module. For a distributed I/O system with 3 networks, the CPU requires the use of a 140NOM21x00 Option processor. Its 984 type memory is max 16k words. This product can work with Concept or ProWORX 32 software, and does not use a mathematical co-processor. It is recommended that its operating altitude remains under 5000 meters. This product is CUL and FM Class 1 Division 2 certified. Its ambient air temperature during operating conditions should remain between 0 to 60 °C.
The Schneider Electric 140CPU11303 has two 3-position front panel slide switches. The left switch can be used for memory protection when in the top position, and no member protection when in the bottom two positions. The right switch is used to select the communication parameters for the Modbus RS-232 ports. The top position assigns ASCII functionality to the port. The middle position assigns a remote terminal unit to the port. The bottom position gives you the ability to assign communication settings to the port in the software. All Quantum CPUs come with a 9-pin RS-232C connector that supports the Modicon Modbus comms protocol. Two rotary switches are located on the rear of the module. They are used for setting the Modbus Plus node and Modbus port addresses. The top switch (SW1) sets the upper digit in tens of the address; the bottom switch (SW2) sets the lower digit ones of the address. If 0 or an address higher than 64 is chosen, the Modbus + LED will stay “on” to indicate the selection of an invalid address.
Manufacturer Schneider Electric
Series Modicon Quantum
Warranty 2 year
Module format Standard
Range of product Modicon Quantum automation platform
Product or component Processor
type
Software name Concept
ProWORX 32
Processor name 80186
Mathematical coprocessor Without
Clock frequency 20 MHz
Memory description Internal RAM 368 kB
Exact time for 1 Kinstruction 0.3...1.4 ms LL984
Watchdog timer 250 ms
Clock drift +/-8 s/day at 0...60 °C
I/O words 64 I/64 O remote
64 I/64 O max local
30 I/32 O distributed
I/O words/network 500 I/500 O distributed
Drops/Network 63 distributed
Number of drops 31 remote
Number of network 3 distributed
2 remote
Battery type Lithium 7 µA 210 µA
Battery capacity 1.2 AH
Battery life 10 yr
Number of port 1 Modbus Plus
1 Modbus RS232
Communication module processor 2 NOM, NOE, CR, NMS
Switch function Without key switch
Marking CE
Bus current requirement 790 mA
