Main
RANGE OF PRODUCT

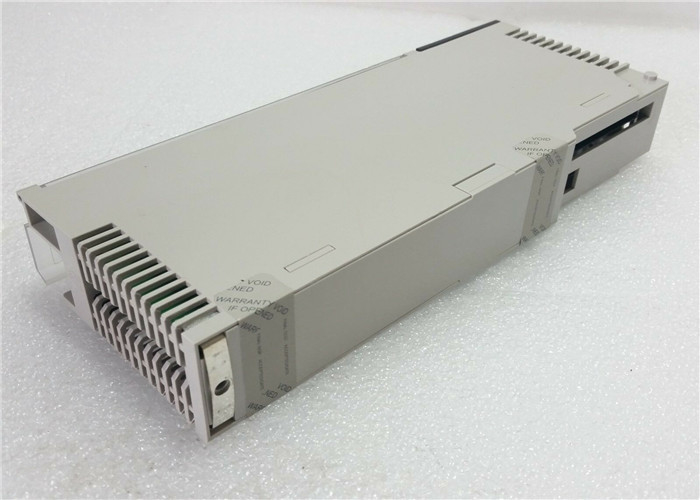

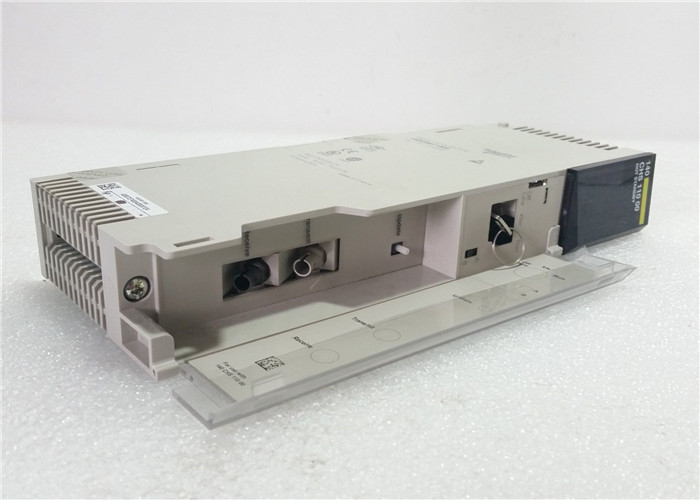

Modicon Quantum automation platform
PRODUCT OR COMPONENT TYPE

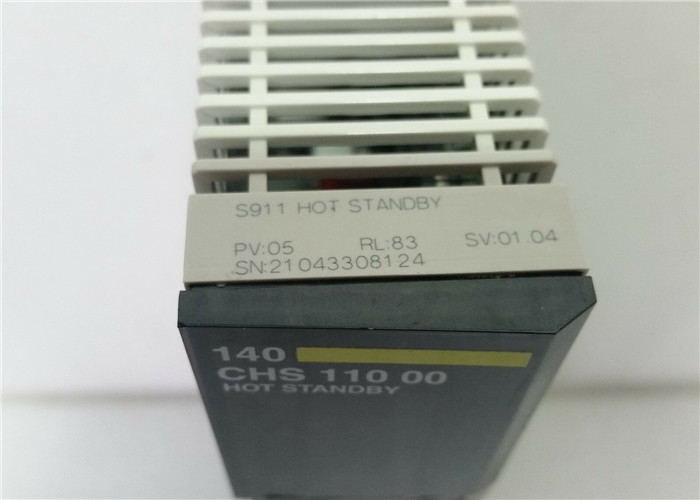

Hot standby module
SOFTWARE DESIGNATION
Concept >= V2.0
ProWORX 32 NxT V2.0
Complementary
PRODUCT COMPATIBILITY
All 140CPU43412A/534 with IEC language
All legacy 140CPU with LL984 language
INPUT/OUTPUT TYPE
Quantum
800 Series
Sy/Max (remote I/O only)
TRANSMISSION RATE
10 Mbit/s
TRANSMISSION SUPPORT MEDIUM
Fiber optic 9.84 ft (3 m)
SWITCHING TIME
13…48 ms
ELECTRICAL CONNECTION
1 connector RJ45 for fiber optic receiver
1 connector RJ45 for fiber optic transmitter
LOCAL SIGNALLING
1 LED amber module in standby
1 LED green communication with I/O module
1 LED green control process
1 LED green ready module
1 LED red communication error
BUS CURRENT REQUIREMENT
700 mA
MODULE FORMAT
Standard
PRODUCT WEIGHT
2.34 lb(US) (1.06 kg)
Environment
RFI IMMUNITY
27…1000 MHz 9.14 V/yd (10 V/m) conforming to IEC 60801-3
RESISTANCE TO ELECTROSTATIC DISCHARGE
4 kV contact
8 kV air
AMBIENT AIR TEMPERATURE FOR OPERATION
32…140 °F (0…60 °C)
AMBIENT AIR TEMPERATURE FOR STORAGE
-40…185 °F (-40…85 °C)
RELATIVE HUMIDITY
95 % without condensation
OPERATING ALTITUDE
<= 16404.2 ft (5000 m)
Ordering and shipping details
CATEGORY
18150 – QUANTUM CONTROLLERS,HSBY,COMM.
DISCOUNT SCHEDULE
PC21
GTIN
00785901104339
NBR. OF UNITS IN PKG.
1
PACKAGE WEIGHT(LBS)
2.21
RETURNABILITY
N
COUNTRY OF ORIGIN
FR
