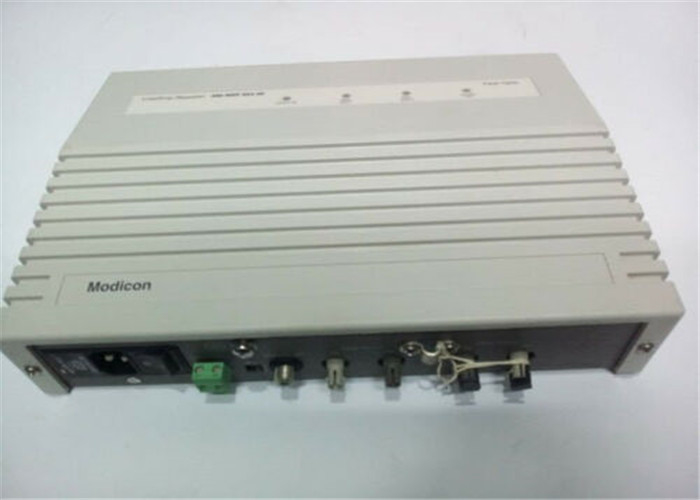

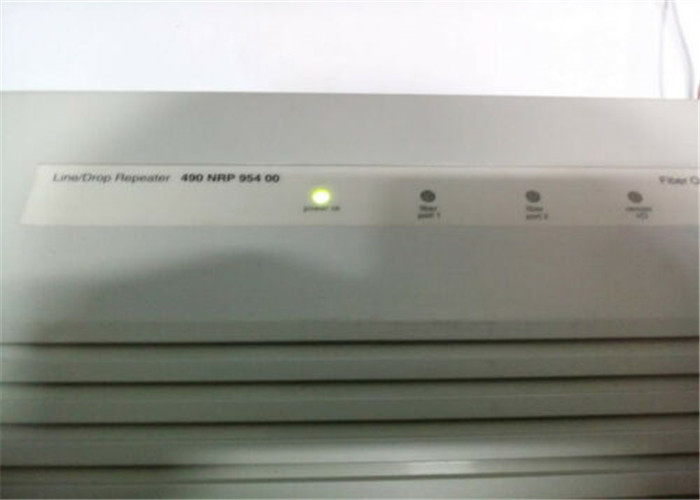

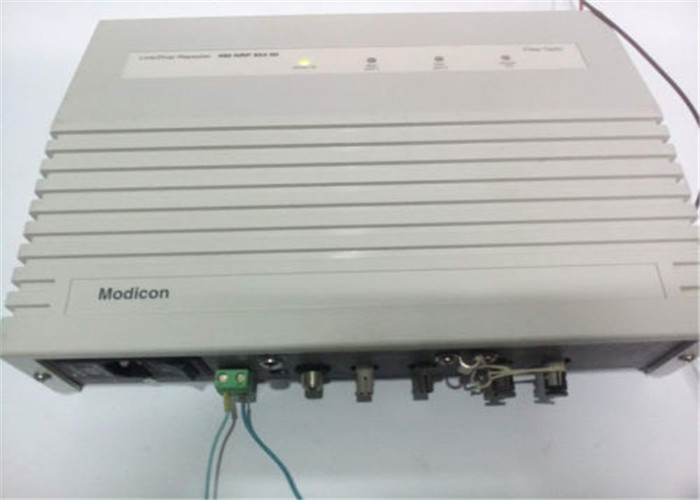

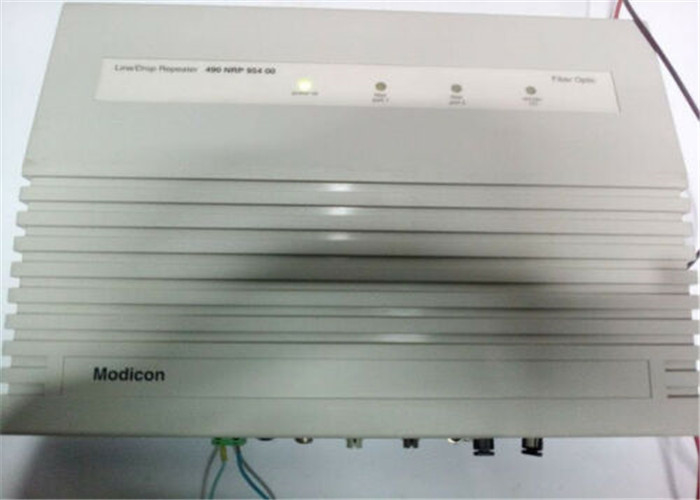

490NRP25300 Modicon FR Fiber Line Drop Repeater Fiber Optic Repeater Module

For series not shown in chart refer to the switch wiring diagram.
2 Equipment ground kits (Al/Cu) are factory installed standard in 30–200 A Series F NEMA Type 4/4X/5 (stainless steel), 12 and 12K. Equipment ground kits are
standard factory installed on all receptacle switches and all enclosure Series F 30–200 A, four- and six-pole switches.
3 See page 57 through page 61 for safety switch series.
4 H2212AWK accepts GTK03 or GTK03C. H3612A or AWK accepts GTK03C. H3612 and H3612RB accepts GTK0610. HU3612AWK accepts GTK03C. HU3612A
accepts GTK0610C. HU3612RB accepts GTK0610 or GTK0610C.
5 Optional copper equipment grounding kit for the four- and six-pole 30 A F Series: H461DS, H461AWK, HU461DS, HU661DS and HU661AWK accepts GTK03C.
HU461AWK accepts GTK0610C.
6 Two required if equipment grounding conductors are run in parallel.





Cover Viewing Window
The optional cover viewing window is positioned over the blades to allow visual verification of the ON-OFF status. Available on 30 through 1200 A
heavy duty switches.
• UL Listed
• Factory installed only
• Add a VW suffix to the catalog number for factory installation
• Not available on NEMA Type 4X fiberglass reinforced polyester,
KrydonTM or NEMA Type 7/9 enclosures
Electrical Interlock Kits
Electrical interlocks for heavy duty safety switches, 30 through 1200 A, are available factory installed or in kit form for field installation. A pivot arm
operates from the switch mechanism, breaking the control circuit before the





main switch blades break.
• UL Listed, factory or field installed
