Product Details:
Payment & Shipping Terms:
|
| Range Of Product: | Modicon Quantum Automation Platform | Country Of Origin: | France |
|---|---|---|---|
| Brand: | Schneider | PN: | 140NOL91100 |
| Condition: | Brand New | Type: | QUANTUM PROCESSOR |
| MOQ: | 1 PCS | Warranty: | 12 Months |
| High Light: | modicon quantum processor,modicon quantum cpu |
||
| range of product |

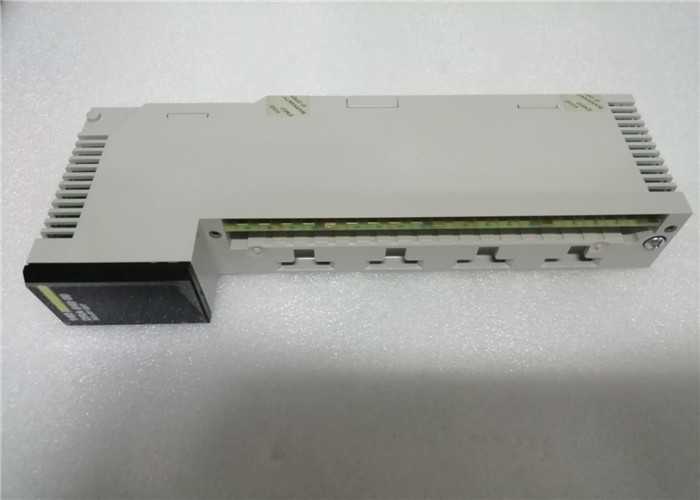

Modicon Quantum automation platform
|
|
|---|---|---|
| product or component type |
Ethernet network TCP/IP module
|
|
| concept |
Transparent Ready
|
|
| web server |
Class B30
|
|
| web services |
Diagnostics via predefined web pages
Rack viewer Data Editor (via PC terminal) |
|
| communication service |
SNMP network management
Bandwidth management Global Data I/O scanning Modbus TCP messaging FDR server |
|
| communication port protocol |
Ethernet Modbus TCP/IP
|
|
| physical interface |
MT/RJ - 100BASE-FX fiber optic
RJ45 - 10BASE-T/100BASE-TX twisted pair |
|
| transmission rate |
10/100 Mbit/s
|
| redundancy |
Yes hot standby redundant architecture
|
|
|---|---|---|
| supply |
Via the power supply of the rack
|
|
| marking |
CE
|
|
| local signalling |
1 LED10 Mbps or 100 Mbps data rate (10 MB/100 MB):
1 LEDcollision detection (Coll): 1 LEDdownload mode (Kernel): 1 LEDEthernet module fault (Fault): 1 LEDEthernet network status (RUN): 1 LEDfull-duplex mode (Fduplex): 1 LEDmodule ready (Ready): 1 LEDnetwork active (Link): 1 LEDrack operational (Active): 1 LEDtransmission/reception activity (TxAct/RxAct): |
|
| current consumption |
750 mA at 5 V DC
|
|
| module format |
Standard
|
|
| net weight |
0.345 kg
|
| IP degree of protection |
IP20
|
|
|---|---|---|
| product certifications |
CUL
UL 508 |
|
| standards |
CSA C22.2 No 142
FM Class 1 Division 2 |
|
| resistance to electrostatic discharge |
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2 |
|
| resistance to electromagnetic fields |
10 V/m 80...1000 MHz conforming to IEC 801-3
|
|
| ambient air temperature for operation |
0…60 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| relative humidity |
95 % without condensation
|
|
| operating altitude |
<= 4500 m
|
Similar Model Products
| Analog I/O modules | Discrete I/O modules | ||
| 140ACI03000 | 140DDI15310 | 140DAI55300 | 140DAO84210 |
| 140ACI04000 | 140DDI35300 | 140DAI74000 | 140DAO84220 |
| 140ACO02000 | 140DDI35310 | 140DAI75300 | 140DAO85300 |
| 140ACO13000 | 140DDI36400 | 140DSI35300 | 140DRA84000 |
| 140AII33000 | 140DDI67300 | 140DDO15310 | 140DRC83000 |
| 140AII33010 | 140DDI84100 | 140DDO35300 | 140DVO85300 |
| 140AIO33000 | 140DDI85300 | 140DDO35301 | 140DDM39000 |
| 140AMM09000 | 140DAI34000 | 140DDO35310 | 140DDM69000 |
| 140ARI03010 | 140DAI35300 | 140DDO36400 | 140DAM59000 |
| 140ATI03000 | 140DAI45300 | 140DDO84300 | 140DII33000 |
| 140AVI03000 | 140DAI54000 | 140DDO88500 | 140DIO33000 |
| 140AVO02000 | 140DAI54300 | 140DAO84000 | 140DAO84010 |
(1) CPUs updated with the Unity Pro firmware.
(2) The addition of a complete Ethernet RIO drop function is available for these CPUs with
Unity Pro u V7.0.
1 Primary ring, copper/fiber optic medium
3 Ethernet head adaptor 140NOA61100 installed in the Quantum™ rack.
4 ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)
5 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)
6 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)
7 Modicon™ STB Ethernet DIO (3) (4)
8 Connection to Ethernet DIO device cloud, copper medium only
9 Ethernet DIO device cloud (3)
10 Ethernet communication module 140CPU31110
11 Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)
