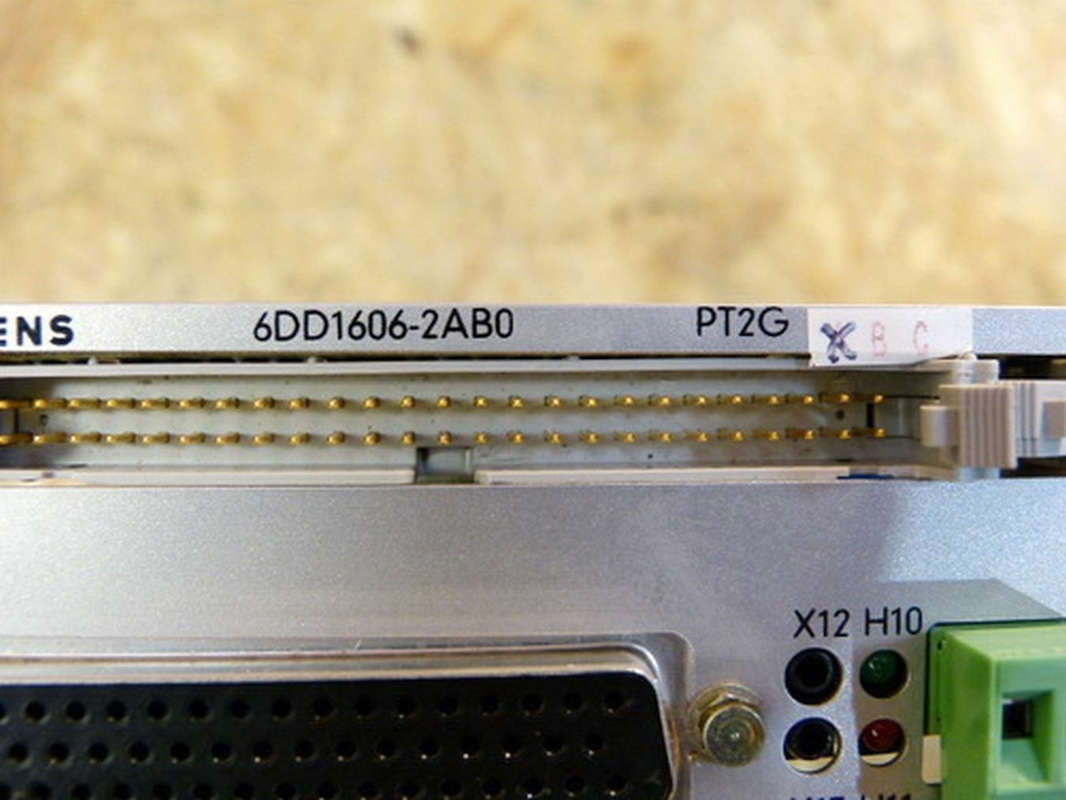

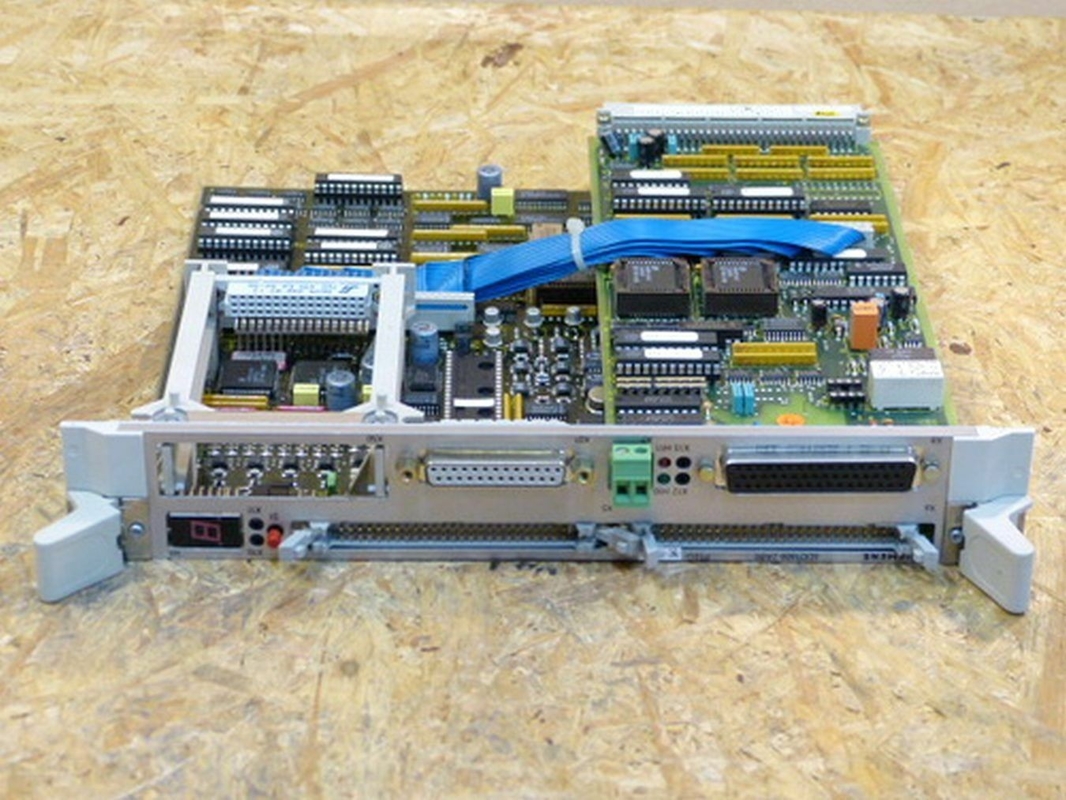

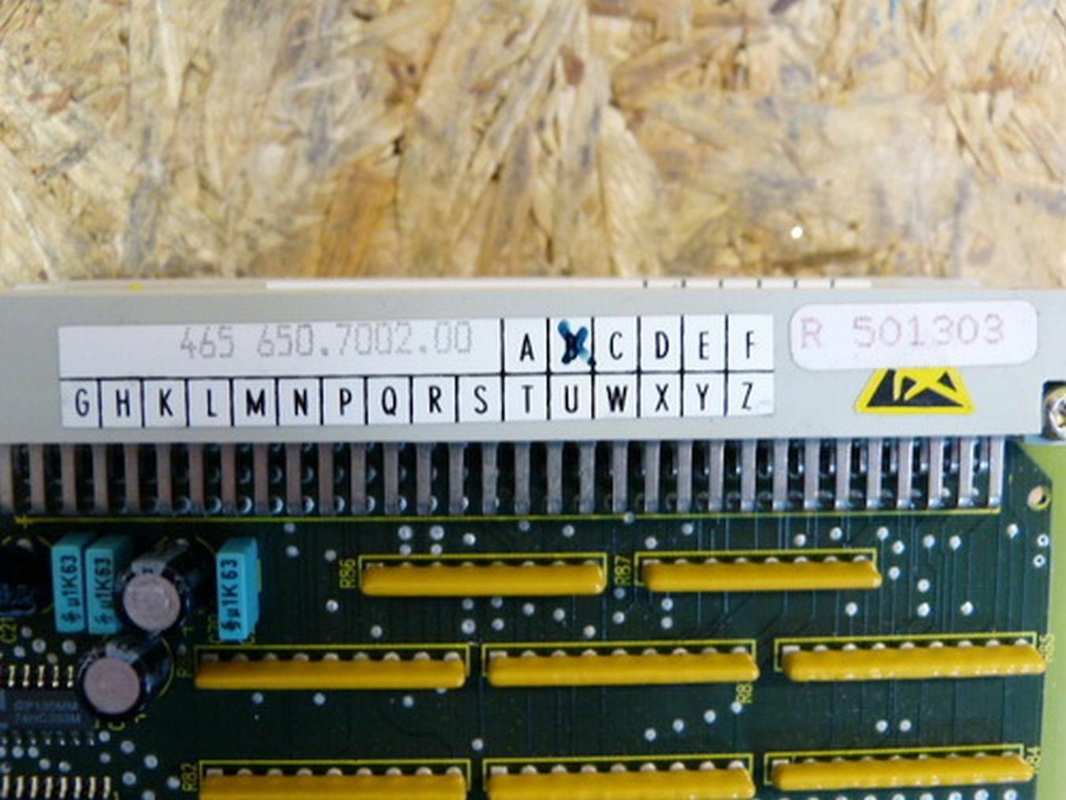

Siemens simadyn D process module pt2g Control Circuit Board 6DD1606-2AB0

Siemens simadyn D process module pt2g Control Circuit Board 6DD1606-2AB0

Warning
Risk of personal injury and material damage. In potentially explosive atmospheres, there is a risk of personal injury or damage to material if you disconnect connectors when the system is in RUN.
In potentially explosive atmospheres, always switch off the power supply to LOGO! and its components before you disconnect any connectors.

It is issued with the CE Certificate of Conformity. It is compliant with VDE 0631 and IEC 61131-2 and interference-proof to EN 55011, Limit Class B.
Marine certification has been requested.
ABS (American Bureau of Shipping)
BV (Bureau Veritas)
DNV (Det Norske Veritas)
GL (Germanischer Lloyd)
LRS (Lloyds Register of Shipping)
Class NK (Nippon Kaiji Kyokai)
It is therefore suitable for use both in industry and inthe domestic area.

General guidelines
Please note the following guidelines for the installation and  wiring of your LOGO! :Always ensure that the wiring of your LOGO! is compliant
with current rules and standards. Also, conformwith all national and regional regulations when youinstall and operate the devices. For information on standardsand regulations that apply to your specific case,
contact your local authorities.
Always use cables with an appropriate conductor crosssectionsfor the relevant current. You can wire theLOGO! with cable conductor cross-sections from1.5 mm2 to 2.5 mm2; see Chapter 2.3.
Do not exceed the screw torque of the terminals. Themaximum torque is: 0.5 N/m, see Chapter 2.3.
Keep the cabling as short as possible. If longer cablesare necessary, you should use shielded versions. Youshould always route your cables in pairs: i.e. one neutralconductor plus one phase conductor or signal line.
Always keep separate:
– The AC wiring
– High-voltage DC circuits with high-frequency switchingcycles
– Low-voltage signal wiring.
Ensure that the wires are installed with an appropriatestrain relief.
Provide a suitable lightning surge arrester for cablesinstalled in relevant areas of hazard
