Product Details:
Payment & Shipping Terms:
|
| Range Of Product: | Modicon Premium | Country Of Origin: | France |
|---|---|---|---|
| Brand: | Schneider | PN: | TSX3721001 |
| Output Current: | 0.5A | Net Weight: | 1.72 Kg |
| Deliver: | 3days | Warranty: | 1 Year |
| High Light: | modicon quantum processor,quantum unity processor |
||

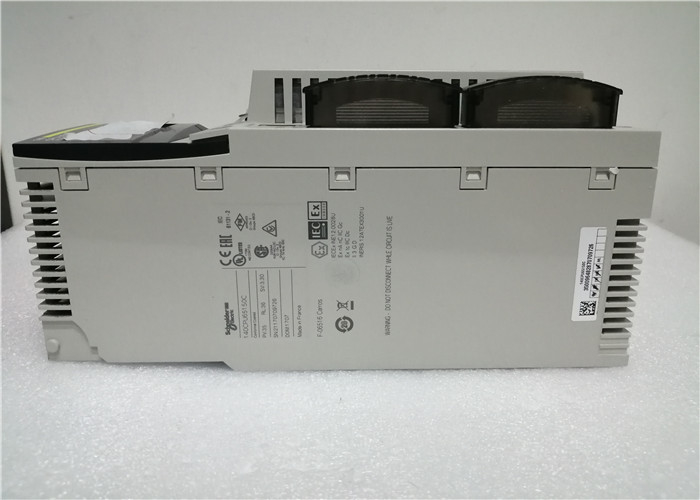

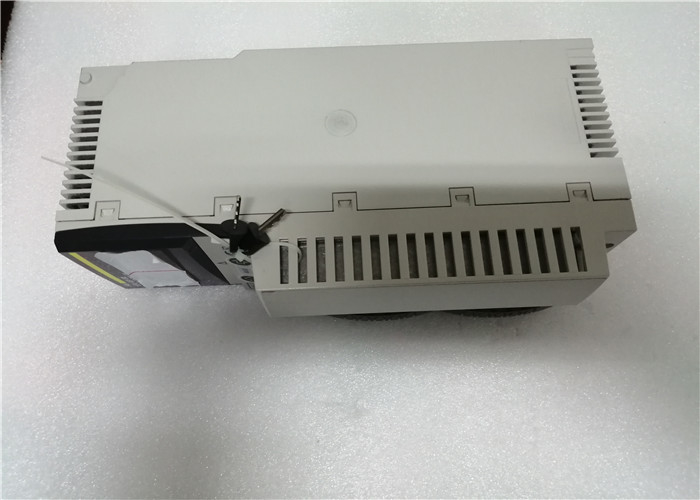

Schneider Electric TSX3721001 TSX Micro 37 21 22 PLC configurations
| range of product |
Modicon TSX Micro automation platform
|
|
|---|---|---|
| product or component type |
Modular base controller
|
|
| primary voltage |
100...240 V 90…264 V AC
|
|
| input current |
2 mA 60 A
|
|
| immunity to microbreaks |
20 ms
|
|
| output current |
0.5 A
|
| number of slots |
3
|
|
|---|---|---|
| integrated connection type |
1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s
1 Modbus Modbus RTU 19.2 kbit/s |
|
| realtime clock |
With
|
|
| memory description |
Flash 15 Kwords data
Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
|
| maximum size of object areas |
128 %KWi constant words
256 %Mi 1 %MWi internal words |
|
| execution time per instruction |
0.13 µs Boolean without PCMCIA card
4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
|
| execution time for 1 Kinstruction |
5.88 100 % Boolean without PCMCIA card
0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
|
| application structure |
16 event tasks
1 master task 1 fast task |
|
| system overhead |
1.6 ms for master task
|
|
| protection type |
Overload protection
Short-circuit |
|
| total useful secondary power |
16 W
|
|
| electromagnetic compatibility |
Electrostatic discharge conforming to IEC 1000-4-2 level 3
Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2 |
| ambient air temperature for operation |
0…60 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-25…70 °C
|
|
| relative humidity |
10…95 % without condensation for operation
5…95 % without condensation for operation |
|
| operating altitude |
0...2000 m
|
|
| width |
341.4 mm
|
|
| height |
151 mm
|
|
| depth |
152 mm
|
|
| net weight |
1.72 kg
|
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
