Product Details:
Payment & Shipping Terms:
|
| Range Of Product: | Modicon Premium | Country Of Origin: | France |
|---|---|---|---|

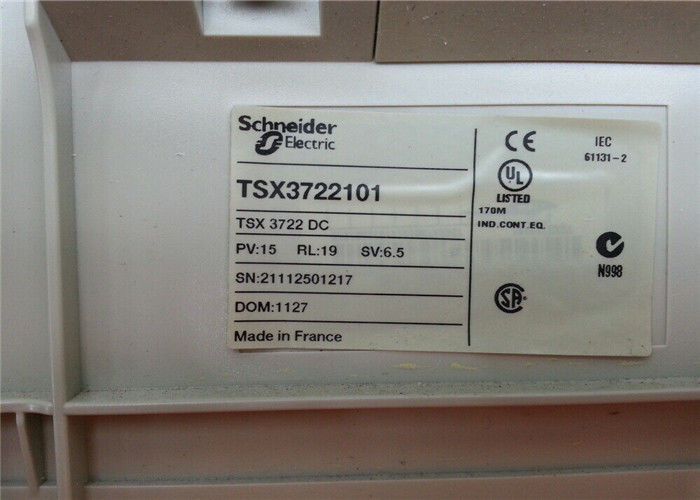

| Brand: | Schneider | PN: | TSX3722101 |
| Number Of Slots: | 3 | Net Weight: | 1.75kg |
| Warranty: | 1 Year | ||
| High Light: | quantum unity processor,modicon quantum cpu |
||

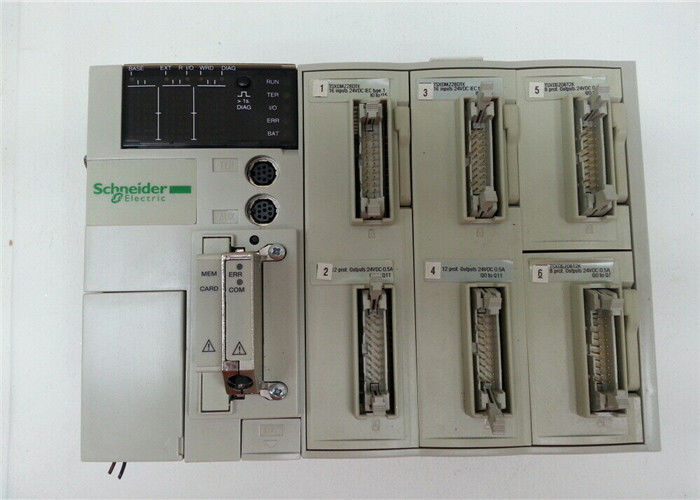

Schneider Electric TSX3722101 TSX Micro 37 21 22 PLC configurations
| range of product |
Modicon TSX Micro automation platform
|
|
|---|---|---|
| product or component type |
Modular base controller
|
|
| primary voltage |
24 V 19.2…30 V DC
|
|
| input current |
2 mA 60 A
|
|
| immunity to microbreaks |
10 ms
|
| number of slots |
3
|
|
|---|---|---|
| analogue input type |
0...10 V 8
|
|
| analogue output type |
0...10 V 1
|
|
| counting input type |
Discrete incremental counter 1 10 Hz
Incremental 1 10 Hz |
|
| integrated connection type |
1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s
1 Modbus Modbus RTU 19.2 kbit/s |
|
| realtime clock |
With
|
|
| memory description |
Flash 15 Kwords data
Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
|
| maximum size of object areas |
1 %MWi internal words
128 %KWi constant words 256 %Mi |
|
| execution time per instruction |
0.13 µs Boolean without PCMCIA card
4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
|
| execution time for 1 Kinstruction |
5.88 100 % Boolean without PCMCIA card
4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
|
| application structure |
1 master task
16 event tasks 1 fast task |
|
| system overhead |
2.3 ms master task
|
|
| protection type |
Short-circuit
Overload protection |
|
| total useful secondary power |
16 W
|
|
| electromagnetic compatibility |
Electrostatic discharge IEC 1000-4-2 level 3
Electromagnetic field immunity test IEC 1000-4-3 level 3 Resistance to fast transient IEC 1000-4-4 level 3 Immunity to impulse waves IEC 1000-4-5 Damped oscillatory wave IEC 1000-4-12 Immunity to electromagnetic interference IEC 61131-2 |
| ambient air temperature for operation |
32…140 °F (0…60 °C)
|
|
|---|---|---|
| ambient air temperature for storage |
-13…158 °F (-25…70 °C)
|
|
| relative humidity |
10…95 % without condensation for operation
5…95 % without condensation for operation |
|
| operating altitude |
0...6561.68 ft (0...2000 m)
|
|
| width |
13.44 in (341.4 mm)
|
|
| height |
5.94 in (151 mm)
|
|
| depth |
5.98 in (152 mm)
|
|
| net weight |
3.86 lb(US) (1.75 kg)
|
| Category |
22556 - TSX MICRO, PL7 MICRO & ACCESS
|
|
|---|---|---|
| Discount Schedule |
PC14
|
|
| GTIN |
00785901871064
|
|
| Package weight(Lbs) |
1.75 kg (3.86 lb(US))
|
|
| Returnability |
No
|
|
| Country of origin |
FR
|
| California proposition 65 |
WARNING: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Not applicable, out of EU RoHS legal scope
|
|
| China RoHS Regulation | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
|
|
|
| Warranty |
18 months
|
|---|
