Product Details:
Payment & Shipping Terms:
|
| Range Of Product: | Modicon Premium | Country Of Origin: | France |
|---|---|---|---|
| Brand: | Schneider | PN: | TSXAEN101 |
| Number Of Slots: | 3 | Net Weight: | 1.75kg |
| High Light: | modicon quantum processor,quantum unity processor |
||

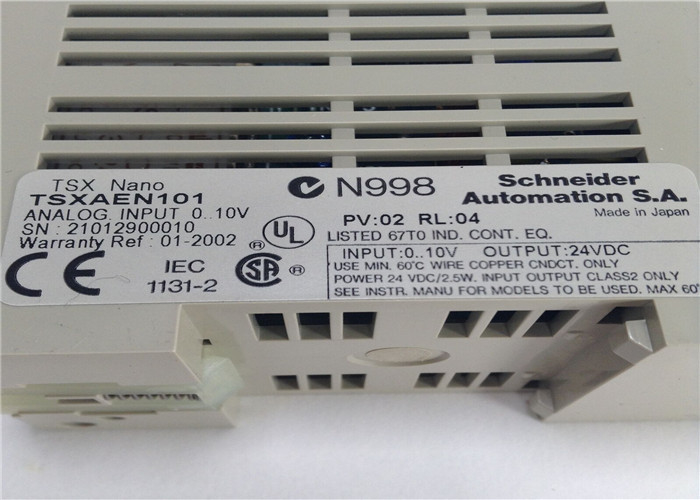

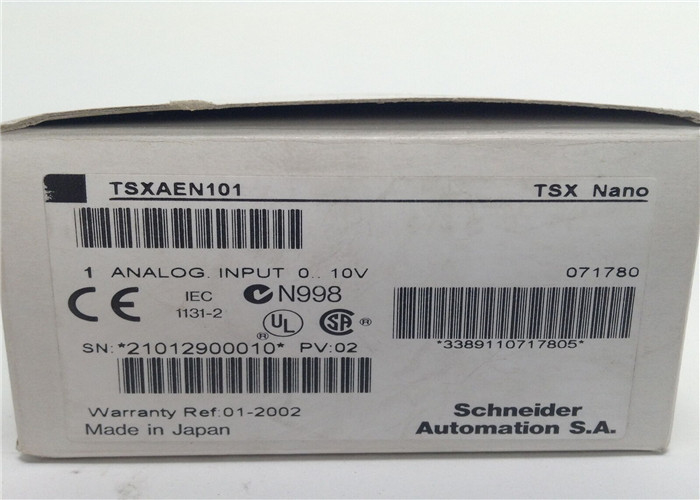

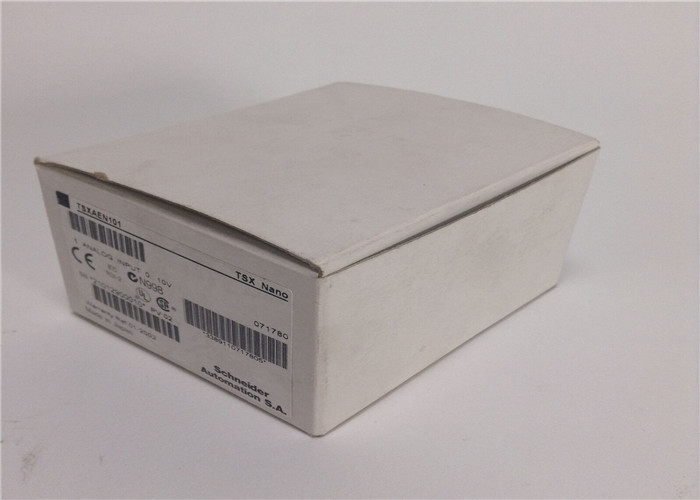

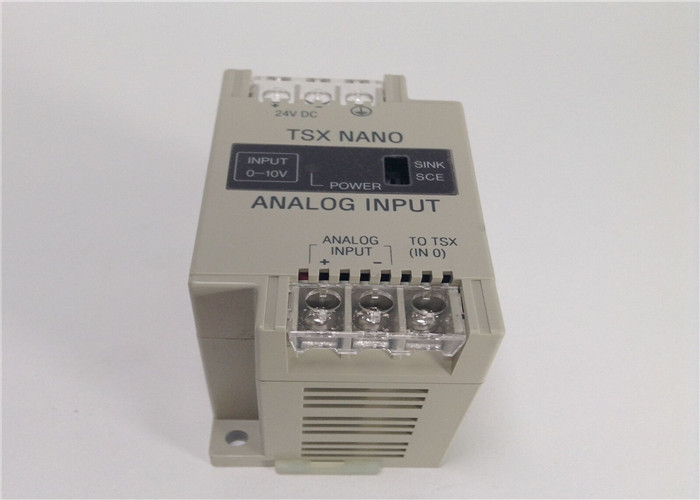

Schneider Electric TSXAEN101 TSX-AEN ANALOG I O INPUT 0 to 10V
| Warranty |
18 months
|
|---|
| range of product |
Modicon TSX Micro automation platform
|
|
|---|---|---|
| product or component type |
Modular base controller
|
|
| primary voltage |
24 V 19.2…30 V DC
|
|
| input current |
2 mA 60 A
|
|
| immunity to microbreaks |
10 ms
|
| number of slots |
3
|
|
|---|---|---|
| analogue input type |
0...10 V 8
|
|
| analogue output type |
0...10 V 1
|
|
| counting input type |
Discrete incremental counter 1 10 Hz
Incremental 1 10 Hz |
|
| integrated connection type |
1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s
1 Modbus Modbus RTU 19.2 kbit/s |
|
| realtime clock |
With
|
|
| memory description |
Flash 15 Kwords data
Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
|
| maximum size of object areas |
1 %MWi internal words
128 %KWi constant words 256 %Mi |
|
| execution time per instruction |
0.13 µs Boolean without PCMCIA card
4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
|
| execution time for 1 Kinstruction |
5.88 100 % Boolean without PCMCIA card
4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
|
| application structure |
1 master task
16 event tasks 1 fast task |
|
| system overhead |
2.3 ms master task
|
|
| protection type |
Short-circuit
Overload protection |
|
| total useful secondary power |
16 W
|
|
| electromagnetic compatibility |
Electrostatic discharge IEC 1000-4-2 level 3
Electromagnetic field immunity test IEC 1000-4-3 level 3 Resistance to fast transient IEC 1000-4-4 level 3 Immunity to impulse waves IEC 1000-4-5 Damped oscillatory wave IEC 1000-4-12 Immunity to electromagnetic interference IEC 61131-2 |
