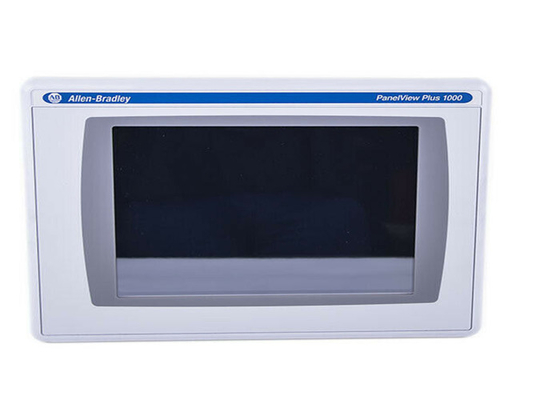

ALLEN BRADLEY 2711P-T10C4D1 PlanelView Plus 1000 terminal HMI touch screen New Original

ALLEN BRADLEY  2711P-T10C4D1 PlanelView Plus 1000 terminal HMI touch screen New Original

PanelView Plus 7 Graphic Terminals

Our Bulletin 2711P PanelView™ Plus 7 Graphic Terminals are available in standard and performance versions and offer display sizes from 4...19 in. with widescreen options. You can use FactoryTalk® View Machine Edition to build your application and help simplify configuration and strengthen your Integrated Architecture solution. These terminals include Ethernet connectivity and enable you to monitor applications from remote locations with VNC connectivity.

Features

• Uses Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
• Monitors applications from a remote location with VNC connectivity
• Uses an SD card to copy and restore the operator interface quickly
• Includes email and texting notification capabilities
• Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)

Standard Version

• Offers display sizes from 4...15 in. with wide screen and keypad options
• Offers 50 screens (25 replace and 25 on-top faceplate screens) and 500 alarms when used with FactoryTalk® Machine Edition 9.0 software with connection to one controller
• Offers Ethernet 1 x RJ45 10/100 MB Auto-MDI/MDI-X with IEEE 1588 support
• Features single or DLR Ethernet ports for network connectivity

Performance Version

• Offers display sizes from 7...19 in. with wide screen and keypad options
• Includes video playback support which provides advanced user help capabilities
• Includes RDP client feature to create thin client terminals
• Features Ethernet ports that support DLR, linear, or star network topologies
• Includes option for hygienic stainless steel 304 bezel
• Includes option for conformal coating on 9 in. and 12 in. DC touch-only displays

Stainless Steel Performance Version

• Offers brandless display sizes in 9 in. and 12 in.
• Features stainless steel 304 bezel
• Includes replaceable blue food-grade silicone gasket
• Offers conformal coating
• Features NSF certification - See the story
• UL IP69 rated and tested to IP69K according to ISO 20653

ArmorView Plus 7 Version

• Offers 12 in. display size in a fully enclosed panel
• Features IP66 protection for a cabinet-free HMI solution
• Includes option to individually customize buttons and switches
• Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface
