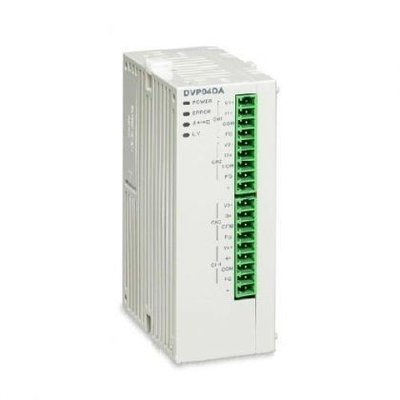

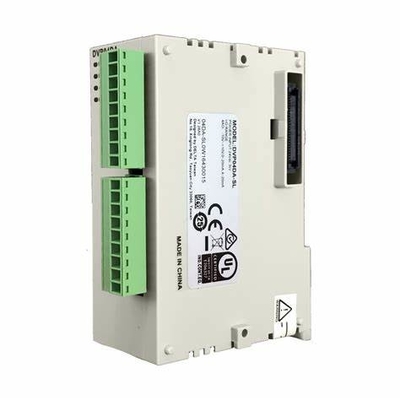

Delta Thin extension module left analog module Load Cell Modules PLC programmable controller DVP04DA-SL

: Large Image : Delta Thin extension module left analog module Load Cell Modules PLC programmable controller DVP04DA-SL

Product Details:

Place of Origin:	China
Brand Name:	Delta
Model Number:	DVP04DA-SL

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	100

Contact Now

Detailed Product Description

Manufacturer:	DELTA	Item:	DVP04DA-SL
Type:	Left-Side High-Speed Analog I/O Module	Series:	S Series Extension Module/Left-Side High-Speed Module
Resolution:	4 Groups Of Analog Output *1	Signal Range:	0 ~ 10V, -10 ~ 10V, 4 ~ 20mA, 0 ~ 20mA
Bit:	16-bit	Offers Single:	Channel On/Off Setup
Conversion Time:	250?s/point	Shipping Weight:	2 Kg
High Light:	plc power supply module , diode redundancy module

Delta left analog module Load Cell Modules PLC programmable controller DVP04DA-SL

The second-generation SA2 advanced thin mainframe provides greater program capacity and execution efficiency, and provides 100kHz high-speed output and high-speed counting with excellent motion control functions. Dvp-s series left and right modules are supported to provide user diversification module selectivity.

Feature:

4 point high speed pulse output: 2 point 100kHz, 2 point 10kHz

High speed pulse input at 8:100kHz at 2, 10kHz at 6, 50kHz at group A/B

Support biaxial in-motion (linear interpolation and circular interpolation)

Program capacity: 16k steps/data register: 10k words

Higher than the processing speed of PLC of the same level, LD: 0.54 refresh s, MOV: 3.4 refresh s

Built-in 1 group of rs-232 and 2 groups of rs-485 communication ports (master/slave stations), compatible with standard MODBUS ASCII/RTU communication protocol, supporting PLC Link function

Battery free calendar for up to half a month

Support dvp-s series left and right modules, provide users with a variety of optional modules

Application:

Printing machine;

Dyeing machine;

Container filling machine (formula application);

Production line workstation monitoring (PLC Link)

Technical specifications:

DVP - SE series

S-series host

S series digital/analog modules

S series special module/left high speed module

Quick Details:

Manufacturer: DELTA

DVP04DA-SL

Left-Side High-Speed Analog I/O Module

S Series Extension Module/Left-Side High-Speed Module

4 groups of analog output *1

Signal range: 0 ~ 10V, -10 ~ 10V, 4 ~ 20mA, 0 ~ 20mA

Resolution: 16-bit

Offers single channel On/Off setup

Conversion time: 250?s/point

Shipping Weight : 2 Kg

Related products

Dvp04ad-sl	4-channel AI,16bit, high-speed analog volume
Dvp04da-sl	4 channel DI,16bit, high-speed analog volume
Dvp01lc-sl	1 channel weighing module,16bit
Dvp02lc-sl	2 channel weighing module,16bit
