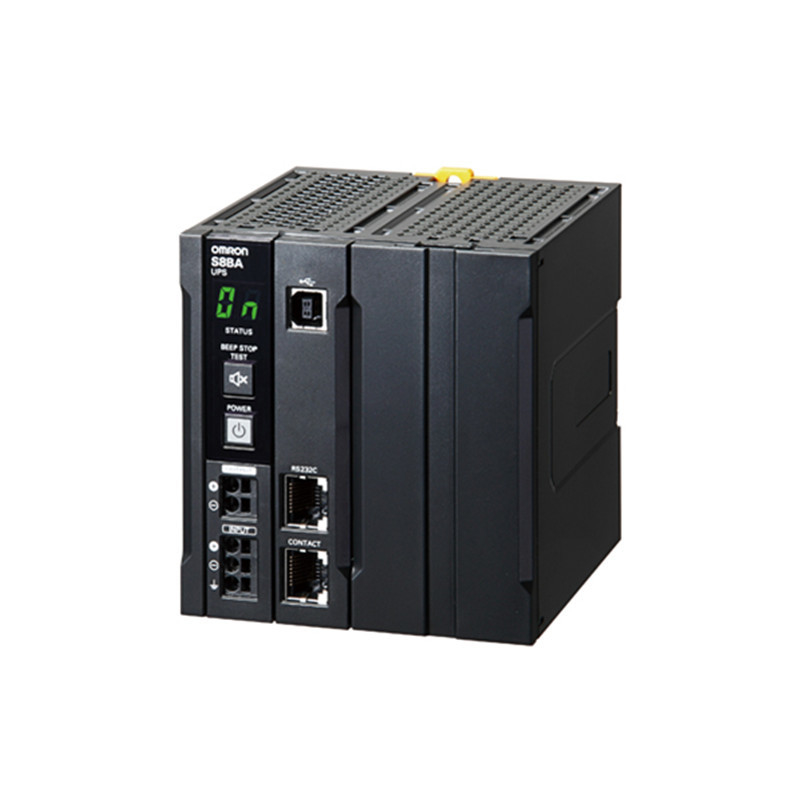

Omron S8BA Uninterruptible power supply S8BA-24D24D480LF with an industrial DIN Rail

: Large Image : Omron S8BA Uninterruptible power supply S8BA-24D24D480LF with an industrial DIN Rail

Product Details:

Place of Origin:	China
Brand Name:	Omron
Model Number:	S8BA-24D24D480LF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	100

Contact Now

Detailed Product Description

Manufacturer:	Omron	Item:	S8BA-24D24D480LF
Type:	Servo Drive	Output Voltage DC:	24VDC
Dimensions H X W X D Mm:	270 X 100 X 100	Mounting:	DIN Rail
High Light:	plc power supply module , diode redundancy module

Omron S8BA Uninterruptible power supply S8BA-24D24D480LF with an industrial DIN Rail

Overview:

24 VDC Input voltage
24 VDC Output voltage
Output Current : 5 A, 10 A, 15 A, 20 A
Output Capacity : 120 W, 240 W, 360 W, 480 W
14.4 VDC, 1600 mAh replacement battery pack
The lithium-ion battery is compact, lightweight and has a long battery life
Push-in terminal block adopted for the power input and output I/F
Shutdown in conjunction with the industrial purpose computer (IPC) or controller realized by the USB/RS-232C/I/O port installed in the UPS
1 year warranty

The S8BA is a DC-DC type uninterruptible DIN rail power supply that is an ideal countermeasure for momentary power losses in industrial computers (IPC) and controllers.The S8BA is the perfect solution to protect critical industrial equipment from power outages

Specifications:

Enclosure type	Enclosed
Mounting	DIN Rail
Output voltage DC	24VDC
Parallel operation	No
Serial communication buit-in	RS-232C (RJ45 port), USB (B connector port)
Back-up battery type	Lithium-ion battery (10 years)
Dimensions H x W x D mm	100 × 270 × 100
Series operation	No
Parallel operation	No
Serial communication buit-in	RS-232C (RJ45 port), USB (B connector port)
Output power	480W
Output voltage DC	24VDC
Output current	20A
Dimensions H x W x D mm	270 X 100 X 100
Width range	270
Depth range	100
Height range	100
Enclosure type	Enclosed
Mounting	DIN Rail

Related products:

S8BA-24D24D480LF

S8BA-24D24D240LF

S8BA-24D24D960SBF

S8BA-24D24D120LF

S8BA-24D24D360LF

S8BA-24D24D480SBF
