Product Details:
Payment & Shipping Terms:
|
Stock: | Yes | Manufacturer: | Siemens |
---|---|---|---|
Item: | 6EP1536-3AA00 | Shipping Term: | UPS/DHL/FEDEX/TNT |
Payment Term: | Western Union/Paypal/TT | Lead Time: | 5-7 Days |
Condition: | New | Output: | 24 V DC/20 A |
Supply: | 20 A DC/DC | Input: | 600 V DC |
High Light: | 6EP1536-3AA00,Siemens SITOP PSU400M Converter |

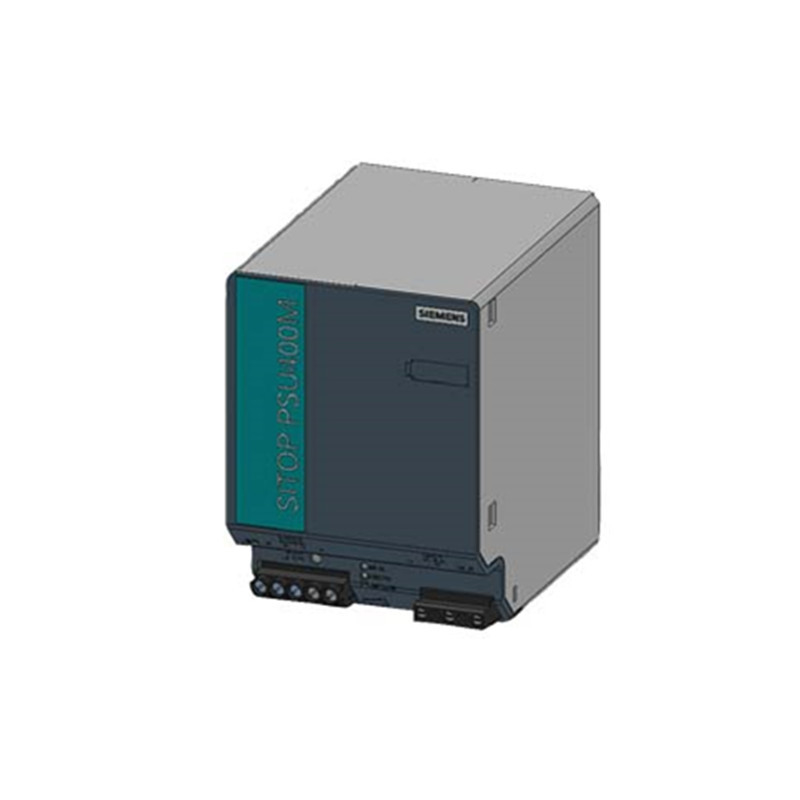

Siemens SITOP PSU400M converter 24 V DC 6EP1536-3AA00 converter made in Romania
Specifitions:
Input | ||
Input | DC voltage | |
● Note | startup from 340 V DC; derating necessary at 300 ... 400 V DC and 824 ... 900 V DC | |
Supply voltage | ||
● at DC | 600 ... 600 V | |
Input voltage | ||
● at DC | 300 ... 900 V | |
Overvoltage resistance | Shutdown at Vin > 900 V DC | |
Input current | ||
● at DC at rated input voltage 600 V | 0.85 A | |
Switch-on current limiting (+25 °C), max. | 8 A | |
I²t, max. | 0.02 A²·s | |
Built-in incoming fuse | yes, cut-off capacity 20 kA; L/R < 2 ms ("+" and "-" input) | |
Output | ||
Output | Controlled, isolated DC voltage | |
Rated voltage Vout DC | 24 V | |
Total tolerance, static ± | 3 % | |
Static mains compensation, approx. | 0.3 % | |
Static load balancing, approx. | 0.3 % | |
Residual ripple peak-peak, max. | 150 mV | |
Residual ripple peak-peak, typ. | 30 mV | |
Spikes peak-peak, max. (bandwidth: 20 MHz) | 200 mV | |
Spikes peak-peak, typ. (bandwidth: 20 MHz) | 100 mV | |
Adjustment range | 24 ... 28.8 V | |
Product function Output voltage adjustable | Yes | |
Output voltage setting | via potentiometer; max. 480 W | |
Status display | Green LED for 24 V OK, green flashing LED for start delay | |
Signaling | Relay contact (NO contact, rating 60 V DC/ 0.3 A; 30 V DC/1 A) for 24 V OK | |
On/off behavior | No overshoot of Vout (soft start) | |
Startup delay, max. | 0.1 s; 10 s adjustable using switch | |
Voltage increase time of the output voltage maximum | 150 ms | |
Rated current value Iout rated | 20 A | |
Current range | 0 ... 20 A | |
● Note | +60 ... +70 °C: Derating 5.5%/K | |
Supplied active power typical | 480 W | |
Short-term overload current | ||
● on short-circuiting during the start-up typical | 40 A | |
● at short-circuit during operation typical | 60 A | |
Duration of overloading capability for excess current | ||
● on short-circuiting during the start-up | 150 ms | |
● at short-circuit during operation | 25 ms | |
Constant overload current | ||
● on short-circuiting during the start-up typical | 23 A | |
Parallel switching for enhanced performance | Yes; switchable characteristic | |
Numbers of parallel switchable units for enhanced performance | 2 |
Weight, approx. | 1.2 kg |
1, First, send us the brand, model code/pic of the nameplate, the quantity for inquiry. Then we will send the quote to you. after confirming the model and the quantity, then we will make the PI to you.
2, You can transfer by Paypal/ Western Union/Trade assurance/ T/T. When we received the payment, then we will start to prepare the order for you asap.
