Home ProductsIndustrial Servo Drives

200V 400W L Frame Industrial Servo Drives Panasonic MLDET2310P

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

200V 400W L Frame Industrial Servo Drives Panasonic MLDET2310P

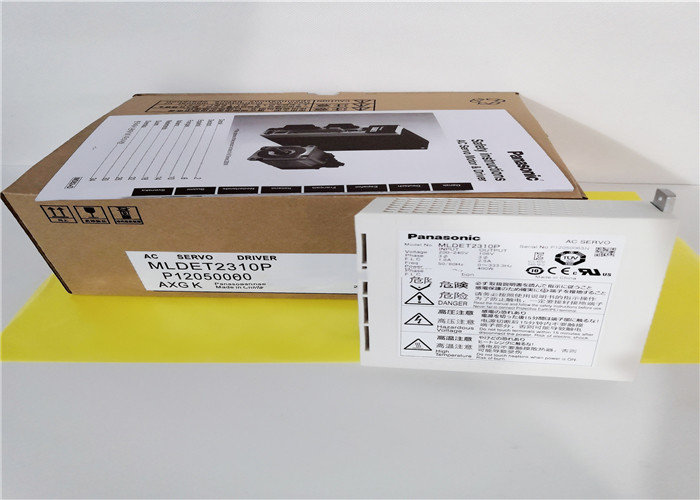

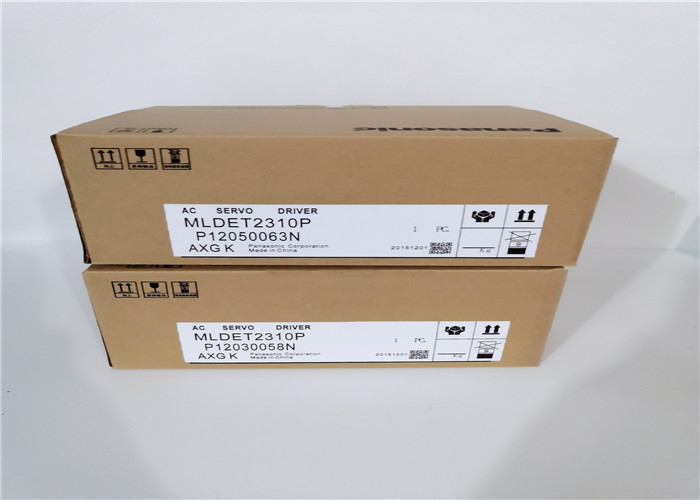

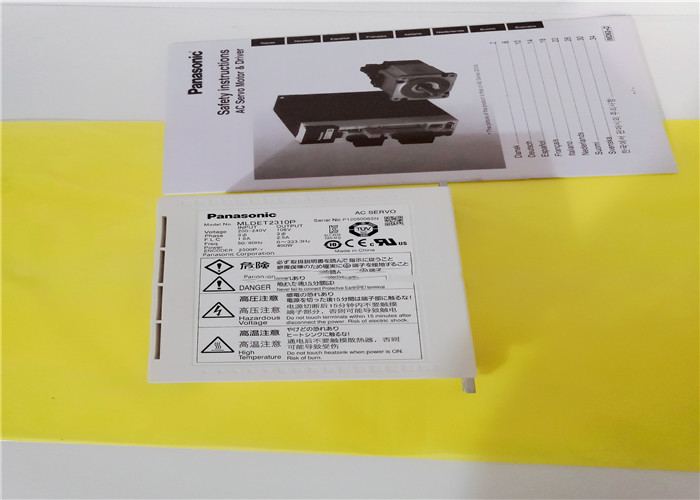

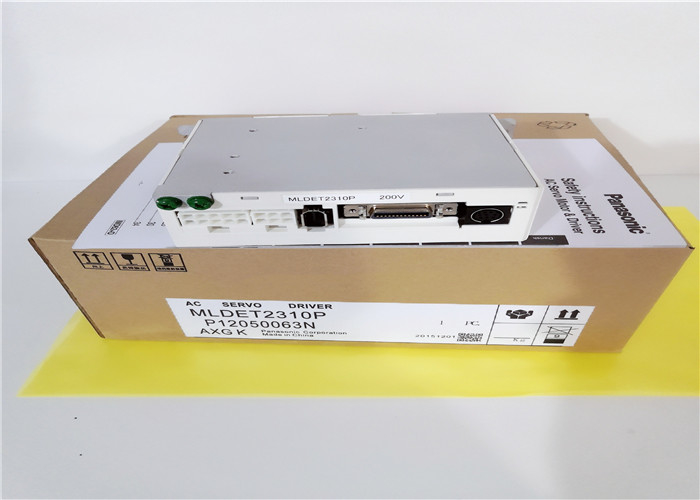

Large Image :  200V 400W L Frame Industrial Servo Drives Panasonic MLDET2310P

Product Details:

Place of Origin: Japan
Brand Name: Panasonic
Certification: CE
Model Number: MLDET2310P

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact
Packaging Details: NEW AND ORIGINAL
Delivery Time: 3-5DAYS
Payment Terms: T/T, Western Unionm,PAYPAL
Supply Ability: 1000
Detailed Product Description
Brand: Panasonic Model Number: MLDET2310P
Country Of Origin: Japan Series: E Series
Frame: L-Frame Frequency Response: 400 Hz
Power Device Max. Current Rating: 15A Supply Voltage: 3-phase 200 V
Current Detector Current Rating: 10A Input Power: 3-phase 200 To 240V +10% -15% 50/60 Hz
High Light:

L Frame Industrial Servo Drives

,

400W Industrial Servo Drives

,

MLDET2310P

Panasonic MLDET2310P Industrial Servo Drives Three Phase 200V 400W









Product Attributes

Type
Description
Mfr
Panasonic Industrial Automation Sales
Series
Package
Box
Part Status
Active
Type
Module
Motor Type
Servo
Control / Drive Type
Servo AC
Voltage - Load
240V
Current - Output
15A
Voltage - Supply
200 ~ 240VAC
Interface
RS-232C
Mounting Type
Chassis Mount
Operating Temperature
0°C ~ 55°C
Features
-
For Use With/Related Products
MINAS E Series
Weight
0.882 lb (400.07 g)
Number of Motors
1
Wattage - Load
400W









Environmental & Export Classifications





RoHS Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8537.10.9170









Basic Specifications

  • Item Specifications
  • Input power 3-phase 200 to 240V +10% -15% 50/60 Hz
  • Encoder feedback 2500 P/r (10000 resolution) incremental encoder
  • Parallel I/O connector:
  • Control signal Input 7 inputs (1) Servo-ON, (2) Alarm clear and other inputs vary depending on the control mode.
  • Parallel I/O connector:
  • Control signal Output 4 outputs
  • (1) Servo alarm, (2) Alarm, (3) Release signal of external brake and other outputs vary depending on the control mode.
  • Parallel I/O connector:
  • Pulse signal Input 2 inputs Supports both line driver I/F and open collector I/F.
  • Parallel I/O connector:
  • Pulse signal Output 4 outputs
  • Feed out the encoder pulse (A, B and Z-phase) in line driver. Z-phase pulse is also feed out in open collector.
  • Communication function RS232
  • Communication function: RS232 1: 1 communication to a host with RS232 interface is enabled.
  • Regeneration No built-in regenerative resistor (external resistor only)
  • Control mode The following 3 modes are selectable with parameter
  • (1) High-speed position control, (2) Internal velocity control, (3) High-functionality position control







The following are some of the drive models, both new and used are stocked:




MSDA3A3A1A MSDA5A3A1A MSDA013A1A
MSDA023A1A MSDA043A1A MSDA083A1A
MDDA103A1A MDDA153A1A MDDA203A1A
MDDA253A1A MDDA303A1A MDDA353A1A
MSDA403A1A MSDA503A1A MSD023A1XXV
MSDA083A1XXV MSD043A1X MSDA043D1A
MQDA043A1A MUDS043A1A MUDS023A1A
MUDS083A1A MUMS082A1E0S MUDS083A1M
MUMA012P1T MUMA022P1T MUMA042P1T
MUMA042P1S MUMA012P1S MUMA022P1S
MUMS082P1S MSDA043A1XXV MSDA013A1XXV
MKDET1505P MUMA082P1T

MKDET1310P
