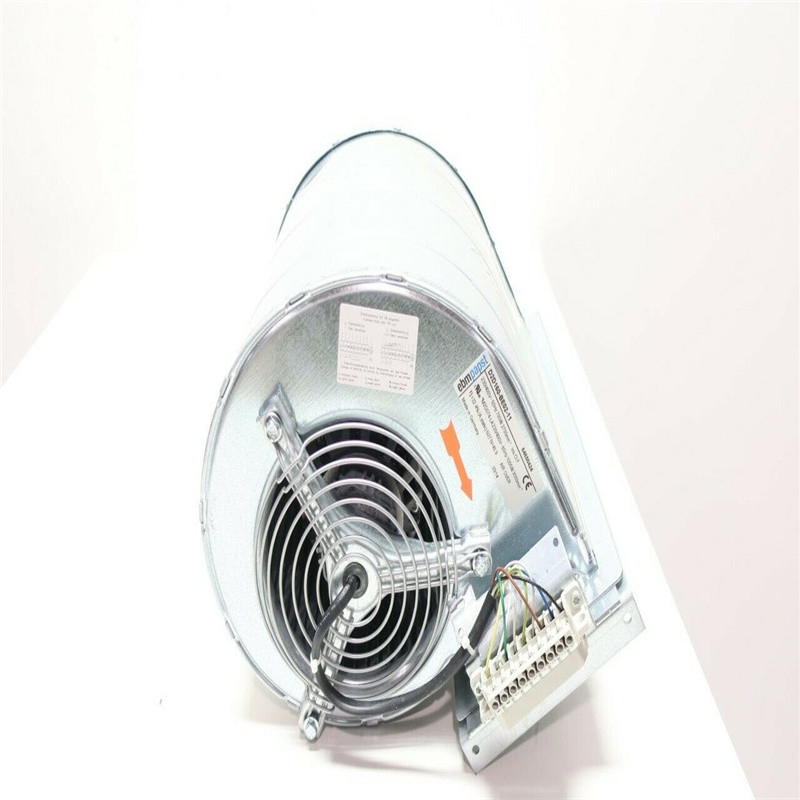

GOST 1055w Industrial Centrifugal Blower 230/400v-Ac D2D160-BE02-11

1PC New Ebm-papst D2D160-BE02-11 Centrifugal Blower 1055w 230/400v-ac

Technical features
Leackage current < 0,75 mA

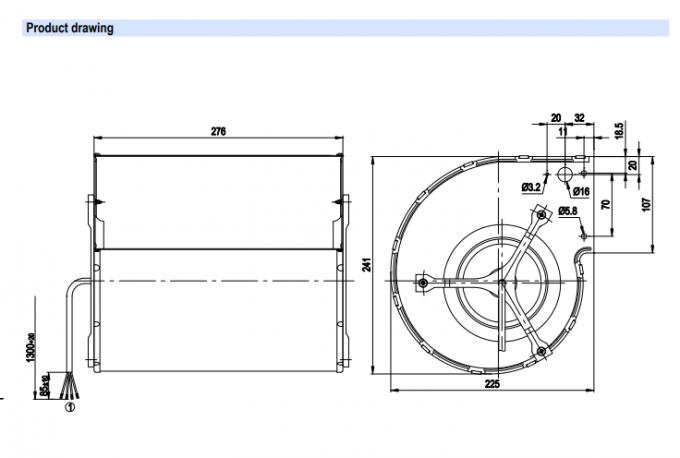

Size 160 mm
Operation mode S1
Mounting position Any
Direction of rotation Counter-clockwise, seen on rotor
Insulation class "F"
Cable exit Axial
Condensate discharge holes None
Bearing-motor Ball bearing
Mass 5.7 kg
Housing material Sendzimir galvanized sheet steel
Material of impeller Sendzimir galvanized sheet steel
Motor suspension Motor mounted with anti-vibration on both sides
Motor protection Thermal overload protector (TOP) wired internally
Product conforming to
standard
CE; EN 60335-1
Surface of rotor Partially cast in aluminium
Type of protection IP 20
Protection class I
Approval CCC; GOST

Descripition

Product No. : D2D160-BE02-14

Product Type : Centrifugal Cooling Fan Assembly

Product ID: 64650424

ABB Type Designation: D2D160-CE02-11

Catalog Description: D2D160-CE02-11; FAN, CENTRIFUGAL

Long Description: FAN

Country of Origin: Germany (DE)

Customs Tariff Number: 84145920

Invoice Description: FAN, CENTRIFUGAL

Made To Order: No

Minimum Order Quantity: 1 piece

Order Multiple: 1 piece

Part Type: New

Medium Description: FAN

Product Name: FAN, CENTRIFUGAL

Product Net Weight: 11.1 kg

Shipping Weight : 16.5Kg

SAFETY REGULATIONS AND INFORMATION
Read these operating instructions carefully before starting work on the  device. Observe the following warnings to prevent malfunctions or
danger to persons.
These operating instructions are to be regarded as part of the device.
The device is only to be sold or passed on together with the operating  instructions.
These operating instructions may be duplicated and distributed to inform about potential dangers and their prevention.

DANGER
Indicates an imminently hazardous situation which will result in death or serious injury if the specified actions are not taken.
Compliance with the instructions is imperative.

WARNING
Indicates a potentially hazardous situation which can result in death or serious injury if the specified actions are not taken.
Exercise extreme caution while working.

CAUTION
Indicates a potentially hazardous situation which can result in minor or moderate injury or damage to property if the specified
actions are not taken.

NOTE
A potentially harmful situation can occur and, if not avoided, can lead to property damage
