GE FANUC IC693MDL740 12/24 Positive Logic DC Output Module 90-30 Series

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

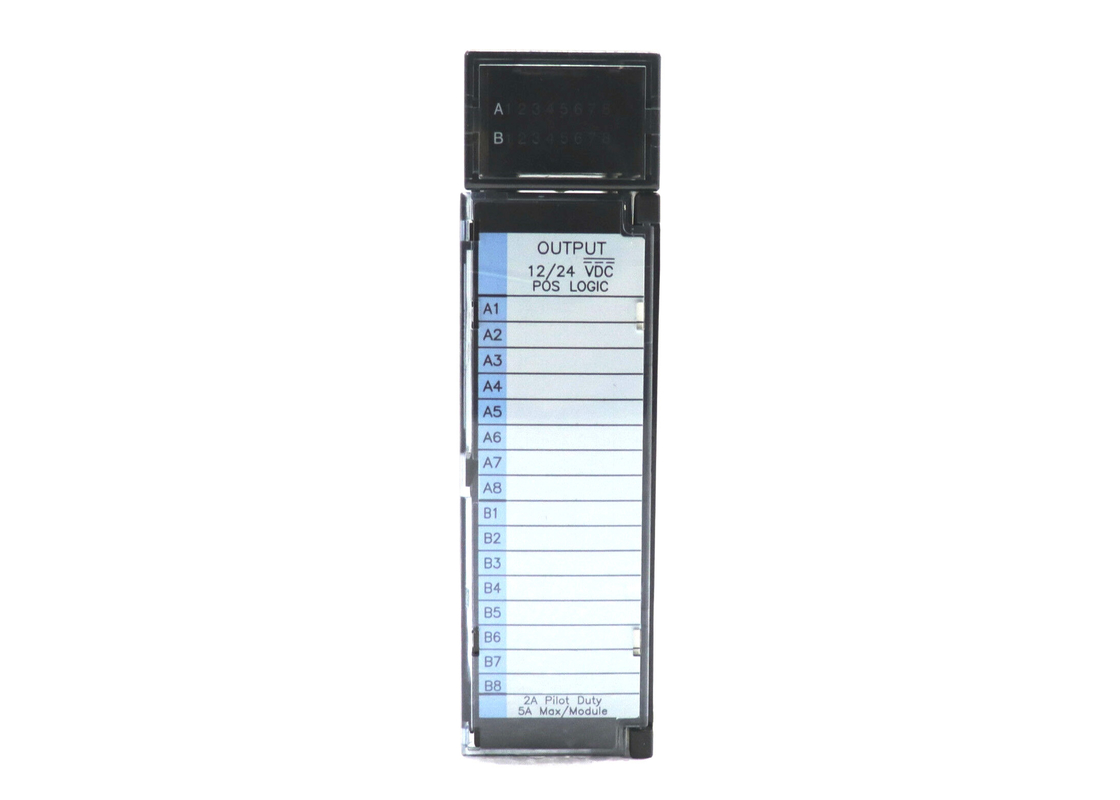

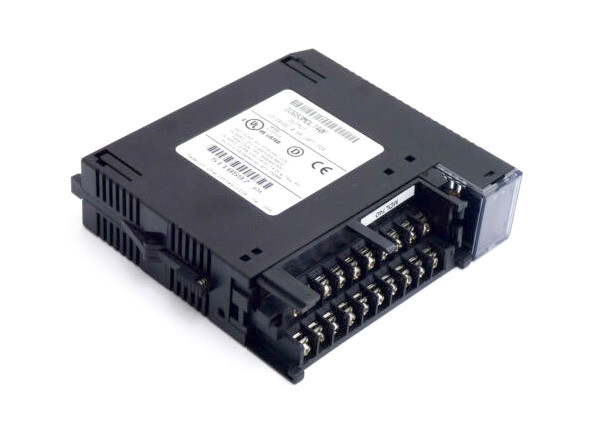

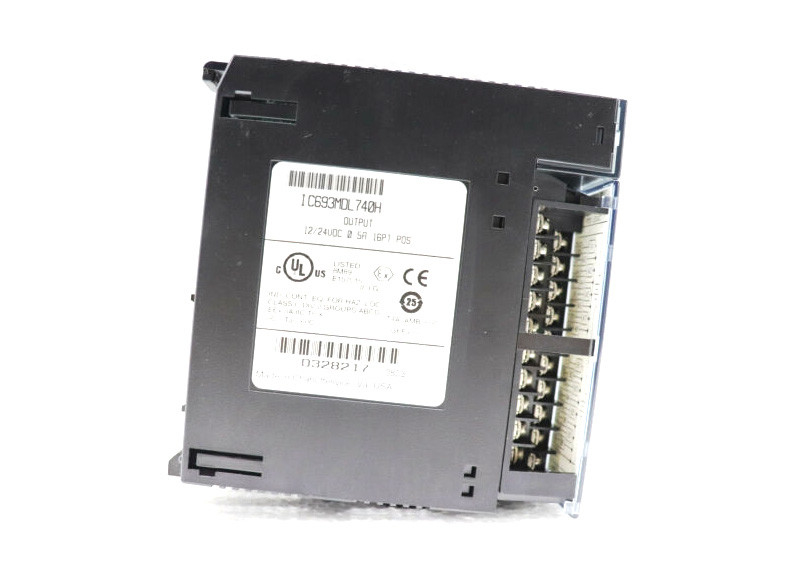

GE FANUC IC693MDL740 12/24 Positive Logic DC Output Module 90-30 Series

Large Image :  GE FANUC IC693MDL740 12/24 Positive Logic DC Output Module 90-30 Series

Product Details:

Place of Origin: USA
Brand Name: GE
Model Number: IC693MDL740

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100
Detailed Product Description
Brand: GE Fanuc Model: IC693MDL740
Series: Series 90-30 Power Type: Output Power
Number Of Outputs: 16 Peak Current Draw: 110 Milliamps
Operating Temperature: 32 To 140 Degrees Fahrenheit Storage Temperature: -40 To 185 Degrees Fahrenheit
High Light:

110 Milliamps DC Output Module

,

110mA DC Output Module

,

GE FANUC IC693MDL740

GE FANUC IC693MDL740 , 12/24 Positive Logic DC Output Module , 90-30 Series

Product Description


The GE Fanuc 90-30 Series IC693MDL740 is a 12/24 positive logic DC output module. This model possesses positive logic so that the module sources current from the positive power bus terminal or the common user to the required loads. The output electronic device is placed in between the output module and the power bus. The rated voltage required for the IC693MDL750 module is 12/24 volts DC, and the output current is a maximum of 0.5 amps per point with a maximum of 2 amps per common.

The IC693MDL740 is designed with 16 common points separated into two equal groups. Each group has eight output points and a common output pin. The module’s architecture has a hinged door in which an insert may be placed in between the outside and inside surfaces. When this door is closed, the inside surface of the hinged door contains the wiring information of the circuit whereas outside surface has the identification information about the circuit. The blue color on the left side of insert indicates that IC63MDL740 module is a low voltage module.

The IC693MDL740 has an LED indicator which communicates the status of the circuit. The LED indicator contains two horizontal rows with green LED lights, of which the top row is labeled as A1 and bottom row as B1.

The field device used with this module is operated by the external power supply. This may be installed into any of the input or output slots of a 90-30 Programmable logic control system.



The IC693MDL740 module from the GE Fanuc Series 90-30 product line is a digital output module that runs on DC power. This output module also uses positive logic power. It has 16 output channels for connecting to up to 16 external devices at a time in a complete Series 90-30 controller setup. The 16 outputs are divided into 2 groups of 8 outputs each, and each group also features a common output pin. There are LED status indicators for each of the output points. The IC693MDL740 digital output module has a nominal input voltage rating of 5 Volts DC and an operating voltage range that runs from 12 to 24 Volts DC. The peak current draw of the IC693MDL740 output module is 110 milliamps.

The GE Fanuc Series 90-30 IC693MDL740 16-point digital output module can operate without derating within an ambient temperature range of 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit. It can be stored or transported within a wider ambient temperature range of -40 to 85 degrees Celsius or -40 to 185 degrees Fahrenheit. Additionally, the IC693MDL740 digital output module can tolerate 5 to 95% relative humidity without condensation in operation, in storage, and during transportation. The IC693MDL740 digital output module is rated as a low-voltage output module. It draws its power from an external power supply in the Series 90-30 PLC system and it can be installed in any available slot in one of the system’s racks. The output current ratings of the IC693MDL740 output module are 0.5 Amps per output point and 2 Amps per common.



Technical Specifications


Rated Voltage: 12/24 volts DC
# of Outputs: 16
Freq: n/a
Output Current: 0.5 A per point
Output Voltage Range: 12 to 24 volts DC (+20%, -15%)
DC Power: Yes





echnical Information

Specifications

Rated Voltage 12/24 volts DC
Output Voltage Range 12 to 24 volts DC (+20%, –15%)
Outputs per Module 16 (two groups of eight outputs each)
Isolation 1500 volts between field side and logic side
  500 volts between groups
Output Current 0.5 amps maximum per point
  2 amps maximum per common
Output Characteristics
Inrush Current 4.78 amps for 10 ms
Output Voltage Drop 1 volt maximum
Off-state Leakage 1 mA maximum
On Response Time 2 ms maximum
Off Response Time 2 ms maximum
Power Consumption 110mA (all outputs on) from 5 volt bus on backplane
