GE FANUC IC693MDL741 12/24 Positive Logic DC Output Module 90-30 Series

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

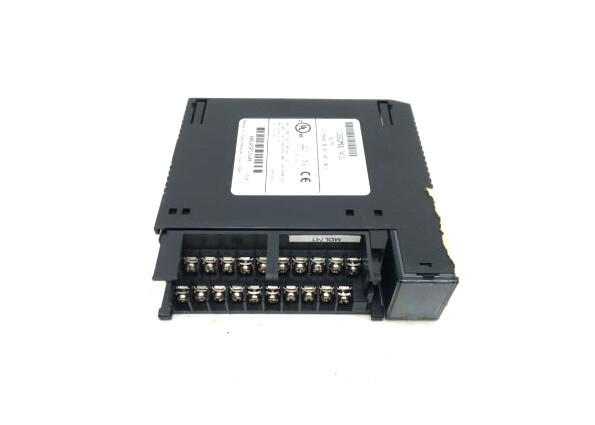

GE FANUC IC693MDL741 12/24 Positive Logic DC Output Module 90-30 Series

Large Image :  GE FANUC IC693MDL741 12/24 Positive Logic DC Output Module 90-30 Series

Product Details:

Place of Origin: USA
Brand Name: GE
Model Number: IC693MDL741

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100
Detailed Product Description
Brand: GE Fanuc Model: IC693MDL741
Power Type: Digital I/O Output Points: 16
Peak Module Current Draw: 110 Milliamps Module Voltage Input: 5 Volts DC
Rated Voltage: 12/ 24 Volts DC Peak Output Voltage Drop: 0.5 Volts
High Light:

5VDC Logic DC Output Module

,

110mA Logic DC Output Module

,

GE FANUC IC693MDL741

GE FANUC IC693MDL741 , 12/24 Positive Logic DC Output Module , 90-30 Series

Product Description

The GE Fanuc 90-30 Series IC693MDL741 is a 12/24 positive logic DC output module. This model uses positive logic so the module sources current from the positive power bus terminal or common user to the required loads. The output electronic device is placed in between the output module and the power bus. The rated voltage required for the IC693MDL741 module is 12/24 volts DC, and the output current is maximum of 0.5 amps per point with a maximum of 2 amps per common.

The IC693MDL741 provides 16 common points categorized into two equal groups with eight output points, each having a common output pin. The module has a hinged door; an insert in placed in between the inside and outside surface of the door. When this door is closed, the inside surface of the hinged door contains the wiring information of the circuit whereas outside surface has the identification information of the circuit. The blue color on the left side of insert indicates that IC63MDL741 is a low voltage type module.

The IC693MDL741 is designed with an LED indicator to show the status of the circuit. The LED indicator contains two horizontal rows with green LED lights. The features of IC693MDL741 makes it compatible with starter motors and indicators. The field device used in this module is operated by an external power supply. This module is free to be set up in any of the input or output slots of a 90-30 Programmable logic control system.



About IC693MDL741

The 16-point IC693MDL741 module is an I/O module for the GE Fanuc Series 90-30 PLCs. The module can be installed in any slot of a GE Series 90-30 PLC which has either a 5-slot or 10-slot baseplate. The baseplate forms the foundation of the PLC with all the other components mounted on it. The baseplate usually contains the CPU. There are 3 different types of baseplate which are the CPU baseplate, the expansion baseplate, and the remote baseplate and each of these types of baseplate is available in 2 sizes which are 5-slot and 10-slot sizes. When all the points on the IC693MDL741 module are on, the module current draw from the baseplate is 110 milliamps. The voltage input to the module is 5 Volts DC. The IC693MDL741 module does not contain any fuses.



The IC693MDL741 module is a 12 to 24 Volts negative logic output module. The module provides 16 output points in 2 groups with each group having a common output power terminal. LEDs which indicate on the off status of the output points are available on the module. The IC693MDL741 module sinks the current from the loads to the negative power bus or to the user common and therefore it has negative logic characteristics. Solenoids and indicators are some of the devices which can be used with the IC693MDL741 module.The range of output voltages is 12 to 24 Volts DC. Up to 1500 Volts of isolation is available between the field and logic sides and 500 Volts of isolation is available between the groups. The peak output voltage drop is 0.5 Volts. The peak off state leakage is 1 milliamp. The working and storage temperature ranges for the module are 0 to 60 degrees Celsius and -40 to 85 degrees Celsius, respectively.

Technical Specifications


Rated Voltage: 12/24 volts DC
# of Outputs: 16
Freq: n/a
Output Current: 0.5 A per point
Output Voltage Range: 12 to 24 volts DC (+20%, -15%)
DC Power: Yes





Technical Information

Specifications

Rated Voltage 12/24 volts DC
Output Voltage Range 12 to 24 volts DC (+20%, –15%)
Outputs per Module 16 (two groups of eight outputs each)
Isolation 1500 volts between field side and logic side
  500 volts between groups
Output Current 0.5 amps maximum per point
  2 amps maximum per common
Output Characteristics
Output Voltage Drop 0.5 volts maximum
Off-state Leakage 1 mA maximum
On Response Time 2 ms maximum
Off Response Time 2 ms maximum
Power Consumption 110mA (all outputs on) from 5 volt bus on backplane
