ALLEN BRADLEY 1771 HRA DIGITAL DRIVER MODULE RESOLVER EXCITATION 250 KILOHERTZ
Detailed Product Description
| Brand: |
AB |
Model: |
1771-HRA |
| Module Type: |
Resolver Excitation Module |
Fuse Voltage: |
120 Volts |
| Max Input Frequency: |
250 Kilohertz Differential Input |
Outputs: |
+/- 10 Volt DC Analog Command |
| Slots: |
2 Slots Per ES |
Module Update Period: |
2 Ms/axis |
| High Light: |
Allen Bradley Digital Driver Module, 1771 HRA Digital Driver Module, 250 Kilohertz Io Ethernet Module |
AB 1771-HRA , Resolver Excitation Module , Driver Module
| Brand |
AB |
| Part Number/Catalog No. |
1771-HRA |
| Module Type |
Resolver Excitation Module |
| Fuse Voltage |
120 Volts |
| Max Input Frequency |
250 Kilohertz Differential Input |
| Outputs |
+/- 10 Volt DC Analog Command |
| Slots |
2 Slots Per ES |
| Module Update Period |
2 ms/axis |
| Backplane Current |
1.7 Amperes |
| Wiring Arm |
1771-WB |
| Wiring Arm |
1771-WA |
| Pulse Capture Time |
50-9.999 Microseconds |
| Dimensions |
3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm) |

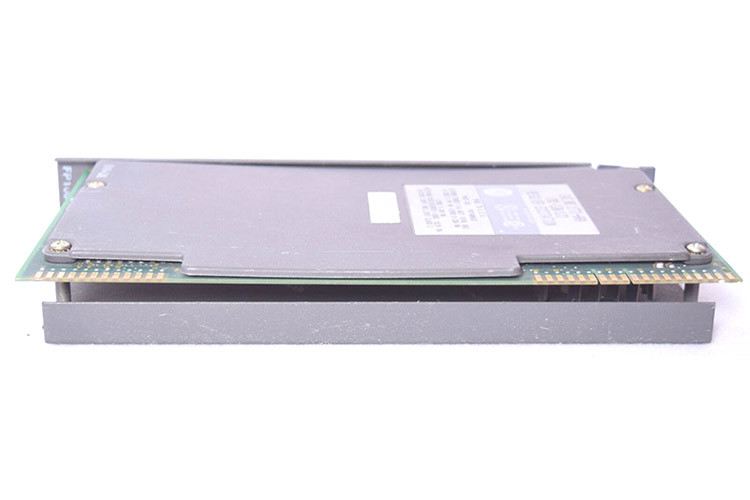

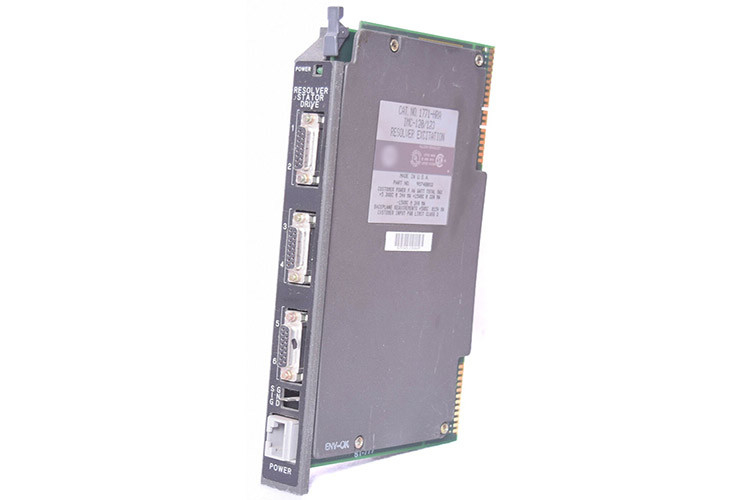

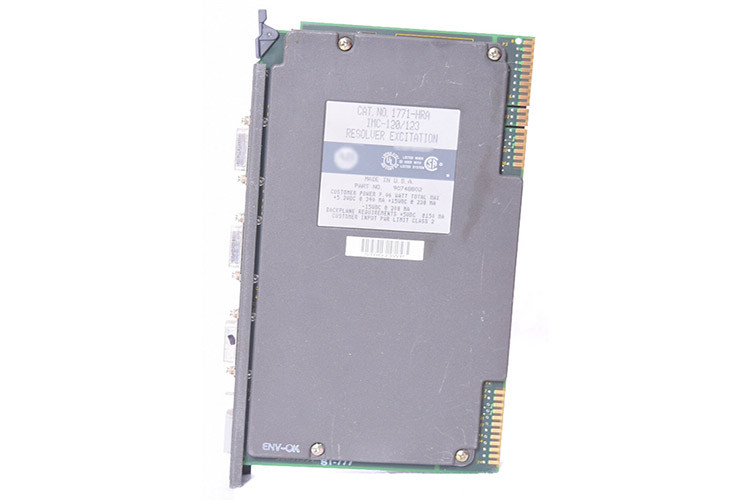

About 1771-HRA
The 1771-HRA Resolver Excitation Module by AB is a module located on the 1771 I/O chassis slot and is used with the IMC 120 System to provide Sine and Cosine Signals which excite the Stator of the IMC 120 Resolver Feed-back and provide position feedback to controller modules. The 1771-HRA uses the 1771-PS7 power supply module which provides 5V, 15V, and 24V DC power using the 1771-CAS cable connected to the 12-pin Latch and Lock connector of the 1771-HRA and it has a backplane power consumption of 0.4W. It has a Green LED indicator light to show the power status, and it uses the 1771-CAPR 12ft cable to connect to the termination panel. It has a Sinusoid output amplitude of 6.72V (RMS) minimum and a maximum amplitude of 7.42V (RMS) and it has 0.3% maximum Sine-Cosine matching amplitude. The 1771-HRA has a maximum OFFSET voltage of 0.01V DC with 0.1% TDH signal distortion and an output frequency of 2.5 KHz. Its Sine-to-Cosine relationship stays at 900 for 4.5 minutes, with a Sine Phase OFFSET of 0.450, and a Sine Drift of -+5.4 minutes. It has a maximum output inductive load of 80 Ohms at 800 and it has an output current limit of 0.81A (min) and 0.35A (max). The 1771-HRA has a maximum signal delay time of 2s from Power-up to Output.
