DSF-2326 AC Inverter Fan EBM RF3D-146/180 K506 For ABB

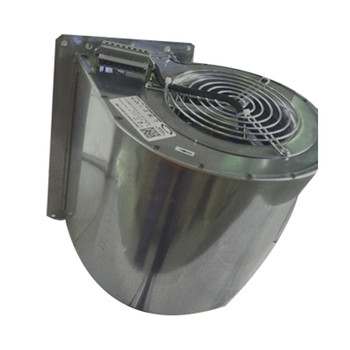

Large Image :  DSF-2326 AC Inverter Fan EBM RF3D-146/180 K506 For ABB

Product Details:

Brand Name: EBM
Model Number: RF3D-146/180 K506 DSF-2326
Detailed Product Description
Brand1: EBM Brand2: Ebm-papst
Model 1: RF3D-146/180 Model 2: K506 DSF-2326
Net Weight (lb): 9.000 Lb Packaging Dimension: 30,00 X 30,00 X 18,00
High Light:

DSF-2326 AC Inverter Fan

,

ABB EBM AC Inverter Fan

,

230W Industrial Inverter Fan

EBM RF3D-146/180 K506 DSF-2326 Replacement D3G146-AB06-10 for ABB Inverter Fan





Product parameter
Type :RF3D-146/180 K506 DSF-2326
Brand:EMC(S&P)
Nominal voltage : 230VAC
Frequency :50/60Hz
Valid for approval / standard :CE
Speed :2694min-1
Power : 230W
Current:1.31/1.45A
Fan size: 146*270mm




How to select your ebm-papst product



A.Solutions for ventilation offered by ebm-papst

In the field of ventilation, ebm-papst offers the perfect solution for a vast number of applications. Depending on motor, impeller and control technology, there is almost no limit to the number of possible combinations, thus making sure you can find the best solution for your application.


B.Criteria for selection



When selecting a fan for a specific application, these parameters play an
important role:
– Air flow with given back pressure
– Voltage supply, divided into DC and AC voltage (1~,3~)
– Noise generation
– Efficiency
– Available mounting space





More details for Centrifugal fans

Centrifugal fans with forward curved blades always require a spiral housing. Their characteristic features are a low noise level, relatively small air flow with a high increase in static pressure, and space-saving application.

Energy savings, convenient control and low noise - Cylindrical rotor fans with GreenTech EC technology
Saving energy is becoming an ever increasingly important topic these days. Especially when it comes to air-conditioning and ventilation technology, great potential savings can be achieved by using energy efficient fans. For this reason, motor and fan specialist ebm-papst has recognised the issue, and has developed a complete series of dual-inlet, direct-driven cylindrical rotor fans with efficient GreenTech EC technology. Without changing the design of the unit, this allows a conversion from a conventional fan with asynchronous motor to modern energy-saving technology.
With integrated motor electronics, the EC fans can be easily speed controlled via a 0-10 V signal or by the use of a potentiometer. As an option up to three air flow values can be programmed in "Constant Flow" mode. This means that if the system resistance changes, for example due to polluted filters, the fan keeps the programmed air flow by changing the speed automatically.
Depending on the motor type used, the double inlet fans with state-of-the-art EC technology cover almost every conceivable application area. You can choose between eleven sizes with drive outputs between 85 W and 3 kW. Thus a customised solution is available for virtually any application, including compact air handling units, air curtains, fan coil units, air heaters for factory buildings or as a cooling fan for forced cooling of power converters, generators or telecommunications systems.








Similiar Fans

A2D300-AP02-01;S2D300-BP02-30;W2D300-CP02-30;S2D300-AP02-30;A2D300-AP02-02;S2D300-BP02-31
W2D300-CP02-31;S2D300-AP02-31;A2E300-AP02-01;S2E300-BP02-30;W2E300-CP02-30;S2E300-AP02-30
A2E300-AP02-02;S2E300-BP02-31;W2E300-CP02-31;S2E300-AP02 -31
A2D200-AH18-01;S2D200-BH18-01;W2D200-CH18-01;S2D200-AH18-01;A2D200-AI18-01;S2D200-BI18-01
W2D200-CI18-01;S2D200-AI18-01;A2E200-AH38-01;S2E200-BH38-01;W2E200-CH38-01;S2E200-AH38-01
A2E200-AI38-01;S2E200-BI38-01;W2E200-CI38-01;S2E200-AI38-01;A4D200-AH14-01;S4D200-BH14-01
W4D200-CH14-01;S4D200-AH14-01;A4D200-AI14-01;S4D200-BI14-01;W4D200-CI14-01;S4D200-AI14-01
A4S200-AH04-01;S4S200-BH04-01;W4S200-CH04-01;S4S200-AH04-01;A4S200-AI04-01;S4S200-BI04-01
W4S200-CI04-01;S4S200-AI04-01;A2E250-AL06-01;S2E250-BL06-01;W2E250-CL06-01;S2E250-AL06-01

A2E250-AM06-01;S2E250-BM06-01;W2E250-CM06-01;S2E250-AM06-01;A4D250-AH22-01;S4D250-BH22-01
W4D250-CH22-01;S4D250-AH22-01;A4D250-AI22-01;S4D250-BI22-01;W4D250-CI22-01;S4D250-AI22-01

A4E250-AH02-01;S4E250-BH02-01;W4E250-CH02-01;S4E250-AH02-01;A4E250-AI02-01;S4E250-BI02-01
W4E250-CI02-01;S4E250-AI02-01;A4S250-AH02-01;S4S250-BH02-01;W4S250-CH02-01;S4S250-AH02-01
A4S250-AI02-01;S4S250-BI02-01;W4S250-CI02-01;S4S250-AI02-01;A2D250-AH02-01;S2D250-BH02-01
W2D250-CH02-01;S2D250-AH02-01;A2D250-AI02-01;S2D250-BI02-01;W2D250-CI02-01;S2D250-AI02-01
