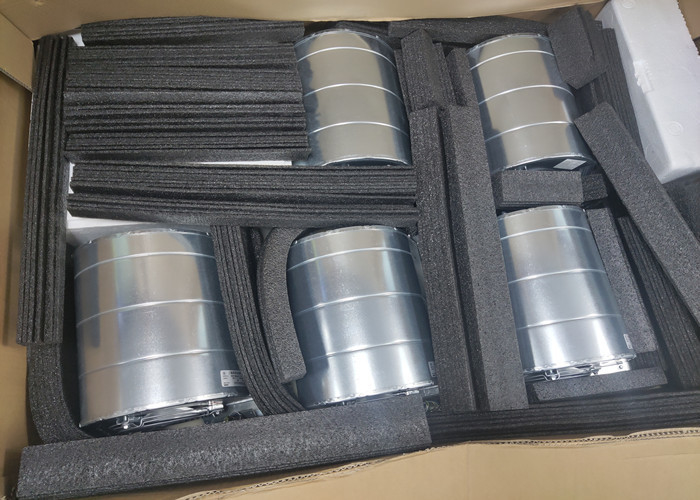

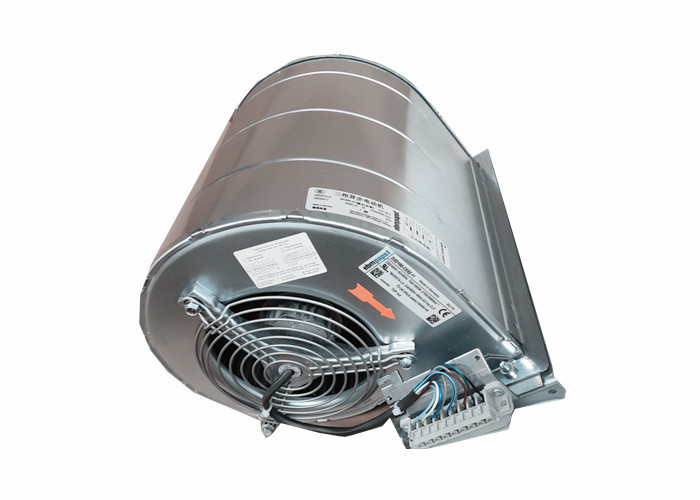

NEW ebmpapst Centrifugal Blower D2D160-BE02-14 220/400V inverter cooling fan
Nominal data
Motor M2D074-LA
Phase 3~ 3~ 3~ 3~
Nominal voltage / VAC 230 230 400 400
Wiring Δ Δ Y Y
Frequency / Hz 50 60 50 60
Method of obtaining
data
ml ml ml ml
Valid for approval/
standard
- - - -
Speed / min-1 2700 3000 2700 3000
Power consumption / W 700 1055 700 1055
Current draw / A 2.2 3.0 1.28 1.7
Min. back pressure / Pa 400 500 400 500
Min. ambient
temperature / °C
-25 -25 -25 -25
Max. ambient
temperature / °C
75 75 75 75
Starting current / A 9.25 9.6 5.34 5.54
Technical description
Weight 10.82 kg
Fan size 160 mm
Rotor surface Painted black
Impeller material Sheet steel, galvanized
Housing material Sheet steel, galvanized
Guard grille material Steel, galvanized and coated with whitealuminum plastic (RAL 9006)
Motor suspension Motor vibration-damped on both sides
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP00
Insulation class "F"
Moisture (F) /
Environmental (H)
protection class
F2-1
Installation position Any
Condensation
drainage holes
None, open rotor
Mode S1
Motor bearing Ball bearing
Touch current
according to IEC
60990 (measuring
circuit Fig. 4, TN
system)
< 0.75 mA
Electrical hookup With plug
Motor protection Thermal overload protector (TOP) with
basic insulation
with cable Axial
Protection class I (with customer connection of protective
earth)
Conformity with
standards
EN 60335-1
Approval CCC; CSA C22.2 No. 100; EAC; UL
1004-1
Similiar Centrifugal fans for ABB Variable Frequency Inverter
Part no : D2D160- BE02-11 64650424
Part no : D2D160-BE02-11
Part no : D2D160-BE02-12
Part no : D2D160-BE02-12 68281334
Part no : D2D160-BE02-14
Part no : D2D133-DB02-06
Part no : D2D146-AA28-28
Part no : D2E133-AM35-B4
Part no : D2E097-CB01-02
Part no : D2E133-AM47-01
Part no : D2E133-CI33-56
Part no : D2E133-DM47-01
Part no : D2E146-AP43-22
Part no : D2E146-AP47-22
Part no : D2E160-AB01-06
Part no : D2E160-FI01-01
Part no : D2E146-HR93-01
Part no : D2E097-BK66-02
Part no : D2E097-BK66-48
Part no : D2E097-CH85-02
Part no : D2E097-CH85-48
Part no : D2E133-DM47-23
Part no : D2E146-AP43-02
Part no : D2E146-AP47-02
Part no : D4E225-CC01-02
Part no : D4E225-CC01-30
Part no : D4E225-CC01-39
Part no : D2E140-HR97-07
Part no : D2E146-KA45-01
Part no : D2E146-KB27-01
Part no : D2E146-HR93-03
Part no : D2E146-HS97-03
Part no : D2E160-FK11-02
Part no : D4E146-LV19-14
Part no : D4D180-CB01-02
art no : D4D200-CA01-02
Part no : D4D225-FH02-01
Part no : D4D225-GH02-01
Part no : D4E160-DA01-02
Part no : D4E160-EG06-05
Part no : D4E160-FH12-05
Part no : D4E180-BA02-02
Part no : D4E180-CA02-02
Part no : D4E200-CA02-02
Part no : D4E225-BC01-02
Part no : D4E225-DH01-01
Part no : D4E225-EH01-01
Part no : D6E225-FB07-02
For ebm-papst, environmental protection and resource preservation are top priority corporate goals. ebm-papst operates an environmental management system which is certified in accordance with ISO 14001 and rigorously implemented around the world on the basis of German standards.
Right from the development stage, ecological design, technical safety and health protection are fixed criteria.
The following section contains recommendations for ecological disposal of the product and its components.
