| Country Of Origin: | USA | Deliver Time: | 3-5 Working Day |
|---|---|---|---|
| Price: | Contact Us | Warranty: | One Year |
| Brand: | GE | Quality: | Seal Original Package |
| Shipping Term: | DHL / FEDEX /UPS/TNT | MOQ: | 1 Piece |
| Model Number: | IC660BBS103 | Payment Term: | T/T, Western Union,paypal |
| Rated Voltage: | 115 VAC / 125 VDC |

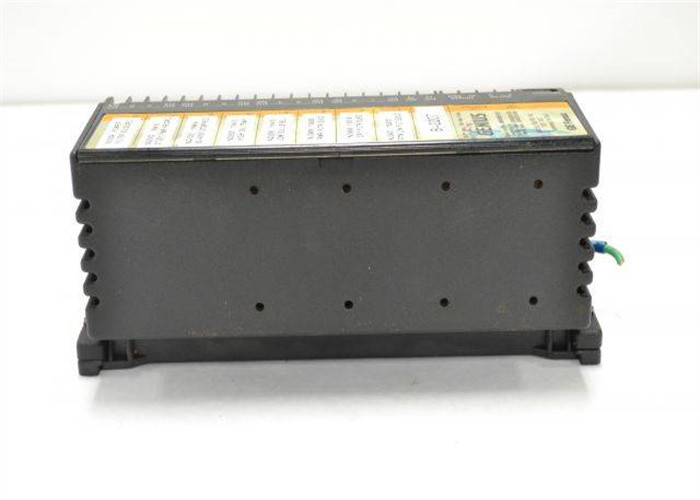

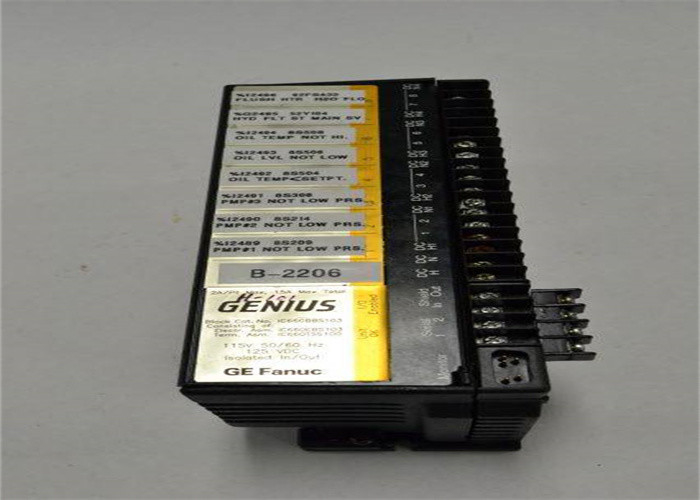

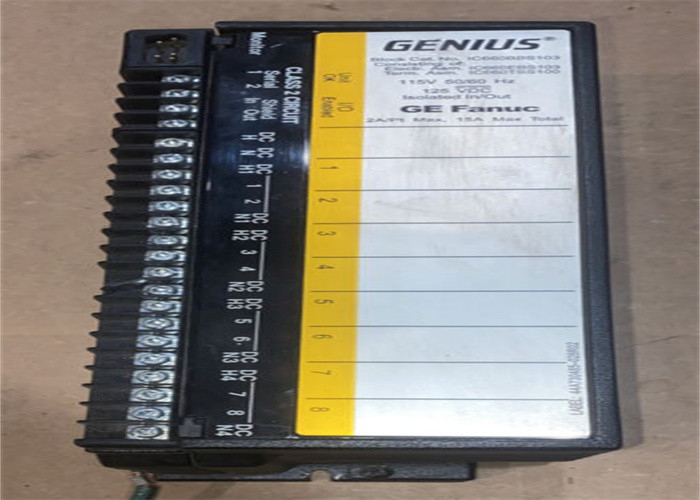

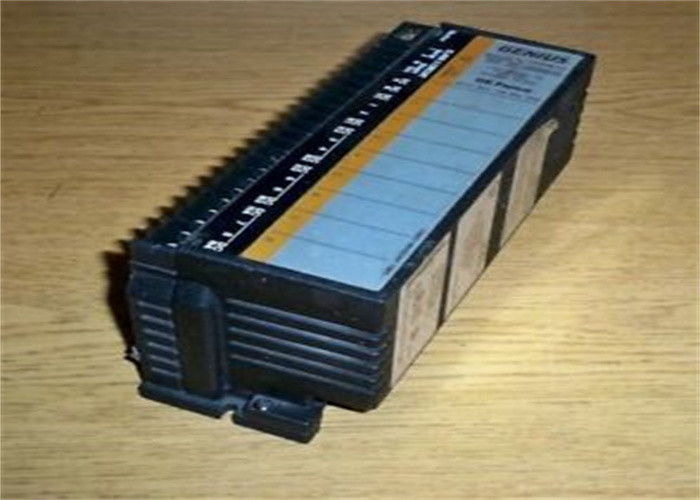

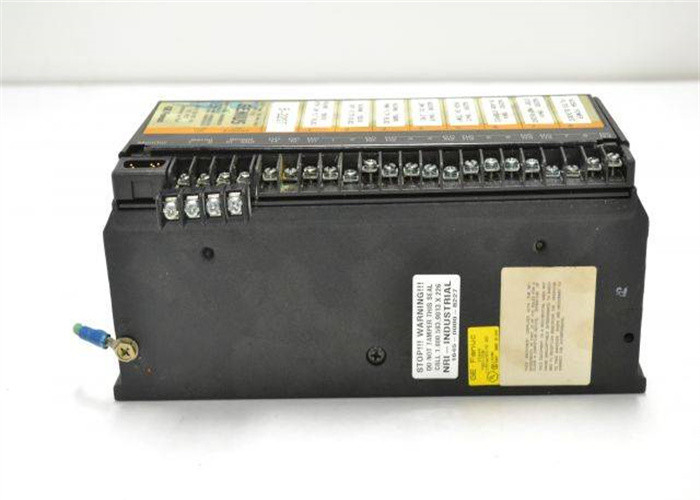

Description Of GE IC660BBS103 GENERAL ELECTRIC GENIUS BLOCK ASSEMBLY LOW LEAK ISOLATED I/O
Product Details:
Related Product Recommendation:
| GE | VCIB-16A | GE | DS200CDBAG1ACA |
| GE | VMIVME-7671-421000 | GE | DS200DCFBG2BNC |
| GE | 269PLUS-100P-120 | GE | DS200FCRRG1AKD |
| GE | 369-HI-0-0-0-0 | GE | DS200LDCCH1ARA |
| GE | 369-HI-R-0-0-0 | GE | DS200LRPAG1AGF |
| GE | 531X111PSHAPG3 | GE | DS200PCCAG5ACB |
| GE | 531X113PSFARG1 | GE | DS200PCCAG9ACB |
| GE | 531X123PCHACG1 | GE | IC693DSM302 |
| GE | 531X139APMARM7 | GE | IC693MDL330 |
| GE | 531X303MCPBCG1 | GE | IC693MDL646 |
| GE | 531X305NTBACG1 | GE | IC693MDL655 |
| GE | 531X305NTBAPG1 | GE | IC693MDL730 |
| GE | IC200ALG322 | GE | IC693MDL752 |
| GE | IC200ALG620 | GE | IC693PBS105 |
| GE | IC200ALG630 | GE | IC693PCM301 |
| GE | IC200CHS002 | GE | IC200MDL742 |
| GE | IC200MDL740 | GE | IC200CPUE05 |
| GE | IC3600LTGA | GE | IC200PWR101 |
| GE | IC3600TUAA1 | GE | IC200PWR001 |
| GE | IC660BBD025 | GE | IC693PWR330 |
| GE | IC670MDL640 | GE | IC694APU300 |
| GE | IC670PBI001 | GE | IC694BEM331 |
| GE | IC693ACC310 | GE | IC694MDL645 |
| GE | IC693ALG223 | GE | IC694MDL655 |
| GE | IC693ALG390 | GE | IC694MDL740 |
The IC660BBS103 is an eight circuit I/O isolated block by GE Fanuc. The block has a rated voltage of 115 VAC or 125 VDC with an input voltage range of between 93 VAC and 132 VAC. Output voltage range varies from 105 to 132 VDC with a load current of two Amps for every output point.
The IC660BBS103 block’s isolation can withstand a voltage of 250 VAC or VDC between two groups or between a group and a ground. It has a transient rating of 2000V for every 10 seconds. The block can be powered differently from the circuits with power being either AC or DC. The block’s control power can be tapped from the voltages of input/output devices which are wired to the terminals. There is electronic fusing for every circuit used for output. The circuit shuts down immediately after five microseconds in the event of a short circuit. The circuit can thereafter be restarted using a handheld monitor or a CPU. Some of the diagnostic checks include detection of sudden shutdowns, voltage overload, overheating, and detection of power loss to the circuits.
During block mounting, it is advisable to mount the block in a protective enclosure, clean and free from contaminants. It can be mounted facing up or down. It is important to leave two inches of space between blocks for ample ventilation. During field wiring, all terminals will accept 1 AWG #12 wire or 2 AWG #14 wires. The minimum wire size recommended is AWG #22. Ring terminals of up to 0.27 inches can be accommodated by the block. The recommended torque for the terminal screws is 0.678 N/M. Operating temperature for IC660BBS103 ranges from 0-60o C with storage temperature being -40o C to 80o C.
