AC Servo Amplifier Yaskawa SGDB Series Original Box Brand New

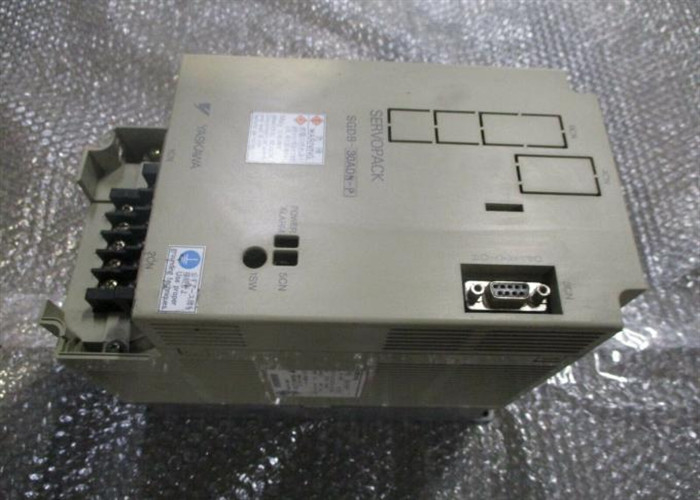

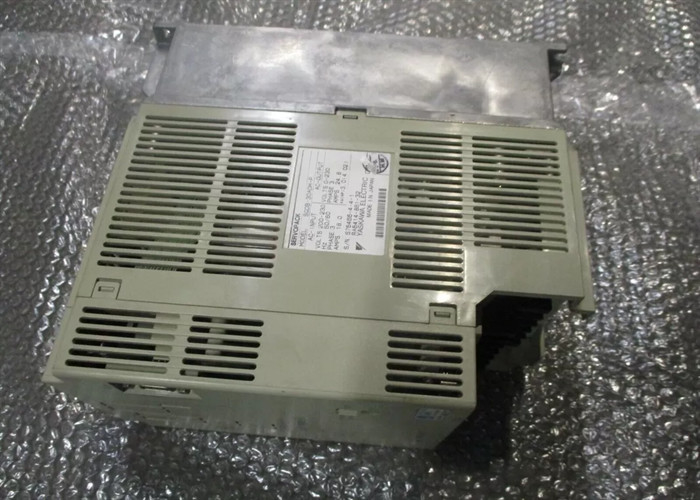

AC Servo Amplifier Yaskawa SGDB-30ADM In Original Box Brand New

Description:

SGDB-30ADM is a Drives-AC Servo produced by Yaskawa
Drive Type:SGDB AC Servo Drive
Rated Output:3.0kW
Supply Voltage:200V
Model:Torque, Speed, Position Control
Applicable motor series:SGMG (1000 RPM)
Option Specifications:None
Modification:None

Security module.

Maximum applicable motor power: 0.05kw.
Power supply voltage: three-phase AC200V.
Interface: MECHATROLINK-III communication command type (rotary servo motor).
Design Sequence: B.

Hardware Specification: Base mounting type (standard).

Optional module: Security module.
European EC standard: based on the integration of mechanical instruction standard ISO13849-1 EN,
safety module with separate standard 61800-5-2 IEC specific safety function.

The best safety design of the mechanical system can be easily achieved.

Torque Off Safe (STO)
Stop Safe 1 (SS1)
Stop Safe 2 (SS2)
can be safely set to Limit Speed (SLS)
2 Safety function, equipped with 2 safety functions.

Using servo units with a safety module, so that the system can be simplified and miniaturized. SGMCS small c

Power type of direct drive servo motor.

Rated torque: M/17N.
Servo motor outer diameter size: 290mm.

Serial encoder: 20 bit absolute value type (absolute value of 1 circle) (value).
Design sequence: The size of the outer diameter of the service motor is marked as the E model.
Flange specification: Face C, reverse load side (lead).

Optional specification: no match.
Under conditions of speed reduction, the load is driven directly.
Strong smooth running from low speed to high speed can be
realized (instantaneous max torque: 6~600N/m, max speed: 250~500r/min).

Using 20 bit high resolution encoder, high precision can be carried out.
The use of hollow structure, convenient wiring and piping.

Use example:

semiconductor manufacturing equipment.
Liquid crystal circuit board production equipment.
Various inspection and testing equipment.
Electronic parts packaging machine.

IC data processor.
IC inspection equipment.
A variety of automatic equipment.
Robots.

Small capacity rating and specification:

Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0~40°C.
Excitation mode: permanent magnet type.
Installation method: flange type.

Heat resistance grade: A.

Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation in the direction of load under the direction of rotation
