Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Japan | Brand: | Yaskawa |
|---|---|---|---|
| Model: | SGMAS-04ACA2C | Series: | SGMAS |
| Voltage: | 200V | Voltage Product Type: | AC |
| Power: | 0.4KW | INs: | A |
| High Light: | ewing machine servo motor,electric servo motor |
||

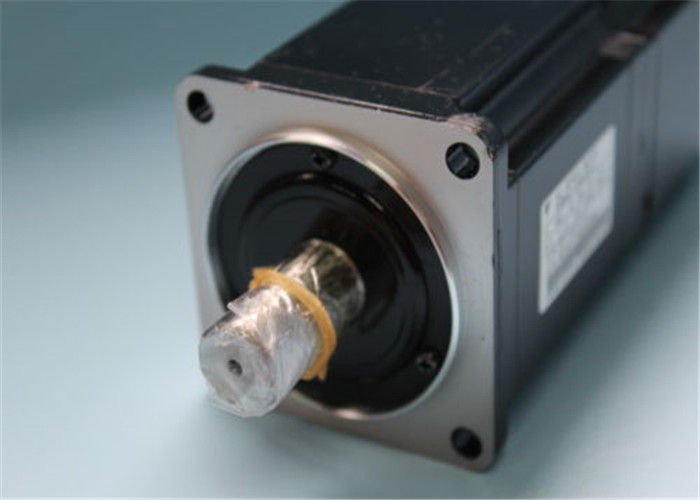

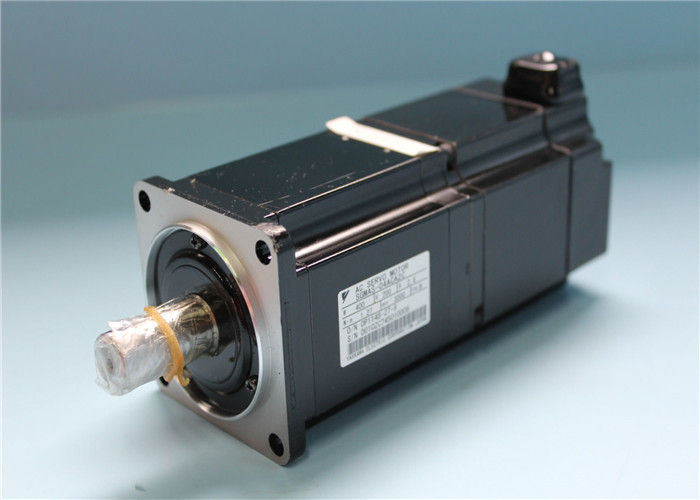

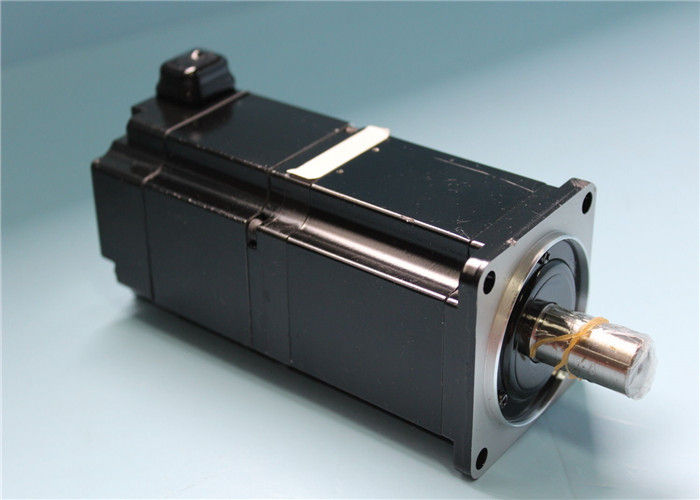

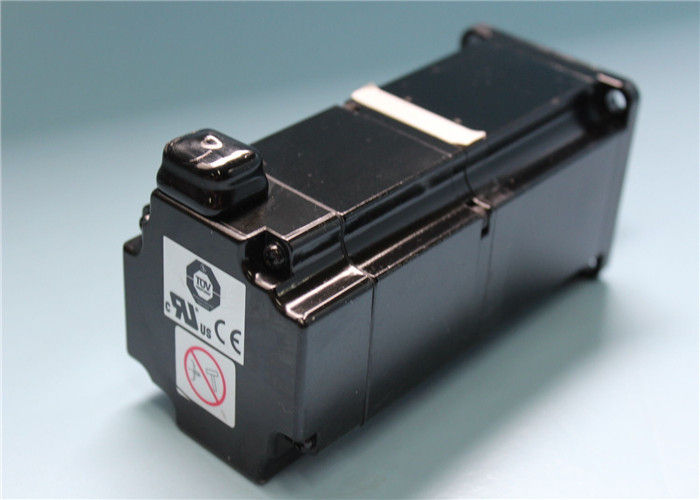

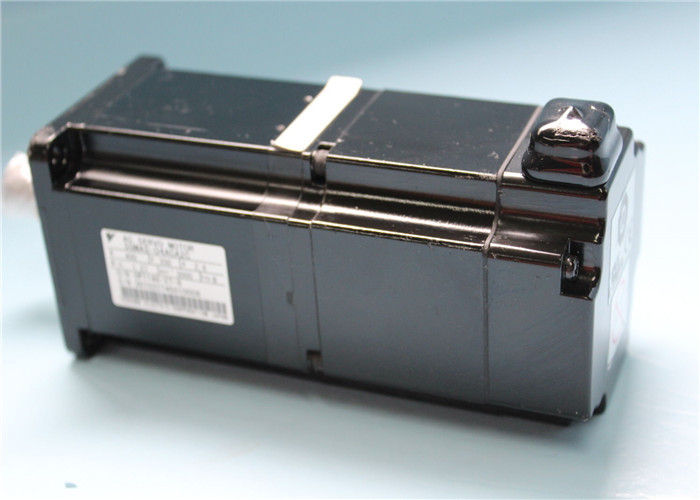

Industrial Servo Motor SGMAS-04ACA2C Yaskawa Electric Motors-AC Servo 400W
QUICK DETAILS
DESCRIPTION
SEPCIFICATIONS
| Brand | Yaskawa |
| Model | SGMAS-04ACA2C |
| Place of Origin | Japan |
| Type | AC motor |
| Rated Output | 0.4KW |
| Supply Volatge | 200V |
| ENcoder Specifition | 17-bit Incremental Encoder |
| Design Revision Order | A |
| Sharft End Specifition | Straight without key |
| Options | Without brake |
Grounding
(a) Motor Frame
Always connect servomotor frame terminal FG to the SERVOPACK ground terminal . Also be sure to ground the ground terminal .
If the servomotor is grounded via the machine, a switching noise current will flow from the SERVOPACK power unit through motor stray capacitance. The above grounding is required to prevent the adverse effects of switching noise.
(b) SynqNet Communication Cable
Make sure to keep the box or power line separate from the SynqNet communication cable because the cable is easily influenced by noise.
If noise is a problem, coil the communication cable two turns around the ferrite cores on the SERVOPACK end and the controller end. Refer to the following diagram.
(c) Noise on the Reference Input Line
If the reference input line receives noise, ground the 0 V line (SG) of the reference input line. If the main circuit wiring for the motor is accommodated in a metal conduit, ground the conduit and its junction box. For all grounding, ground at one point only.
All grounds must be made to only one point in the system.
Using Noise Filters
Use an inhibit type noise filter to prevent noise from the power supply line. The following table lists recommended noise filters for each SERVOPACK model.
Install a noise filter on the power supply line for peripheral equipment as necessary.
