Product Details:
Payment & Shipping Terms:
|
| Range Of Product: | Modicon Quantum Automation Platform | Country Of Origin: | France |
|---|---|---|---|

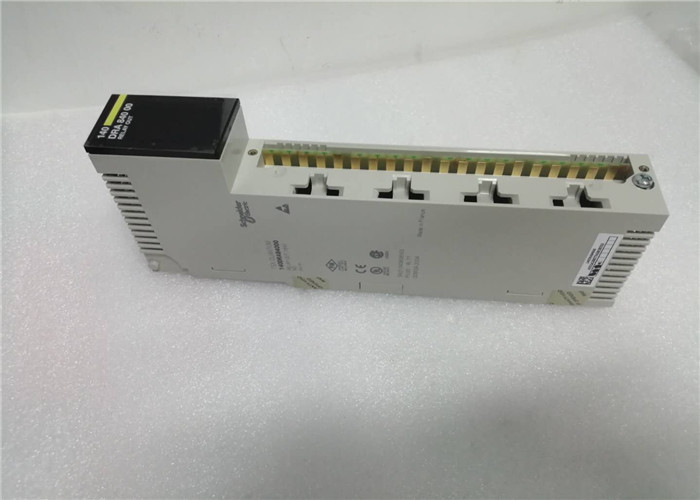

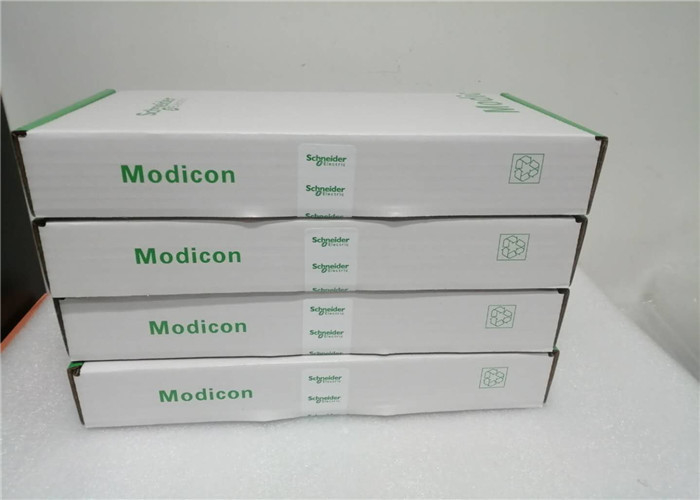

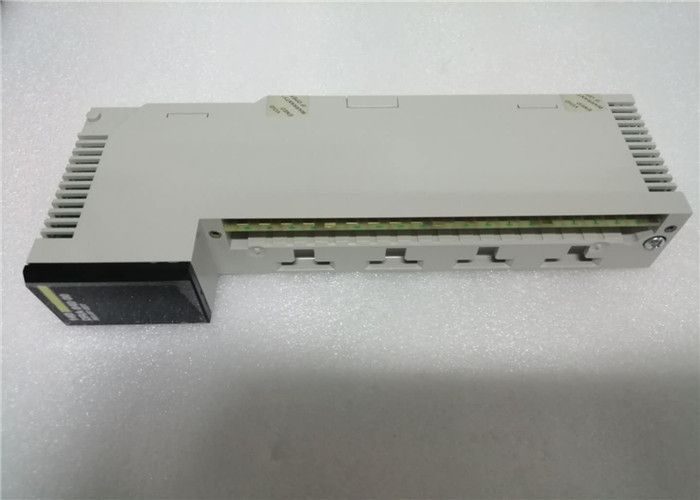

| Brand: | Schneider | PN: | 140EDK77100 |
| Condition: | Brand New | Type: | QUANTUM PROCESSOR |
| MOQ: | 1 PIECE | Warranty: | 1 Year |
| High Light: | quantum unity processor,modicon quantum cpu |
||
Quick details:
Similar Model Products
| Analog I/O modules | Discrete I/O modules | ||
| 140ACI03000 | 140DDI15310 | 140DAI55300 | 140DAO84210 |
| 140ACI04000 | 140DDI35300 | 140DAI74000 | 140DAO84220 |
| 140ACO02000 | 140DDI35310 | 140DAI75300 | 140DAO85300 |
| 140ACO13000 | 140DDI36400 | 140DSI35300 | 140DRA84000 |
| 140AII33000 | 140DDI67300 | 140DDO15310 | 140DRC83000 |
| 140AII33010 | 140DDI84100 | 140DDO35300 | 140DVO85300 |
| 140AIO33000 | 140DDI85300 | 140DDO35301 | 140DDM39000 |
| 140AMM09000 | 140DAI34000 | 140DDO35310 | 140DDM69000 |
| 140ARI03010 | 140DAI35300 | 140DDO36400 | 140DAM59000 |
| 140ATI03000 | 140DAI45300 | 140DDO84300 | 140DII33000 |
| 140AVI03000 | 140DAI54000 | 140DDO88500 | 140DIO33000 |
| 140AVO02000 | 140DAI54300 | 140DAO84000 | 140DAO84010 |
(1) CPUs updated with the Unity Pro firmware.
(2) The addition of a complete Ethernet RIO drop function is available for these CPUs with
Unity Pro u V7.0.
Unity Processor Modicon Quantum - 548 Kb - 66 Mhz
Quantum | 140EDK77100 | Modicon | 140 CPU 311 10 | Processor 400K RAM
Unity processor Modicon Quantum - 548 kB - 66MHz Integrated connection type 1 Modbus Plus 2 Modbus Checks Process control Memory description Internal RAM 548 kB Switch function Slide switch communication port : ASCII/RTU/Memory Slide switch memory port/off Application structure No auxiliary task 64 interrupt tasks 64 I/O interrupt tasks 16 timer interrupt tasks 1 periodic fast task 1 cyclic/periodic master task Execution time per instruction 0.12...0.585 μs on word 0.12...0.585 μs Boolean 0.1...0.27 μs on fixed-point arithmetic 0.1...0.27 μs floating points Execution time for 1 K instruction 2.49 65 % Boolean and 35 % numerical 1.86 100 % Boolean System overhead 1 ms - master task 0.2 ms - fast task Bus current requirement 1800 mA Local signalling 1 LED red for communications error on the Modbus Plus port (ERROR A) 1 LED red for battery needs replacing or is not present (BAT LOW) 1 LED orange for write-protected memory (memory port) 1 LED green for CPU has passed the power-up diagnostic tests (READY) 1 LED green for CPU has been started and is solving logic (RUN) 1 LED green for communications are active on the Modbus port (Modbus) 1 LED green for communications are active on the Modbus Plus port (Modbus Plus) Electrical connection 2 female connectors, connector type: SUB-D 9 for connecting to the Modbus bus 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network.
| Manufacturer: | Modicon Quantum |
| Series: | Quantum CPUs |
| Weight: | 2 lb |
| Clock frequency: | 66 MHz |
| Number of slots: | 10 |
| 16 | |
| 2 | |
| 4 | |
| 6 | |
| Number of racks: | 2 - local rack(s) |
| Number of distributed I/O station: | 63 station(s) - 1 rack(s) - 3 distributed network(s) |
| Number of remote I/O station: | 31 - 2 remote rack(s) |
| Discrete I/O number: | 8000 inputs, 8000 outputs - distributed - per network |
| 31744 inputs, 31744 outputs - remote | |
| Unlimited (27 slots max) - local | |
| Analogue I/O number: | 500 inputs, 500 outputs - distributed - per network |
| 1984 inputs,1984 outputs - remote | |
| Unlimited (27 slots max) - local | |
| Application specific I/O: | Accurate time stamping |
| Counter | |
| High-speed interrupt inputs | |
| Serial link | |
| Number of optional modules: | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections: | Unlimited (AS-Interface) - local |
| 4 (AS-Interface) - remote | |
| 2 (Profibus DP) - local | |
| 2 (Modbus) - RS232/485 Modbus/ASCII | |
| 2 (Modbus Plus) - local | |
| 2 (Ethernet TCP/IP) - local | |
| 2 (AS-Interface) - distributed | |
| 1 (USB) | |
| Integrated connection type: | 1 Modbus Plus |
| 2 Modbus | |
| Checks: | Process control |
| Memory description: | Internal RAM 548 kB |
| Switch function: | Slide switch communication port : ASCII/RTU/Memory |
| Slide switch memory port/off | |
| Application structure: | No auxiliary task |
| 64 interrupt tasks | |
| 64 I/O interrupt tasks | |
| 16 timer interrupt tasks | |
| 1 periodic fast task | |
| 1 cyclic/periodic master task |
|
Category |
18150 - QUANTUM CONTROLLERS,HSBY,COMM. |
|
|---|---|---|
|
Discount Schedule |
PC21 |
|
|
GTIN |
00785901663386 |
|
|
Nbr. of units in pkg. |
1 |
|
|
Package weight(Lbs) |
1.7 |
|
|
Returnability |
Y |
|
|
Country of origin |
FR |
|
Sustainable offer status |
Green Premium product |
|
|---|---|---|
|
RoHS (date code: YYWW) |
Compliant - since 0948 - Schneider Electric declaration of conformity Schneider Electric declaration of conformity |
|
|
REACh |
|
|
|
Product environmental profile |
Available |
|
|
Product end of life instructions |
Available |
1 Primary ring, copper/fiber optic medium
3 Ethernet head adaptor 140DII33000 installed in the Quantum™ rack.
4 ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)
5 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)
6 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)
7 Modicon™ STB Ethernet DIO (3) (4)
8 Connection to Ethernet DIO device cloud, copper medium only
9 Ethernet DIO device cloud (3)
10 Ethernet communication module 140NOE771
11 Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)
