Product Details:
Payment & Shipping Terms:
|
| Brand: | Mitsubishi | Model: | HC203S-A42 |
|---|---|---|---|
| Rated Speed: | 3000r/min | Series: | HC |
| Rated Output Power: | 2kw | Category: | Industrial Servo Motor |
| High Light: | Industrial Servo Motor HC203S-A42,2kw Mitsubishi Industrial Servo Motor,HC203S-A42 Ac Servo Motor |
||

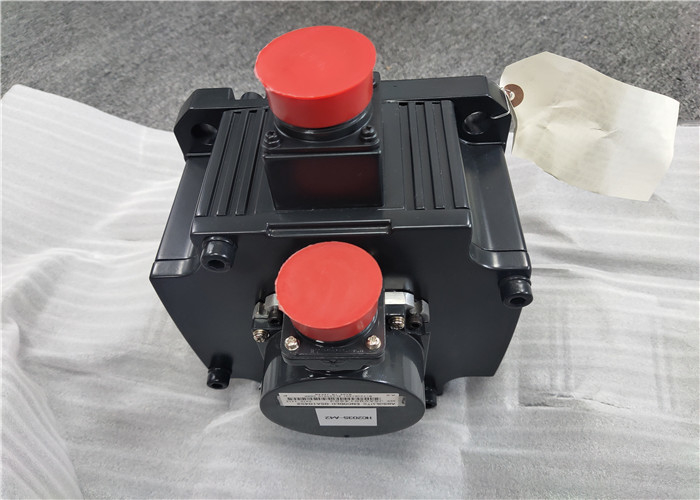

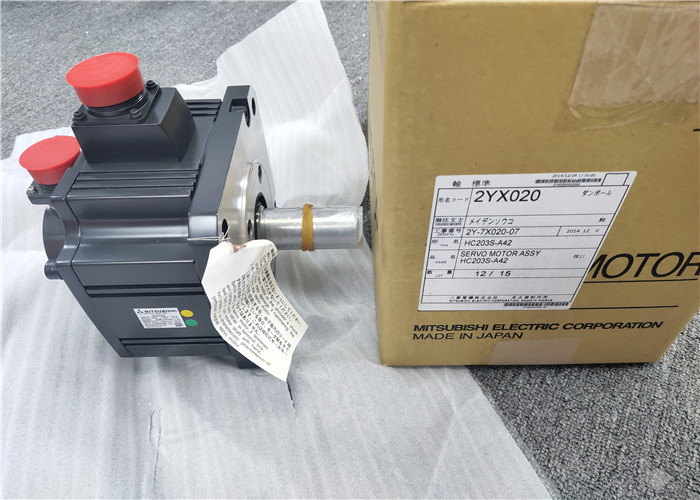

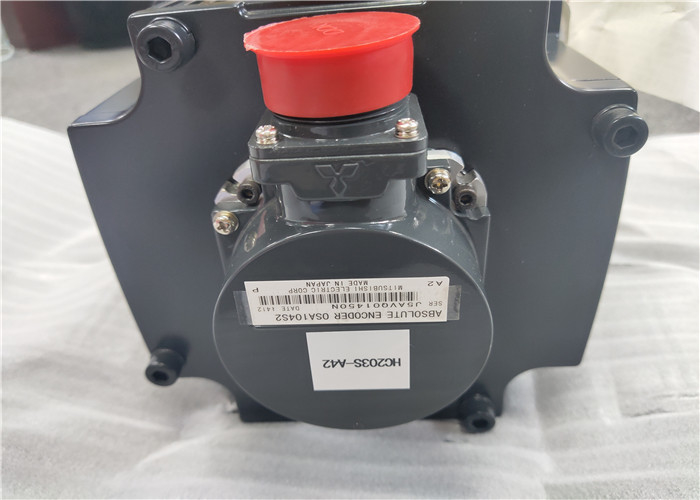

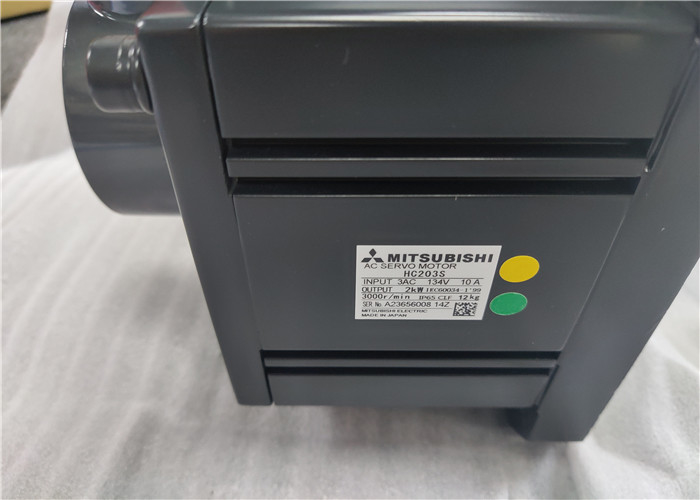

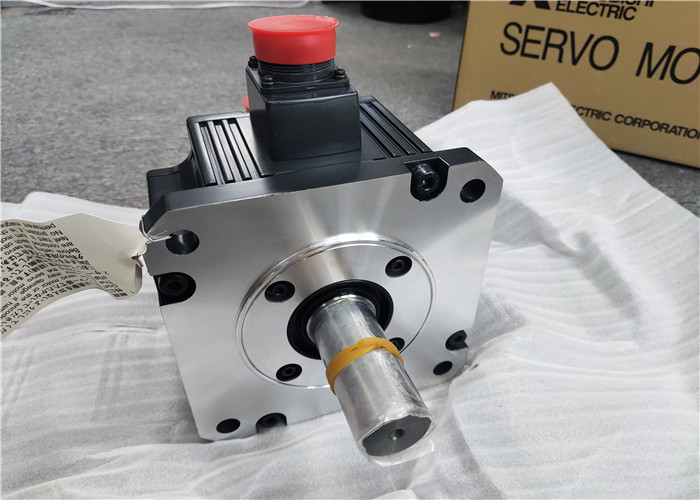

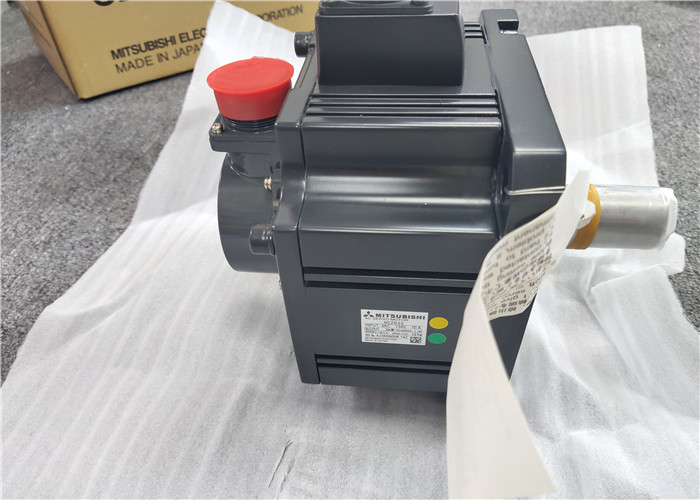

Mitsubishi Industrial Servo Motor HC203S-A42 3000r/min 2kw
Performing EMC tests
When EMC tests are run on a machine/device into which the servo motor has been installed, it must
conform to the electromagnetic compatibility (immunity/emission) standards after it has satisfied the
operating environment/electrical equipment specifications.
For the other EMC directive guidelines on the servo motor, refer to the EMC Installation Guidelines
Application example:
1, material handling system.
2, industrial robots.
3, X-Y working table.
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Motor capacity selection soft (MRZJW3-MOTSZ111E)
Friendly interface design, only in the mechanical description window input constant and operation mode can choose the best servo amplifier,
The servo motor and the regenerative braking options, but also in the selection window in the selection of linear servo motor and direct drive motor.
