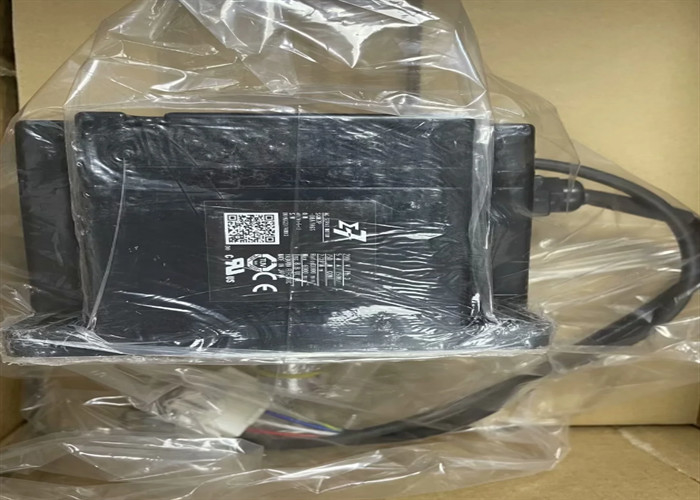

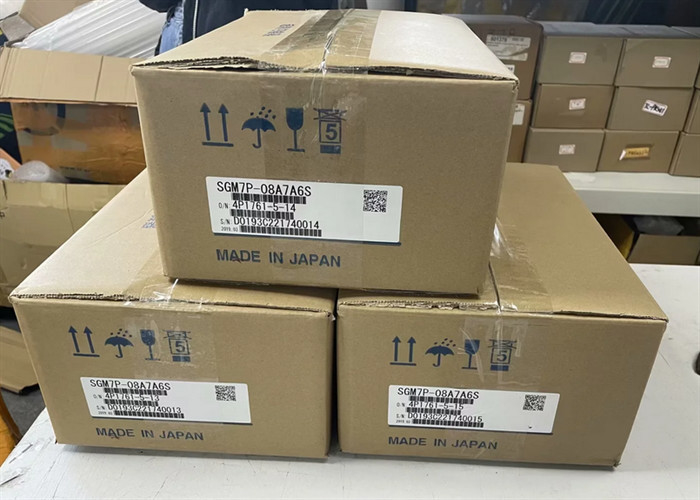

100v SGM7P-08A7A6S Yaskawa Ac Servo Motor For Industry

: Large Image : 100v SGM7P-08A7A6S Yaskawa Ac Servo Motor For Industry

Product Details:

Place of Origin:	Japan
Brand Name:	Yaskawa
Certification:	CE
Model Number:	SGM7P-08A7A6S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact
Packaging Details:	NEW AND ORIGINAL
Delivery Time:	3-5DAYS
Payment Terms:	T/T, Western Unionm,PAYPAL
Supply Ability:	1000

Contact Now

Detailed Product Description

Brand:	Yaskawa	Model Number:	SGM7P-08A7A6S
Country Of Origin:	Japan	Type:	Servo Motor
Delivery Time:	2-3days	Power - Rated:	850w
Voltage - Rated:	100, 200VAC	RPM:	3000 RPM
Weight:	0.705 Lb (319.78g)
High Light:	SGM7P-08A7A6S Yaskawa Ac Servo Motor , 100v Yaskawa Ac Servo Motor , SGM7P-08A7A6S Servo Motor In Industry

SGM7P-08A7A6S Yaskawa Industrial AC Servo Motor 5KW 3000RPM three phase AC200V

Product description SGM7P-08A7A6S Yaskawa Industrial AC Servo Motor
Servo motor SGMSH type.
Rated speed: 3000r/min.
Power: 5.0kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit absolute value.
Design sequence: A SGM7P-08A7A6S PDF.
Shaft end: straight shaft without key.
Optional parts: with DC90V brake.
Ultra high power response series: the need for small inertia, high torque.
24-bit encoder resolution
More compact size, for easier use in tight spaces
Up to 14.3 N∙m (126 lb∙in) of acceleration torque from motors less than 5 inches long
Completely compatible with existing Sigma-5 servos
Neodymium iron boron permanent magnets with a high flux density reduce rotor size
Flange widths from 60 to 120 mm (2.36 to 4.72 in)
Advanced magnetic circuitry and optimum winding geometry deliver very low cogging torque
Safety rated at SIL 3 (IEC 61508)
Peak acceleration torque up to 300% of rated torque
Peak torque can be maintained for up to three seconds
Rated speed of 3,000 rpm, max speed of 6,000 rpm
IP67 rated for resistance to dust, water washdown
Functions in temperatures above 60oC, altitudes above 2000 ft.
Runs 20% cooler than previous generation products
Holding Brake and Shaft Seal options available

Technical Details

INPUT POWER SUPPLY
200 V

RATED OUTPUT
0.75 kW

SHAFT END
Straight with key and tap

ENCODER RESOLUTION
24 bit

ENCODER TYPE
Absolute

OPTIONS
With oil seal

HEIGHT
94.7 mm

WIDTH
80 mm

DEPTH
137 mm

WEIGHT
2.3 kg

ALLOWABLE LOAD MOMENT OF INERTIA
20 Times

RATED TORQUE
2.39 Nm

INSTANTANEOUS MAXIMUM TORQUE
8.36 Nm

RATED MOTOR SPEED
3,000 1/min

MAXIMUM MOTOR SPEED
6,000 1/min

MOTOR MOMENT OF INERTIA
0.775 x10⁻⁴ kg·m²

FLANGE DIMENSION (LC)
80 mm

FLANGE DIAMETER (LA)
90 mm

SHAFT END DIAMETER (S)
19 mm

SHAFT END LENGTH (Q)
40 mm
