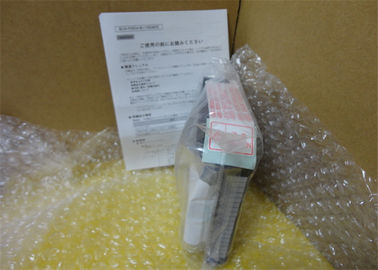

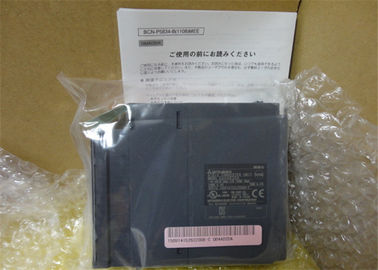

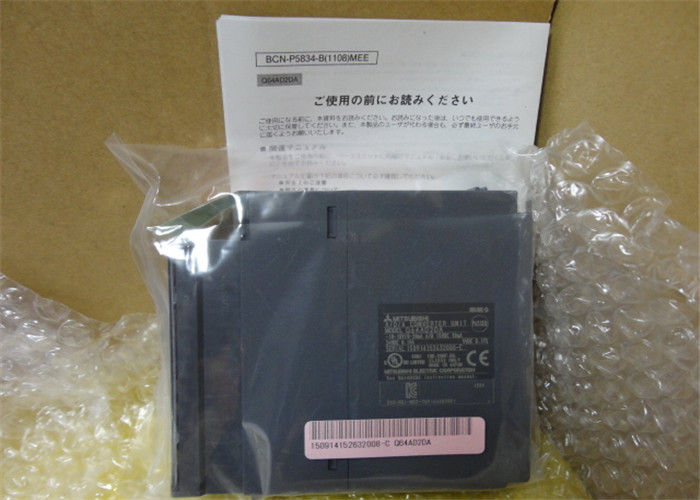

Mitsubishi Q64AD2DA Universal model Redundant Power Supply Module





Q64AD2DA Description

The Mitsubishi Electric Q64AD2DA is a high-performance, dual-function intelligent module for the MELSEC-Q series of Programmable Logic Controllers (PLCs). This single module combines both Analog-to-Digital (A/D) and Digital-to-Analog (D/A) conversion capabilities, allowing it to interface with a wide range of analog sensors and actuators. It can read analog signals from devices like temperature sensors, pressure transmitters, and flow meters (A/D function), and simultaneously output analog control signals to devices like inverters (VFDs), proportional valves, and servo controllers (D/A function). Its integration into the MELSEC-Q system simplifies control cabinet design, saves space, and reduces the number of modules required for complex automation tasks.

Q64AD2DA Features

  • •
    2-in-1 Functionality:Integrates 4 channels of analog input (A/D) and 2 channels of analog output (D/A) in a single module, optimizing control cabinet space and cost.
  • •
    High Resolution and Accuracy:Offers 16-bit high resolution for both input and output, ensuring precise measurement and control. It features high accuracy (e.g., ±0.1% of full scale for voltage inputs) for demanding applications.
  • •
    Flexible I/O Ranges:Supports user-selectable voltage and current ranges for maximum flexibility (e.g., 0-10V, 0-5V, 4-20mA).
  • •
    Intelligent Function:As an intelligent module, it offloads processing from the main CPU. It can perform scaling, setting changes, and other data processing independently, improving the overall scan time of the PLC system.
  • •
    Easy Configuration and Monitoring:Parameters such as range settings and scaling are easily configured using GX Works2, Mitsubishi's engineering software. The module's status can be monitored in real-time.
  • •
    High Noise Immunity:Designed with advanced isolation and filtering techniques to ensure stable operation in electrically noisy industrial environments.

Q64AD2DA Material & Application

  • •
    Primary Materials:The module is constructed with a Flame Retardant Plastic Resinhousing. The internal circuitry uses a Fiberglass-Reinforced Epoxy PCBwith electronic components including ICs, resistors, capacitors, and opto-isolators. Connectors are typically phosphor bronzewith a gold-platedfinish for reliable contact.
  • •
    Primary Applications:
    • •
      Industrial Process Control:Monitoring and controlling parameters like temperature, pressure, level, and flow in chemical, pharmaceutical, and food & beverage plants.
    • •
      Factory Automation:Interfacing with analog sensors on production lines and sending speed references to motor drives.
    • •
      Environmental Control Systems:Managing HVAC systems in buildings.
    • •
      Test and Measurement Rigs:Data acquisition and control in R&D environments.

Q64AD2DA Important Parameters

The following table summarizes the key specifications of the Q64AD2DA module.
Parameter
Specification
Notes
Module Type
Intelligent Analog I/O Module
For MELSEC-Q Series PLCs
Number of Channels
4 Inputs (A/D) + 2 Outputs (D/A)

Resolution
16-bit (1/32000 scale)
For both input and output
Input Types (Selectable)
DC -10 to +10V, 0 to 10V, 0 to 5V, 4 to 20mA, etc.
Set per channel
Output Types (Selectable)
DC 0 to 10V, 0 to 5V, 4 to 20mA, etc.
Set per channel
Accuracy (at 25°C ±5°C)
Voltage: ±0.1% of full scale
Current: ±0.2% of full scale

Conversion Speed
Approx. 80 µs/channel

Isolation
Photocoupler isolation between I/O terminals and PLC.
Analog channels are not isolated from each other.
External Power Supply
DC 24V +10%/-15%
Required for the analog circuit
Internal Current Consumption
5V DC: 0.33A (from base module)

Compatible Software
GX Works2, GX Developer
For parameter setting and programming
Weight
Approx. 0.2 kg



性能仕様

入力仕様
アナログ入力点数
アナログ入力 電圧
電流
デジタル出力
入出力特性,分解能 入力レンジ
電圧入力 0～10V
0～5V
1～5V
1～5V(拡張モード)
-10～10V
電流入力 0～20mA
4～20mA
4～20mA(拡張モード)
精度(デジタル出力値の最大値に対する精度) 周囲温度:25±5℃
周囲温度:0～55℃
A/D変換速度
絶対最大入力 電圧
電流
出力仕様
アナログ出力点数
デジタル入力
アナログ出力 電圧
電流
入出力特性,分解能 出力レンジ
電圧出力 0～5V
1～5V
-10～10V
電流出力 0～20mA
4～20mA
精度(アナログ出力値の最大値に対する精度) 周囲温度:25±5℃
周囲温度:0～55℃
D/A変換速度
絶対最大出力 電圧
電流
出力短絡保護
共通仕様
絶縁方式
絶縁耐圧
絶縁抵抗
外部供給電源 電圧
電流
外部配線接続方式
入出力占有点数
DC5V内部消費電流
外形寸法 高さ(H)
幅(W)
奥行き(D)
質量

4点(4チャンネル)
DC-10～+10V(入力抵抗値:1MΩ)
DC0～20mA(入力抵抗値:250Ω)
通常分解能モード:-96～+4095,-4096～+4095,-1096～+4595
高分解能モード:-384～+16383,-288～+12287,-16384～+16383,-3288～+13787
デジタル出力値(最大分解能)
通常分解能モード:0～4000(2.5mV)
高分解能モード:0～16000(0.625mV)
通常分解能モード:0～4000(1.25mV)
高分解能モード:0～12000(0.416mV)
通常分解能モード:0～4000(1.0mV)
高分解能モード:0～12000(0.333mV)
通常分解能モード:-1000～4500(1.0mV)
高分解能モード:-3000～13500(0.333mV)
通常分解能モード:-4000～4000(2.5mV)
高分解能モード:-16000～16000(0.625mV)
通常分解能モード:0～4000(5µA)
高分解能モード:0～12000(1.66µA)
通常分解能モード:0～4000(4µA)
高分解能モード:0～12000(1.33µA)
通常分解能モード:-1000～4500(4µA)
高分解能モード:-3000～13500(1.33µA)
±0.1％
±0.4％
500µs／チャンネル
±15V
±30mA

2点(2チャンネル)
通常分解能モード:-96～+4095,-4096～+4095
高分解能モード:-288～+12287,-16384～+16383
DC-10～+10V(外部負荷抵抗値:1MΩ)
DC0～20mA(外部負荷抵抗値:600Ω)
デジタル入力値(最大分解能)
通常分解能モード:0～4000(1.25mV)
高分解能モード:0～12000(0.416mV)
通常分解能モード:0～4000(1.0mV)
高分解能モード:0～12000(0.333mV)
通常分解能モード:-4000～4000(2.5mV)
高分解能モード:-16000～16000(0.625mV)
通常分解能モード:0～4000(5µA)
高分解能モード:0～12000(1.66µA)
通常分解能モード:0～4000(4µA)
高分解能モード:0～12000(1.33µA)
±0.1％
±0.3％
500µs／チャンネル
±12V
21mA
あり

入出力端子とシーケンサ電源間:フォトカプラ絶縁
入出力端子とシーケンサ電源間:AC500Vrms　1分間
入出力端子とシーケンサ電源間:DC500V　20MΩ以上
DC24V(+15/-15％,リップル,スパイク500mVp-p以下)
0.19A(突入電流:4.1A,180µs以下)
A/D変換部,D/A変換部:18点ネジ端子台(M3ネジ)
外部供給電源DC24V,FG接続:外部供給電源コネクタ
16点(I/O割付:インテリ 16点)
0.17A
98mm
27.4mm
112mm
0.23kg
