Product Details:
Payment & Shipping Terms:
|
| Category: | Transmitter Spare Parts | Type: | Seal |
|---|---|---|---|
| Seal System Type: | Direct Mount, Remote Mount, Tuned-System, Balanced System | Transmitter Connection: | Welded-Repairable, All Welded |
| Process Connection: | Flanged: ANSI/ASME, EN/DIN, GOST, & JIS Threaded: NPT, DIN, ISO Hygienic | Process Wetted Material: | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST |
| High Light: | high temperature differential pressure transmitter,absolute pressure transmitter |
||
New Transmitter Rosemount DP Level Transmitters and 1199 Seal Systems

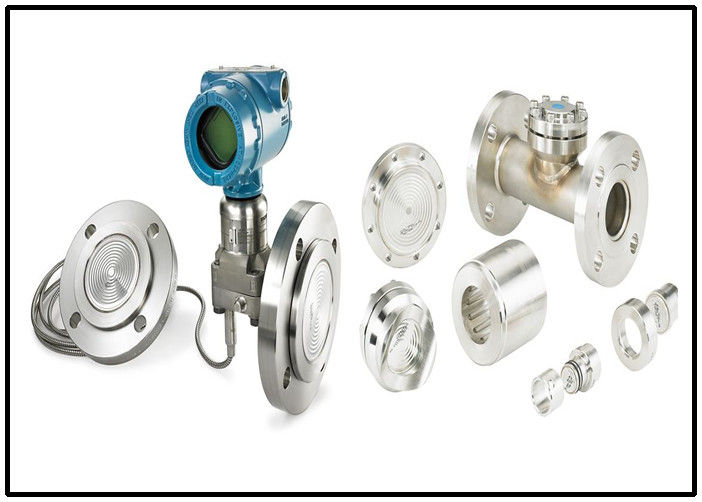

Rosemount™ 1199 Diaphragm Seal System
The Rosemount 1199 Diaphragm Seal System offers protection to transmitters, guarding against hot and cold, corrosive or erosive processes. This seal system features a variety of solutions, including industry-specific seals for difficult processes. This safety certified system does not require mounting hardware and can be used for many pressure measurement applications, providing reliable, remote measurements.
Applications
Level, Flow, Pressure, Interface, Density
Extreme hot and cold temperatures
Corrosive, clogging, or viscous processes
Hygienic requirements
Special process connections
Specifications:
| Seal System Type | Direct Mount, Remote Mount, Tuned-System, Balanced System |
| Transmitter Connection | Welded-Repairable, All Welded |
| Process Connection |
Flanged: ANSI/ASME, EN/DIN, GOST, & JIS |
| Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST, see PDS for full list of materials |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, 3A, NACE®, hazardous location, see PDS for full list of certifications |
| Process Connection | Flanged: ANSI/ASME, EN/DIN, GOST, & JIS Threaded: NPT, DIN, ISO Hygienic |
| Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST, see PDS for full list of materials |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, 3A, NACE®, hazardous location, see PDS for full list of certification |

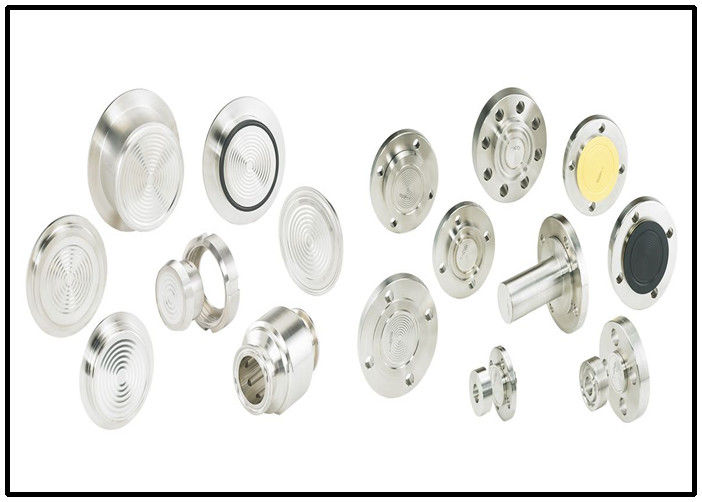

Rosemount 1199 Seal Systems
A seal system consists of a pressure transmitter, one or two seals, a fill fluid, and either a direct mount or capillary style connection.
Seal systems provide a reliable process pressure measurement and prevent the process medium from contacting the transmitter diaphragm. Transmitter/diaphragm seal systems should be considered when:
The process temperature is outside of the operating ranges of the transmitter.
The process is corrosive and/ or requires specific exotic materials of construction.
The process contains suspended solids or is viscous and is prone to plugging of connections.
The application requires the use of flush-mount hygienic connections that facilitates CIP/SIP service.
There is a requirement for easier cleaning of the process from the connections to avoid contamination between batches.
Application flexibility
Flanged, threaded, and hygienic process connections
Meets industry standards such as EN 1092-1, ANSI/ASME B16.5, JIS B2238,
ANSI/ASME B1.20.1, EN 10226-1, GOST 12815-80, China Chemical Industrial
Standards HG20615 and HG20592, and 3-A Standard 74-03
Variety of fill fluids including cold temperature, hot temperature, and hygienic &
food grade
Three different capillary diameters allow for optimization of accuracy and time
response
When ordering Rosemount 1199 Direct and Remote Mount Seals, add the correct seal system ordering code to the transmitter model.
Rosemount 1199 Direct Mount Seal Systems Ordering Information
The Standard offering represents the most common options. The starred options should be selected for best delivery.
The Expanded offering is subject to additional delivery lead time.
Rosemount 1199 Remote Mount Seal Systems
Continue specifying a completed model number by choosing a remote seal type below:
If you need more order information , we can send you the complete datasheet.
