Smart Fluid Diagnostic Pressure Temperature Transmitter Rosemount 8800 Vortex Flow Meter

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

Smart Fluid Diagnostic Pressure Temperature Transmitter Rosemount 8800 Vortex Flow Meter

Large Image :  Smart Fluid Diagnostic Pressure Temperature Transmitter Rosemount 8800 Vortex Flow Meter

Product Details:

Place of Origin: Singapore
Brand Name: Emerson-Rosemount
Certification: CE
Model Number: 8800

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 4500 USD
Packaging Details: New Original Box
Delivery Time: 1-2 week
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Category: Transmitter Type: Flowmeter
Turndown: 38:1 Output Signal: 4-20 MA /HART Protocol
Wetted Material: 316SS Operating Temperatures: -330°F To 842°F (-200°C To 450°C)
High Light:

differential pressure flow transmitter

,

absolute pressure transmitter


Pressure Temperature Transmitter Rosemount 8800 Series Vortex Flow Meters


All of Rosemount orders will be ordered according to your requirements!


Specifications:


Flow Meter Accuracy± 0.65% of volumetric rate for liquids
± 1% of volumetric rate for gas and steam
± 0.70% of mass flow rate in water using MultiVariable option
± 2% of mass flow in steam using MultiVariable option
Turndown38:1
Output4-20 mA with HART® 5 or 7
4-20 mA with HART® 5 or 7 and Scalable Pulse Output
FOUNDATION; fieldbus ITK6 with 2 Analog Input blocks, 1 Backup Link Active Scheduler function block, and 1 Integrator function block (1 PID function block optional)
Wetted MaterialStainless Steel – 316 / 316L and CF3M
Nickel Alloy – C-22 and CW2M
High Temp Carbon Steel – A105 and WCB
Low Temp Carbon Steel – LF2 and LCC
Duplex UNS S32760 and 6A
Consult factory for other wetted material options
Flange OptionsANSI Class 150 to 1500
DIN PN 10 to PN 160
JIS 10K to 40K
Flanges are available in a variety of facings
Consult factory for additional flange ratings
Operating Temperatures-330°F to 842°F (-200°C to 450°C)
Line SizeFlanged: ½-in to 12-in (15 to 300 mm)
Wafer: ½-in to 8-in (15 to 200 mm)
Dual: ½-in to 12-in (15 to 300 mm)
Reducer: 1-in to 14-in (25 to 350 mm)





Description:

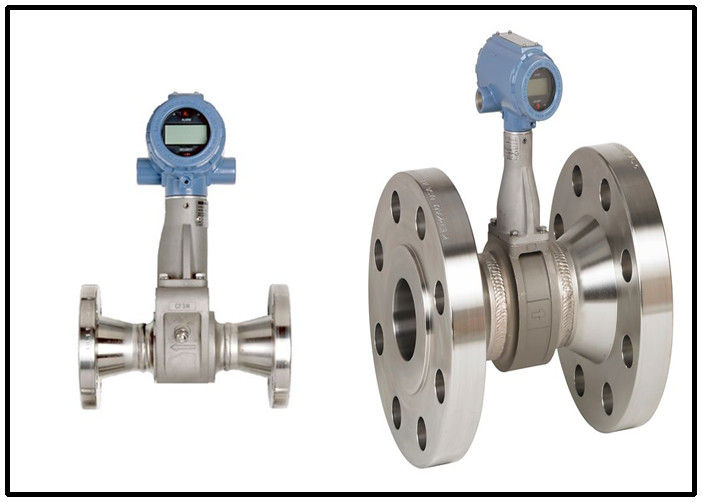

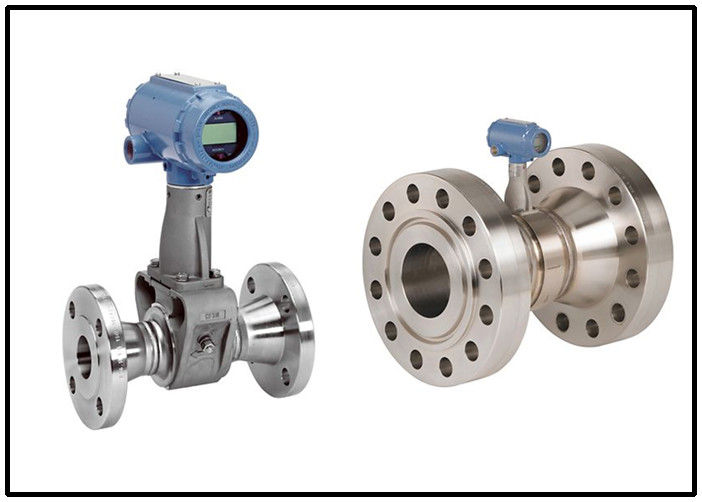

Rosemount 8800 Series Vortex Flow Meters



Rosemount 8800 Series Vortex Flow Meters offer world-class reliability with a gasket-free, non-clog meter body that eliminates potential leak points, resulting in maximum process availability and fewer unscheduled shutdowns. The unique design of Emerson's Rosemount 8800 Vortex Flow Meters features isolated sensors that eliminate the need to break process seals for flow and temperature sensor replacement.




Features


  • The unique isolated sensor design allows for replacement without breaking the process seal
  • Increase plant availability and reduce potential leak points with a gasket-free meter body with no moving parts
  • Eliminate downtime and maintenance costs associated with plugged impulse lines with a non-clog meter body design
  • Achieve vibration immunity with a mass balanced sensor and Adaptive Digital Signal Processing with visual filtering
  • A standard internal signal generator included in every meter simplifies electronics verification
  • All meters arrive pre-configured and hydrostatically tested, making them ready and easy to binstall
  • Simplify SIS compliance with available dual and quad Vortex flow meters

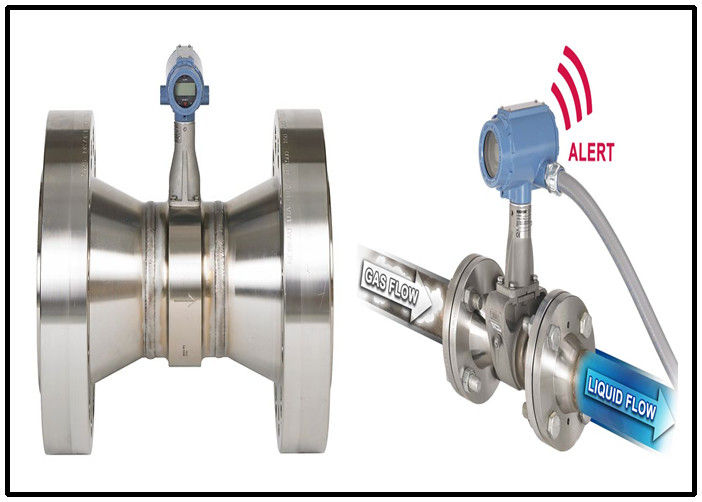

  • Detect liquid to gas phase change using Smart Fluid Diagnostics


Detect process fluid changes with SMART Fluid Diagnostics


1. Oil and gas separators

 Remotely detect when your separator dump valve allows gas to pass through your water dump leg.
 Selectable alert modes (digital, analog or pulse) signal when gas flow is detected.


2. Steam, nitrogen, or air blow down

 Control your clean in place (CIP) or blow down cycles with a single meter that measures the flow rate of your primary process fluid as well as the change from liquid to gas flow.
 Set your control system to control down cycle based on alert from in-line vortex meter.
 Selectable alert modes (digital, analog or pulse) signal when gas flow is detected.






Rosemount 8800D Vortex Flowmeter ​Ordering Information (A Part)






Dimensional drawings​ ( A part )





If you need more order information , we can send you the complete datasheet.


Certifications:

1.Certificate of Origin

2.Calibration Certificate

3.Material Traceability Certification


Rosemount items we sold before:



 Good Service in WTL:
>We offer high quality, fast delivery, competitive price for Rosemount Transmitter and Flow Meter.
>Please send your RFQ to get the latest price.
>Normally, we will ship the items in 1-2 weeks after receive the payment.
>We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
>We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.



 Liability:


WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.
