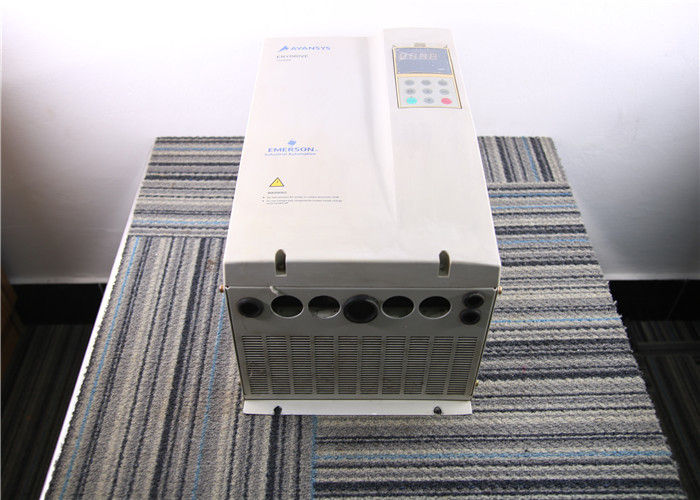

11KW / 15KW Variable Frequency Inverter For Single Phase Motor TD2000 TD2100

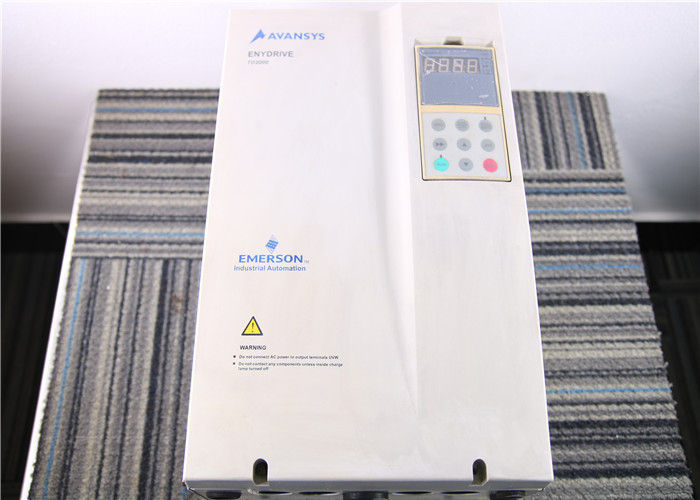

Emerson Variable Frequency Inverter TD2000 5.5KW / 7.5KW / 11KW / 15KW





Main Models of Variable Frequency Inverter TD2100:





TD2100-4T0055S 5.5KW

TD2100-4T0075S 7.5KW

TD2100-4T0110S 11KW

TD2100-4T0150S 15KW

TD2100-4T0185S 18.5KW

TD2100-4T0220S 22KW

TD2100-4T0300S 30KW

TD2100-4T0370S 37KW

TD2100-4T0450S 45KW

TD2100-4T0550S 55KW

TD2100-4T0750S 75KW







The Parts of Emerson Variable Frequency Inverter and others





Part I.





1.  TD900 Series (Single Phase)





Item	Model	Product Series	Power (KW)
1180100	TD900-2S0004G	TD900	0.4KW
1180099	TD900-2S0007G	TD900	0.75KW
1180102	TD900-2T0015G	TD900	1.5KW
1180103	TD900-2T0022G	TD900	2.2KW





2.  TD900 Series (Three Phase)





Item	Model	Product Series	Power (KW)
1180104	TD900-4T0007G	TD900	0.75KW
1180101	TD900-4T0015G	TD900	1.5KW
1180105	TD900-4T0022G	TD900	2.2KW





3.  EV1000 Series (Single Phase)




Item	Model	Product Series	Power (KW)
1180173	EV1000-2S0004G	EV1000	0.4KW
1180174	EV1000-2S0007G	EV1000	0.75KW
1180126	EV1000-2S0015G	EV1000	1.5KW
1180131	EV1000-2S0022G	EV1000	2.2KW

4.  EV1000G Series (Three Phase)





Item	Model	Product Series	Power (KW)
1180125	EV1000-4T0007G	EV1000	0.75KW
1180124	EV1000-4T0015G	EV1000	1.5KW
1180123	EV1000-4T0022G	EV1000	2.2KW
1180127	EV1000-4T0037G	EV1000	3.7KW
1180129	EV1000-4T0055G	EV1000	5.5KW





5.  EV1000P Series (Three Phase)





Item	Model	Product Series	Power (KW)
1180128	EV1000-4T0037P	EV1000	3.7KW
1180130	EV1000-4T0055P	EV1000	5.5KW

6.  EV2000 Series



Item	Model	Product Series	Power (KW)
1180108	EV2000-4T0055G	EV2000	5.5KW
1180112	EV2000-4T0075G	EV2000	7.5KW
1180115	EV2000-4T0110G	EV2000	11KW
1180116	EV2000-4T0150G	EV2000	15KW
1180117	EV2000-4T0185G	EV2000	18.5KW
1180118	EV2000-4T0220G	EV2000	22KW
1180119	EV2000-4T0300G	EV2000	30KW
1180120	EV2000-4T0370G	EV2000	37KW
1180121	EV2000-4T0450G	EV2000	45KW
1180097	EV2000-4T0550G	EV2000	55KW
1180111	EV2000-4T0750G	EV2000	75KW
1180110	EV2000-4T0900G	EV2000	90KW
1180156	EV2000-4T1100G	EV2000	110KW
1180157	EV2000-4T1320G	EV2000	132KW
1180138	EV2000-4T1600G	EV2000	160KW
1180132	EV2000-4T2000G	EV2000	200KW
1180133	EV2000-4T2200G	EV2000	220KW
1180098	EV2000-4T0750P	EV2000	75KW
1180109	EV2000-4T0900P	EV2000	90KW
1180122	EV2000-4T1100P	EV2000	110KW
1180158	EV2000-4T1320P	EV2000	132KW
1180139	EV2000-4T1600P	EV2000	160KW
1180140	EV2000-4T2000P	EV2000	200KW
1180134	EV2000-4T2200P	EV2000	220KW
1180135	EV2000-4T2800P	EV2000	280KW

7.  TD2100 Series



Item	Model	Product Series	Power (KW)
1180054	TD2100-4T0055S	TD2100	5.5KW
1180045	TD2100-4T0075S	TD2100	7.5KW
1180057	TD2100-4T0110S	TD2100	11KW
1180046	TD2100-4T0150S	TD2100	15KW
1180058	TD2100-4T0185S	TD2100	18.5KW
1180055	TD2100-4T0220S	TD2100	22KW
1180059	TD2100-4T0300S	TD2100	30KW
1180047	TD2100-4T0370S	TD2100	37KW
1180060	TD2100-4T0450S	TD2100	45KW
1180056	TD2100-4T0550S	TD2100	55KW
1180061	TD2100-4T0750S	TD2100	75KW



8.  TD3000 Series





Item	Model	Product Series	Power (KW)
1180106	TD3000-4T0022G	TD3000	2.2KW
1180107	TD3000-4T0037G	TD3000	3.7KW
1180077	TD3000-4T0055G	TD3000	5.5KW
1180078	TD3000-4T0075G	TD3000	7.5KW
1180075	TD3000-4T0110G	TD3000	11KW
1180074	TD3000-4T0150G	TD3000	15KW
1180136	TD3000-4T0185G	TD3000	18.5KW
1180073	TD3000-4T0220G	TD3000	22KW
1180079	TD3000-4T0300G	TD3000	30KW
1180080	TD3000-4T0370G	TD3000	37KW
1180084	TD3000-4T0450G	TD3000	45KW
1180085	TD3000-4T0550G	TD3000	55KW
1180086	TD3000-4T0750G	TD3000	75KW
1180087	TD3000-4T0900G	TD3000	90KW
1180088	TD3000-4T1100G	TD3000	110KW
1180089	TD3000-4T1320G	TD3000	132KW
1180090	TD3000-4T1600G	TD3000	160KW

9.  TD3300 Series





Item	Model	Product Series	Power (KW)
1	TD3300-4T0022G	TD3300	2.2KW
2	TD3300-4T0037G	TD3300	3.7KW
3	TD3300-4T0055G	TD3300	5.5KW
4	TD3300-4T0075G	TD3300	7.5KW
5	TD3300-4T0110G	TD3300	11KW
6	TD3300-4T0150G	TD3300	15KW
7	TD3300-4T0185G	TD3300	18.5KW
8	TD3300-4T0220G	TD3300	22KW
9	TD3300-4T0300G	TD3300	30KW
10	TD3300-4T0370G	TD3300	37KW
11	TD3300-4T0450G	TD3300	45KW
12	TD3300-4T0550G	TD3300	55KW
13	TD3300-4T0750G	TD3300	75KW

10.  TD3100 Series





Item	Model	Product Series	Power (KW)
1180081	TD3100-4T0075E	TD3100	7.5KW
1180071	TD3100-4T0110E	TD3100	11KW
1180070	TD3100-4T0150E	TD3100	15KW
1180137	TD3100-4T0185E	TD3100	18.5KW
1180072	TD3100-4T0220E	TD3100	22KW
1180082	TD3100-4T0300E	TD3100	30KW

11.  EV3100 Series





Item	Model	Product Series	Power (KW)
1180169	EV3100-4T0055E	EV3100	5.5KW
1180170	EV3100-4T0075E	EV3100	7.5KW
1180171	EV3100-4T0110E	EV3100	11KW
1180172	EV3100-4T0150E	EV3100	15KW
1180173	EV3100-4T0185E	EV3100	18.5KW
1180174	EV3100-4T0220E	EV3100	22KW
1180175	EV3100-4T0300E	EV3100	30KW

12.  TD3200 Series





Item	Model	Product Series	Power (KW)
1180114	TD3200-2S0002D	TD3200	0.2KW
1180113	TD3200-2S0004D	TD3200	0.4KW

13.  TD3400 Series





Item	Model	Product Series	Power (KW)
1180185	TD3400-4T0075J	TD3400	7.5KW
1180184	TD3400-4T0110J	TD3400	11KW
1180183	TD3400-4T0150J	TD3400	15KW
1180182	TD3400-4T0185J	TD3400	18.5KW
1180165	TD3400-4T0220J	TD3400	22KW
1180180	TD3400-4T0300J	TD3400	30KW
1180181	TD3400-4T0370J	TD3400	37KW
1180179	TD3400-4T0450J	TD3400	45KW
1180178	TD3400-4T0550J	TD3400	55KW
1180177	TD3400-4T0750J	TD3400	75KW

14.  EV800  Series





Item	Model	Product Series	Power (KW)
1180186	EV800-2S0002G	EV800	0.25KW
1180187	EV800-2S0004G	EV800	0.37KW
1180188	EV800-2S0005G	EV800	0.55KW
1180189	EV800-2S0007G	EV800	0.75KW
1180190	EV800-2D0011G	EV800	1.1KW
1180191	EV800-2D0015G	EV800	1.5KW
1180200	EV800-2D0022G	EV800	2.2KW
1180192	EV800-4T0004G	EV800	0.37KW
1180193	EV800-4T0005G	EV800	0.55KW
1180194	EV800-4T0007G	EV800	0.75KW
1180195	EV800-4T0011G	EV800	1.1KW
1180196	EV800-4T0015G	EV800	1.5KW
1180197	EV800-4T0022G	EV800	2.2KW
1180198	EV800-4T0030G	EV800	3KW
1180199	EV800-4T0037G	EV800	4KW





15.  ES Series





Item	Model	Product Series	Power (KW)
1180141	ES2402	ES	7.5KW
1180142	ES2403	ES	11KW
1180143	ES3401	ES	15KW
1180144	ES3402	ES	18.5KW
1180145	ES3403	ES	22KW
2350202	SM-I/O Plus	ES	SM-I/O Plus
2350182	ES-FCA01	ES	ENC div async
2350183	ES-FCS01	ES	ENC div sync





Part II.

1.  Braking Unit





Item	Model	Product Series	Power (KW)
2310685	TDB-4C01-0150	Braking Unit	11KW / 15KW
2310686	TDB-4C01-0300	Braking Unit	18.5KW  / 22KW / 30KW
2310718	TDB-4C01-0550	Braking Unit	37KW / 45KW / 55KW

2.  Brake Resistance





Item	Model	Product Series	Power (KW)
2310736	TDB-R01-0015-0400	Brake Resistance	11KW / 15KW
2310737	TDB-R01-0030-0200	Brake Resistance	18.5KW / 22KW / 30KW
2310738	TDB-R01-0050-0100	Brake Resistance	37KW / 45KW / 55KW

3.  LCD Operation Panel





Item	Model	Product Name	Application
2230804	TDP-LCD01	LCD Operation Panel	For TD2000 Series
2231391	TDP-LCD02	LCD Operation Panel	For TD2100 Series
2350001	TDP-LCD03	LCD Operation Panel	For EV2000Series
2231632	F34M2GZ1	LCD Operation Panel	For TD3000Series
2231633	F34M2EZ1	LCD Operation Panel	For TD3100 Series

4.  LED Keyboard Panel





Item	Model	Product Name	Application
2232734	TDP-LED02	LED Keyboard	For TD900 Series
2232725	TDP-LED03	LED Keyboard	For TD900 Series
2231578	F24F1GZ1	LED Keyboard	For TD1000 Series
2230805	F1452GZ1	LED Keyboard	For TD2000 Series
2231384	F1472SZ1	LED Keyboard	For TD2100 Series
2232830	F1A452GZ1	LED Keyboard	For EV2000 Series



5.  Cable



Item	Model	Product Name	Length
4048003	TDC-CB0006A	Cable	0.6M
4029244	TDC-CB0015A	Cable	1.5M
4029243	TDC-CB0030A	Cable	3M
63200049	TDF-KB01	Keyboard Base	Keyboard Base



Note:They are used for TD900 / TD100 Series





Item	Model	Product Name	Length
4029072	TDC-CB0015	Cable	1.5M
4029071	TDC-CB0030	Cable	3M
21200648	TDF-KB02	Keyboard Base	Keyboard Base



Note:They are used for TD2000 / TD2100 / TD3000 / TD3100 Series





6.  Profibus Bus Adapter





Item	Model	Product Name	Description
2310973	TDS-PA01	Profibus Bus Adapter	Profibus Bus Adapter



7.  Remote Display Box





Item	Model	Product Name	Description
2310899	TDO-RC02	Remote Display Box	Remote Display Box
4028672	FRC21W1	Remote Display Box	3M
4029238	FRC21W2	Remote Display Box	30M



8.  EV3500 Series


EV3500-551A    Current:551A    EV3500-4T3150P
EV3500-637A    Current:552A    EV3500-4T3550P
EV3500-672A    Current:553A    EV3500-4T4000P
EV3500-827A    Current:554A    EV3500-4T4500P
EV3500-955A    Current:555A    EV3500-4T5600P
