| Brand: | ABB | Model Number: | AI801 3BSE020512R1 |
|---|---|---|---|
| Place Of Origin: | Swedish | Type: | Analog Input |
| Signal Specification: | 0...20 MA, 4...20 MA | Mechanics: | S800L |
| High Light: | ethernet i o module,plc i o modules |
||

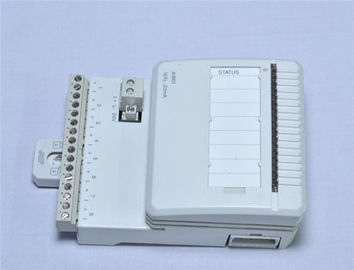

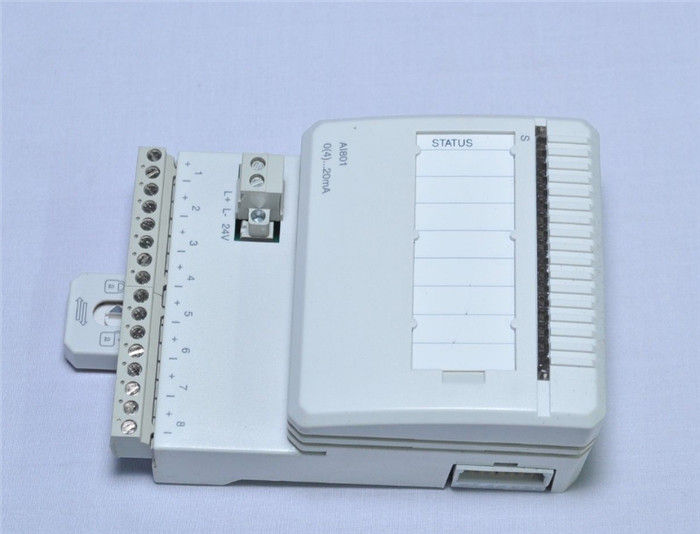

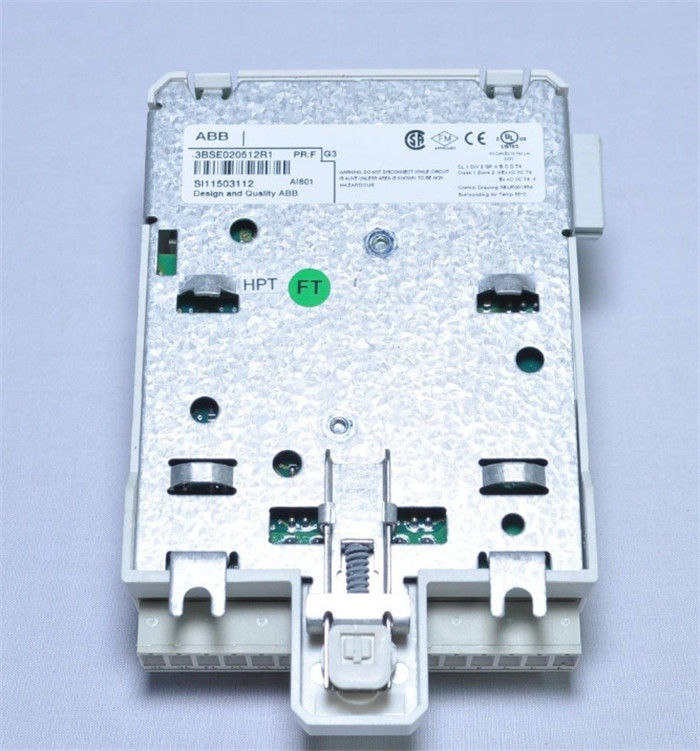

ABB AI801 Digital I O Module Analog Input Module 1x8 channel, 0(4).20mA,12bit,-3BSE020512R1
AI801 ABB Module**New**
Manufacturer:ABB
Part No.:AI801
Description: Module AI801
|
Brand:ABB | |
| MPN:AI801 | Model:AI801 | |
| UPC:Does not apply | Country/Region of Manufacture:Unknown |
Detailed Product Description:
| Type | Analog Input |
| Signal specification | 0...20 mA, 4...20 mA |
| Article number | 3BSE020512R1 |
| Number of channels | 8 |
| Signal type | Unipolar single ended |
| HART | No |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800L |
| Resolution | 12 bit |
| Input impedance | 230 - 275 kΩ (current input incl PTC) |
| Isolation | Groupwise isolated from ground |
| Under/over range | 0% / +15% |
| Error | Max 0,1% |
| Temperature drift | Typ. 50 ppm/°C, Max. 80 ppm/°C |
| Input filter (rise time 0-90%) | 140 ms |
| Update cycle time | 1 ms |
| Maximum field cable length | 600 meters (656 yards) |
| Max input voltage (non destructive) | 30 V d.c. |
| NMRR, 50Hz, 60Hz | > 40dB |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | 1.1 W |
| Current consumption +5 V Modulebus | 70 mA |
| Current consumption +24 V Modulebus | 0 |
| Current consumption +24 V external | 30 mA |
| Supported wire size | Solid: 0.05-2.5 mm2, 30-12 AWG Stranded: 0.05-1.5 mm2, 30-12 AWG Recommended torque: 0.5-0.6 Nm Stripping length 6-7.5mm, 0.24-0.30 inch |
Features and benefits:
8 channels for 0...20 mA, 4...20 mA d.c., single ended unipolar inputs
1 group of 8 channels isolated from ground
12 Bit resolution
Input shunt resistors protected to 30 V by PTC resistor
Analog inputs are short circuit secured to ZP or +24 V
The input withstand HART communication
Process and power connections via detachable connectors
| Height | 110 mm (4.33”) |
| Width | 86.1 mm (3.4”) |
| Depth | 58.5 mm (2.3”) |
| Weight | 0.24 kg (0.53 lbs.) |
Similar item:
AO801 3BSE020514R1 DI801 3BSE020508R1 DI802 3BSE022360R1 DI803 3BSE022362R1
DO801 3BSE020510R1 DO802 3BSE022364R1 AI810 3BSE008516R1 AI815 3BSE052604R1
AI820 3BSE008544R1AI825 3BSE036456R1AI830A 3BSE040662R1AI835 3BSE008520R1
AI835A 3BSE051306R1AI843 3BSE028925R1AI845 3BSE023675R1AI890 3BSC690071R1
AI893 3BSC690141R1AI895 3BSC690086R1AO810V2 3BSE038415R1AO815 3BSE052605R1
AO820 3BSE008546R1AO845A 3BSE045584R1AO890 3BSC690072R1AO895 3BSC690087R1
DI810 3BSE008508R1DI811 3BSE008552R1DI814 3BUR001454R1DI820 3BSE008512R1
DI821 3BSE008550R1DI825 3BSE036373R1DI830 3BSE013210R1DI890 3BSC690073R1
DO810 3BSE008510R1DO814 3BUR001455R1DO815 3BSE013258R1DO820 3BSE008514R1
DO821 3BSE013250R1DO840 3BSE020838R1DO890 3BSC690074R1DP840 3BSE028926R1
DP820 3BSE013228R1TU805K01 3BSE035990R1TU810V1 3BSE013230R1TU811V1 3BSE013231R1
TU812V1 3BSE013232R1TU813 3BSE036714R1TU814V1 3BSE013233R1TU830V1 3BSE013234R1
TU831V1 3BSE013235R1TU835V1 3BSE013236R1TU836V1 3BSE013237R1TU837V1 3BSE013238R1
TU838 3BSE008572R1TU839 3BSE046966R1TU833 3BSE038726R1TU842 3BSE020850R1
TU843 3BSE021443R1TU844 3BSE021445R1TU845 3BSE021447R1TU850 3BSE050930R1
TU890 3BSC690075R1TY801K01 3BSE023607R1TY804K01 3BSE033670R1TB805 3BSE008534R1
TB845 3BSE021437R1TB806 3BSE008536R1TB825 3BSE036634R1TB846 3BSE021439R1
TK801V003 3BSC950089R1TK801V006 3BSC950089R2TK801V012 3BSC950089R3TK812V150 3BSC950118R3TK812V015 3BSC950118R1TK812V050TB807 3BSE008538R1
TB820V2 3BSE013208R1TB840A 3BSE037760R1TB810 3BSE008560R1TB811 3BSE008568R1
