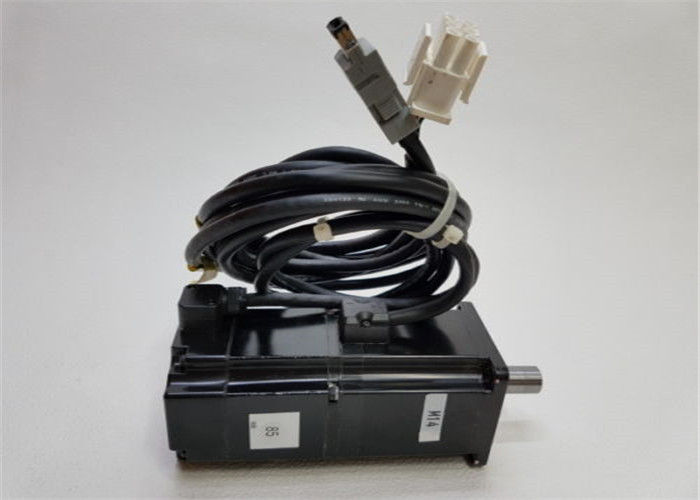

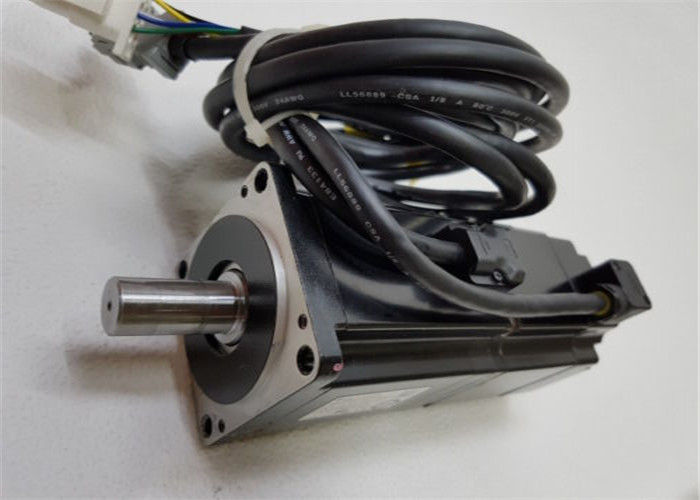

400W InsB 3PH Industrial Servo Motor YASKAWA SGMJV-04AAA2C Totally Enclosed

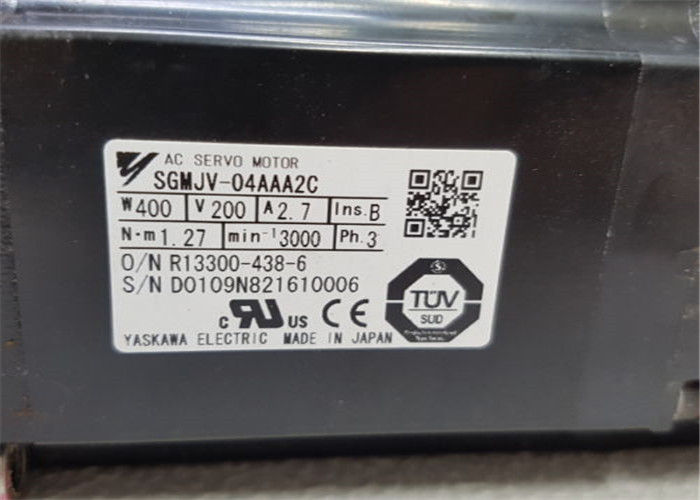

Industrial Servo Motor YASKAWA SGMJV-04AAA2C SERVO MOTOR 400W InsB 3PH

Quick Details
Brand Name:YASKAWA
Model Number: SGMJV-04AAA2C
Type:Servo Motor
Output Power:1.3KW
Protect Feature:Totally Enclosed
Phase:Single-phase
Certification:CE
AC Voltage:208-230 / 240 V
Place of Origin:Japan
Efficiency:IE 4
high quality:original made in JAPAN

Current: 200V
power:400W
warranty:1 year amend period
delivery:in stock

Yaskawa offers a wide range of motors including Sigma 2/3/5/7 rotary AC servo motors and SERVOPACKS. These brushless motors are able to handle speeds up to 6000 rpm with options of single and dual axis models. All motors are made to be compact, reliable, and durable. SERVOPACKS are amplifiers for the motors that allow for more precise control and timing. Every model features easy-to-use software that allows you to integrate your motor/amp easily into your existing automation set up. Some of the popular models that WTL  and Supply can provide are:

• Rotary Motors - SGM7J, SGM7A, SGM7P, SGM7G, SGMMV, SGMJV, SGMSV, and SGMVV
• Gear Motors - S7J, S7A, S7P, and S7G
• SERVOPACKS - SGD7W/S MECHATROLINK-III, SGD7W/S EtherCAT, SGD7S Analog, SGDV MECHATROLINK-II/III, SGDV EtherCAT, and SGDV Analog

WTL  offers repair services as well as an exchange program for Schneider Electric, Yaskawa, Siemens, and all other manufacturers listed on our website. All repairs include a 12 month warranty for your satisfaction.

Rated output *1 W 50 100 200 400 750 Rated torque *1,*2 N·m 0.159 0.318 0.637 1.27 2.39 Instantaneous peak torque*1 N·m 0.557 1.11 2.23 4.46 8.36 Rated current*1 A (rms) 0.61 0.84 1.6 2.7 4.7 Instantaneous max. current *1 A (rms) 2.1 2.9 5.8 9.3 16.9 Rated speed *1 min-1 3000 Max. speed *1 min-1 6000 Torque constant N·m/A (rms) 0.285 0.413 0.435 0.512 0.544 Rotor moment of inertia (JM) kg·m2x10-4 (without brake) 0.0414 0.0665 0.259 0.442 1.57 kg·m2x10-4 (with brake) 0.0489 0.0740 0.323 0.506 1.74 Allowable load moment of inertia (JL) Multiple of (JM) 15 10 Rated power rate*1 kW/s 6.11 15.2 15.7 36.5 36.3 Rated angular acceleration*1 rad/s2 38400 47800 24600 28800 15200 Encoder Standard Incremental encoder (20 bits) Option Incremental encoder (13 bits)/ Absolute encoder (20 bits) Allowable radial load N 78 245 392 Allowable thrust load N 54 74 147 Approx. mass Kg (without brake) 0.3 0.4 0.9 1.3 2.7 Kg (with brake) 0.6 0.7 1.5 1.9 3.6 Brake specifications Rated voltage 24 VDC Power consumption (at 20°C) W 6 6.9 7.7 Current consumption (at 20°C) A 0.25 0.29 0.32 Holding torque N·m 0.159 0.318 0.637 1.27 2.39 Rise time for holding torque ms (max) 100 Release time ms (max) 60 80 Basic specifications Time rating Continuous Thermal class Class B Usage/ storage temperature 0 to +40 °C/ -20 to 60 °C without freezing Usage/ storage humidity 20 to 80% RH (non-condensing) Vibration class 15 µm or below Insulation resistance 500 VDC, 10 MOhm min. Withstand voltage 1500 VAC for one minute Enclosure Totally-enclosed, self-cooled, IP65 (excluding shaft opening) Vibration resistance Vibration acceleration 49 m/s2 Altitude 1000 m or less above sea level Mounting Flange-mounted

Highlights:

• Medium inertia
• Instantaneous peak torque (350% of rated torque)
• Mounted high resolution serial encoder: 13, 20 bit
• Maximum speed: 6,000 rpm
• Wide selection: 50W to 750W capacity, holding brake and gear options

Yaskawa Sigma-5 (Σ-V Series) - Rotary Servo Motor

Yaskawa | Sigma-5 (Σ-V Series) | Rotary Servo Motor

Repair for Yaskawa Sigma-5 (Σ-V Series) is available. WTL is committed to customer satisfaction!

YASKAWA SGMJV-04AAA2C 400W/SHIMPO VRGS-5B60P-400
