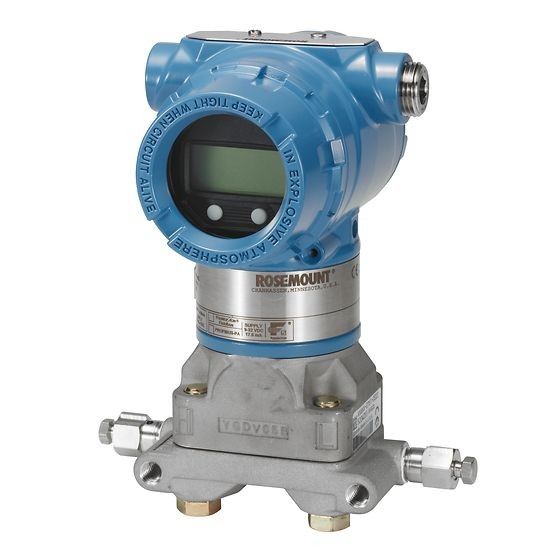

SIL 2/3 certified to IEC 61508 by an independent 3rd party Rosemount™ 2051 Differential Pressure Flow Transmitter

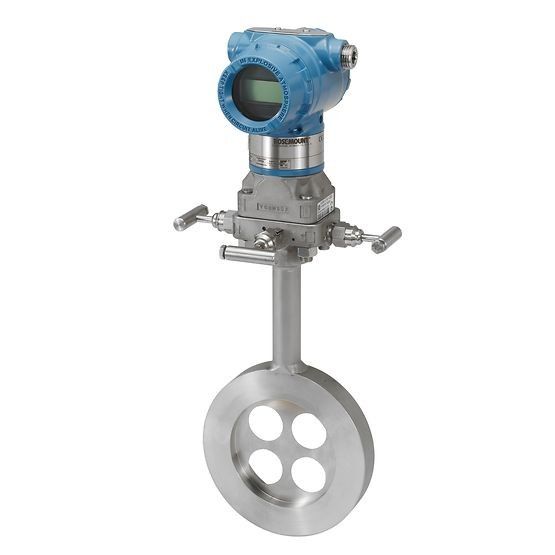

- Available pre-assembled to primary elements for an installation-ready flow solution that ensures reliable performance
- Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
- Local operator interface offers easy-to-use menus and built-in configuration buttons for streamlined commissioning
- Performance up to 0.05% of span accuracy
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
Rosemount 2051 Pressure Transmitters
• Foundation of reliable and safe measurement
• Maximize installation flexibility with Coplanar™ platform
Experience Rosemount Reliability
Emerson brings unmatched pressure measurement experience, reliability, and innovation to deliver increased plant productivity, safety, and a lower total cost of ownership. The Rosemount 2051 pressure transmitter family delivers on our global legacy of highly reliable field-proven products.
Utilizing advanced manufacturing techniques based on Lean and Six Sigma quality processes, the 2051 is manufactured at seven strategic ISO 9001:2008 certified facilities around the world.
Specifications
| Warranty |
Up to 1-year limited warranty |
|
Rangedown
|
Up To 100:1
|
| Measurement Range |
Up to 2000 psi (137,9 bar) differential |
| Output |
Differential pressure, scaled variable |
| Communication Protocol |
4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART® |
| Process Wetted Material |
316L SST, Alloy C-276, Tantalum |
| Diagnostics |
Basic Diagnostics |
|
Certifications/Approvals
|
SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications
|
Fulfill All Your Application Needs
Improve quality and minimize inventory with industry established specifications and a complete breadth of offering.
• Reference accuracy of 0.065% of span, 5 years installed stability, rangeability of 100:1
• Differential, gage and absolute pressure measurement
• Intelligent device diagnostics for easier troubleshooting
• 4-20mA HART, FOUNDATION™ fieldbus, PROFIBUS PA, 1-5Vdc HART protocols
• EDDL and FDT/DTM Support
