NEW 3BSE013210R1 PLC DI830 ABB Digital Input SOE Module 24VDC Input 2x8 channels

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

NEW 3BSE013210R1 PLC DI830 ABB Digital Input SOE Module 24VDC Input 2x8 channels

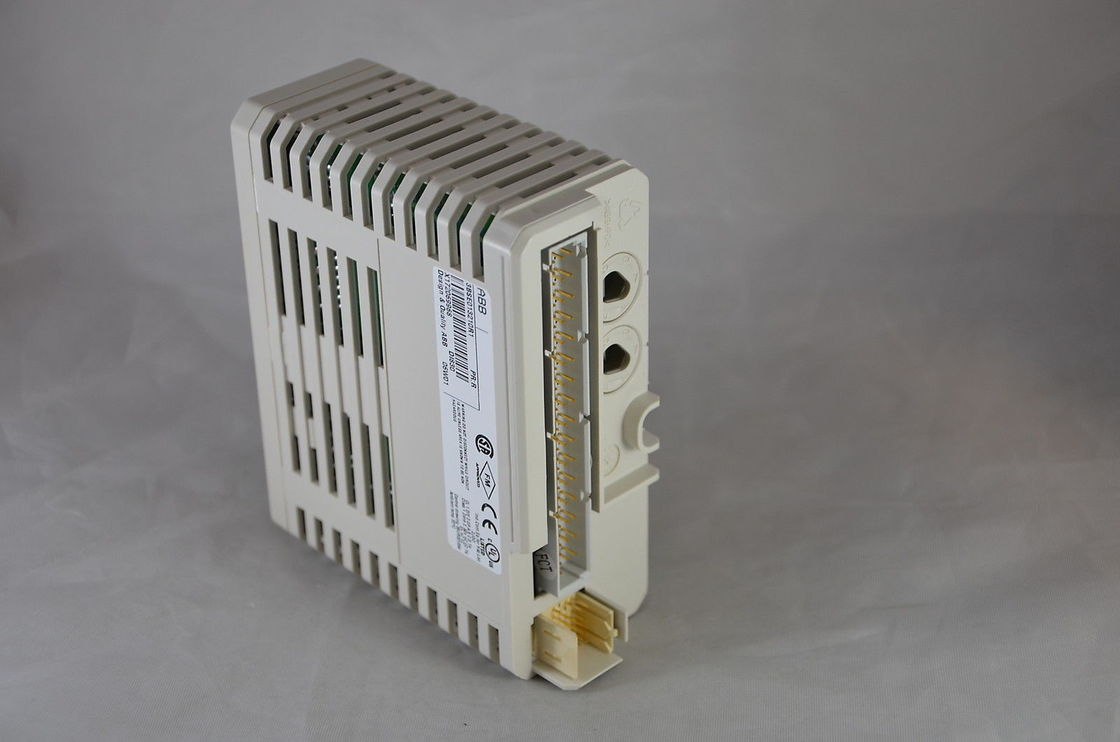

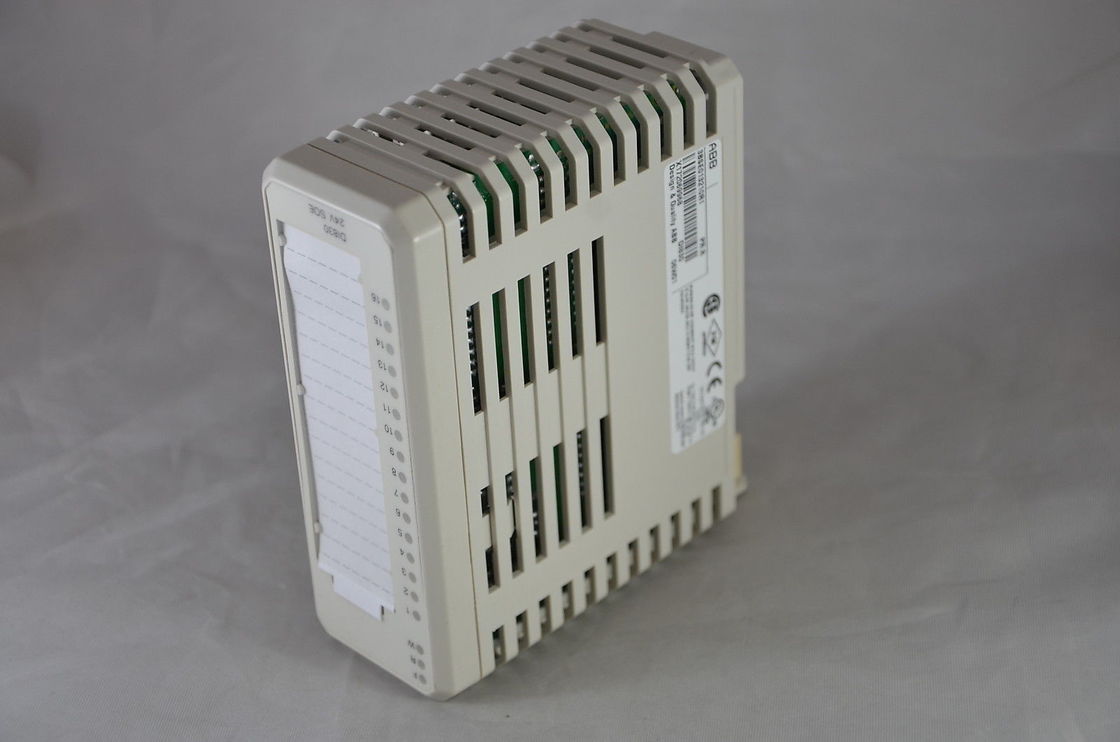

Large Image :  NEW 3BSE013210R1 PLC DI830 ABB Digital Input SOE Module 24VDC Input 2x8 channels

Product Details:

Place of Origin: USA / FI etc
Brand Name: ABB
Certification: CE
Model Number: DI830

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 280 USD
Packaging Details: New Original Box
Delivery Time: In Stock
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Product Name: Input Module Model No.: DI830
Article Number: 3BSE013210R1 Signal Specification: 24 V D.c.
Number Of Channels: 16 Channels Signal Type: Current Sinking
Type: Analog Input Mechanics: S800
High Light:

ethernet i o module

,

digital input output module

NEW 3BSE013210R1 PLC DI830 ABB Digital Input SOE Module 24VDC Input 2x8 channels

Description of DI830:

The DI830 is a 16 channel 24 V d.c. digital input module for the S800 I/O. The input voltage range is 18 to 30 V d.c. and the input current is 6 mA at 24 V d.c. Each input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The module cyclically performs self-diagnostics. Module diagnostics include:

  • Process power supply supervision (results in a module warning, if detected).
  • Event queue full.
  • Time synchronization missing.

The input signals can be digitally filtered. The filter time can be set in the range 0 to 100 ms. This means that pulses shorter than the filter time are filtered out and pulses longer than specified filter time get through the filter.


General Information


Type Digital Input
Signal specification 24 V d.c.
Article number 3BSE013210R1
Number of channels 16
Signal type Current sinking
HART No
SOE Yes
Redundancy No
High integrity No
Intrinsic safety No
Mechanics S800


I/O Modules


AI801 AI810 AI815 AI820 AI825
AI830A AI835A AI843 AI845 AI880A
AI890 AI893 AI895 AO801 AO810V2
AO815 AO820 AO845A AO890 AO895
DI801 DI802 DI803 DI810 DI811
DI814 DI818 DI820 DI821 DI825
DI828 DI830 DI831 DI840 DI880
DI890 DO801 DO802 DO810 DO814
DO815 DO818 DO820 DO821 DO828
DO840 DO880 DO890 DP820 DP840


Detailed data


Input voltage range, "0" -30..+5 V
Input voltage range, "1" 13..30 V
Input impedance 3.2 kΩ
Isolation Groupwise isolated from ground
Filter times (digital, selectable) 0...100 ms
Current limiting Sensor power can be current limited by the MTU
Maximum field cable length 600 meters (656 yards)
Event recording accuracy -0.3 ms...+0.7 ms
Event recording resolution 0.4 ms
Rated insulation voltage 50 V
Dielectric test voltage 500 V a.c.
Power dissipation Typ. 2.3 W
Current consumption +5 V Modulebus Typ. 100 mA, Max 120 mA
Current consumption +24 V Modulebus 0
Current consumption +24 V external 0


Diagnostics



Front LED’s F(ault), R(un), W(arning), Channel 1-16 ("0" or "1")
Supervision Process voltage, 1 per group ; Event queue full; Time synchronization missing
Status indication of supervision Module Error, Module Warning, Channel error



Features and benefits

  • 16 channels for 24 V d.c. inputs with current sinking
  • 2 isolated groups of 8 channels with voltage supervision
  • Input status indicators
  • Sequence of event (SOE) functionality
  • Shutter filter


Environment and certification


CE mark Yes
Electrical safety IEC 61131-2, UL 508
Hazardous Location C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certification ABS, BV, DNV-GL, LR, RS, CCS
Protection rating IP20 according to IEC60529
Corrosive atmosphere ISA-S71.04 G3
Climatic operating conditions 0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2
Pollution degree Degree 2, IEC 60664-1
Mechanical operating conditions IEC/EN 61131-2
EMC EN 61000-6-4 and EN 61000-6-2
Overvoltage categories IEC/EN 60664-1, EN 50178
Equipment class Class I according to IEC 61140; (earth protected)
Max ambient temperature 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
RoHS compliance EN 50581:2012
WEEE compliance DIRECTIVE/2012/19/EU


Compability


Use with MTU TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850
Keying code AA


Dimensions


Height 119 mm (4.7”)
Width 45 mm (1.77”)
Depth 102 mm (4.01”), 111 mm (4.37”) including connector
Weight 0.22 kg (0.48 lbs.)
