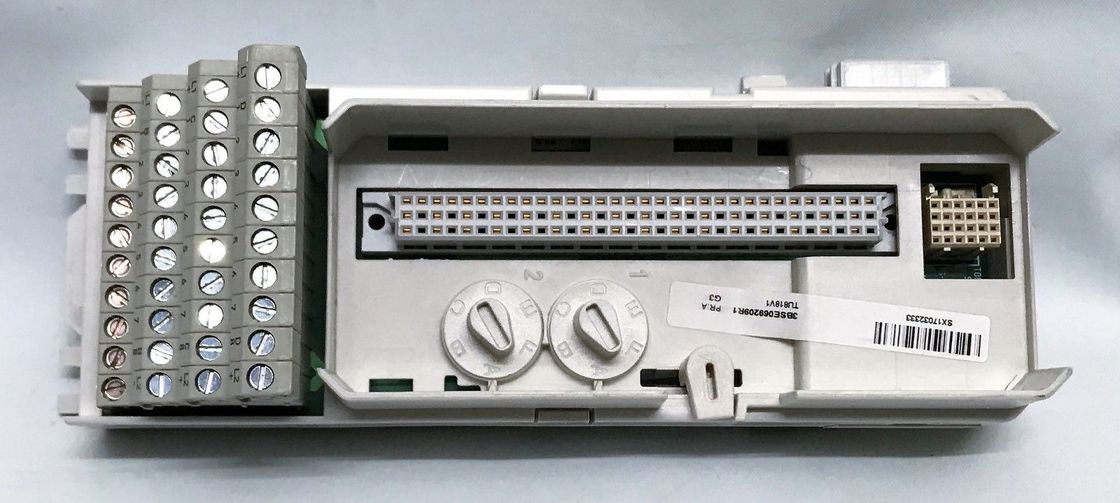

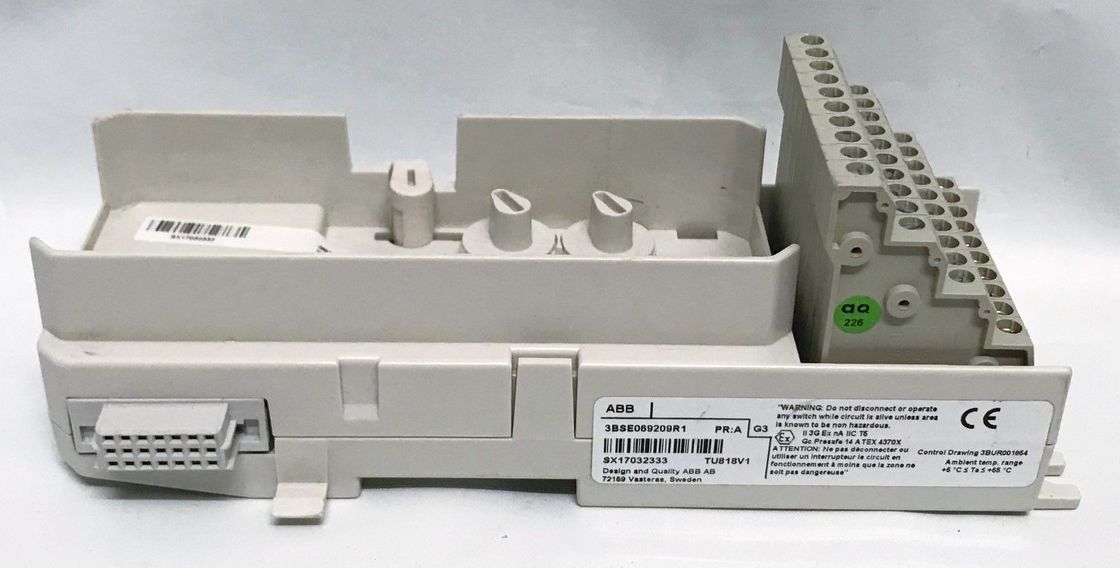

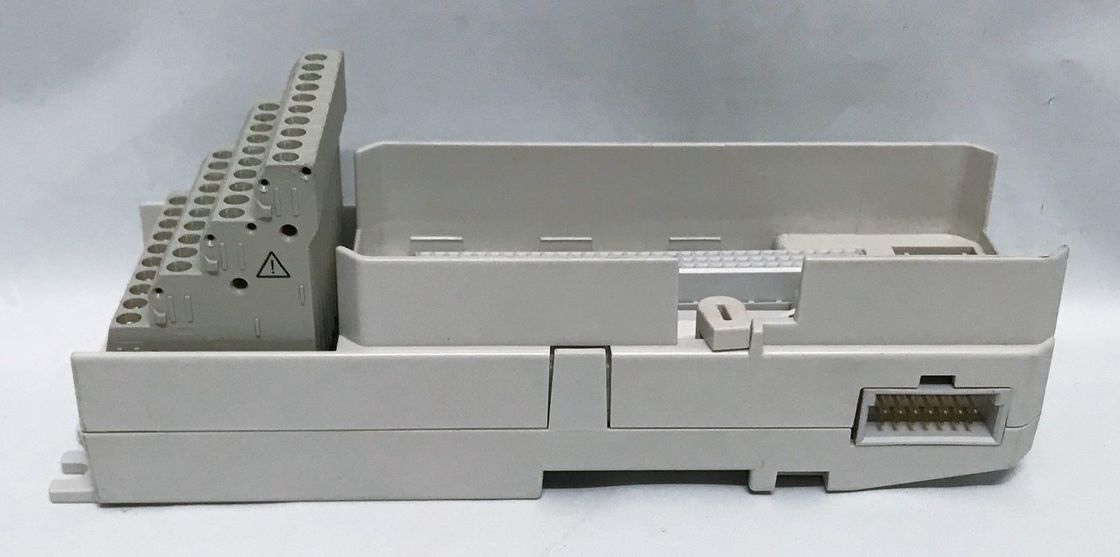

ABB TU818V1 Compact Module Termination Unit, MTU, 50V 3BSE069209R1 S800 I/O Terminal

: Large Image : ABB TU818V1 Compact Module Termination Unit, MTU, 50V 3BSE069209R1 S800 I/O Terminal

Product Details:

Brand Name:	ABB
Certification:	CE
Model Number:	TU818V1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	In Stock
Payment Terms:	T/T / Paypal
Supply Ability:	50

Contact Now

Detailed Product Description

Product Name:	Compact Termination Unit	Model No.:	TU818V1
Article No.:	3BSE069209R1	Type:	Module Termination Units
High Light:	plc i o modules , ethernet i o module

Product Name:

Compact Termination Unit

Model No.:

TU818V1

Article No.:

3BSE069209R1

Type:

Module Termination Units

High Light:

plc i o modules

ethernet i o module

ABB TU818V1 Compact Module Termination Unit, MTU, 50V 3BSE069209R1 S800 I/O Terminal

Module Termination Units

Model	Description	Article No.
TU805K01	TU805K01 Termination Units for two or three wire connection of DI801 and DO801 Include 10 pcs of Termination Unit TU805	3BSE035990R1
TU810V1	TU810V1 Compact Module Termination Unit, MTU, 50V. 2x8 signal terminals, rated isol. 50V.	3BSE013230R1
TU811V1	TU811V1 Compact Module Termination Unit, MTU, 250V. 1x8 signal terminals, rated isol. 250V	3BSE013231R1
TU812V1	TU812V1 Compact Module Termination Unit, MTU, 50V. With 25 pin D-sub connector, rated isol. 50V. D-sub (female) connector is not enclosed	3BSE013232R1
TU813	TU813 Compact Module Termination Unit, MTU, 250V 2x8 Signal terminals, Rated isol. 250V Detachable (pluggable) connectors are enclosed	3BSE036714R1
TU814V1	TU814V1 Compact Module Termination Unit, MTU, 50V. 2x8 Signal terminals, rated isol. 50V. Detachable (pluggable) connectors are enclosed	3BSE013233R1
TU818	TU818 Compact Module Termination Unit, MTU, 50V 1x32 (and 2x16) signal terminals, Rated isol. 50V	3BSE069209R1
TU819	TU819 Compact Module Termination Unit, MTU, 50V. With 2x25 pin D-sub connector, Rated isol. 50V, D-sub (female) connector is not enclosed	3BSE068891R1
TU830V1	TU830V1 Extended Module Termination Unit, MTU, 50V. 2x16 signal terminals, rated isol. 50V	3BSE013234R1
TU831V1	TU831V1 Extended Module Termination Unit, MTU, 250V. 2x8 signal terminals, rated isol. 250V.	3BSE013235R1
TU833	TU833 Extended Module Termination Unit, MTU, 50V. 2x16 signal terminals, Rated isol. 50V. Spring-cage terminals.	3BSE038726R1
TU835V1	TU835V1 Extended Module Termination Unit, MTU, 50V. 8 fused power outlets, 8 signal terminals, rated isol. 50V	3BSE013236R1
TU836V1	TU836V1 Extended Module Termination Unit, MTU, 250V. 2x4 fused signals, 2x4 return terminals, 2x2 L 2x2N terminals, rated isol. 250V.	3BSE013237R1
TU837V1	TU837V1 Extended Module Termination Unit, MTU, 250V. 8x1 fused isol. signals, 8x1 L terminals, 2x6 N terminals, rated isol. 250V.	3BSE013238R1
TU838	TU838 Extended Module Termination Unit, MTU, 50V. 2x4 fused transducer power outlets, 16 signal terminals, 2x4 return terminals, 2x2 L+, 2x2 L- terminals, rated isol. 50V. Module is mounted horizontally.	3BSE008572R1
TU839	TU839 Extended Module Termination Unit, 250V 2x8 signal terminals. 2x4 fused sensor power. Rated isol. 250V	3BSE046966R1
TU842	TU842 Module Termination Unit, MTU, for redundant applications, 50V. Used for AO845, DI840, DO840. Horizontal mounted DIN rail. Rated isol. 50V.	3BSE020850R1
TU843	TU843 Module Termination Unit, MTU, for redundant applications, 50V. Used for AO845, DI840, DO840. Vertical mounted DIN rail. Rated isol. 50V.	3BSE021443R1
TU844	TU844 Module Termination Unit, MTU, for redundant applications, 50V. Used with AI845, AI880 and DP840. Horizontal mounted DIN rail. Rated isol. 50V. Shunt Stick not included.	3BSE021445R1
TU845	TU845 Module Termination Unit, MTU, for redundant applications, 50V. Used with AI845, AI880A and DP840. Vertical mounted DIN rail. Rated isol. 50V. Shunt Stick not included.	3BSE021447R1
TU850	TU850 Extended Module Termination Unit, MTU, 50V 2x8 signal terminals and 2x8 disconnetable current limited sensor/transmitter outlet power terminals. Rated isol. 50V.	3BSE050930R1
TU851	TU851 Extended Module Termination Unit, MTU, 250V 2x16 signal terminals, Rated isol. 250V	3BSE068782R1
TU852	TU852 Module Termination Unit, MTU, for redundant applications, 50V Horizontal mounted DIN rail, used with redundnat AO, DI, DO and DP I/O modules, with 2x25 pin D-sub connector, Rated isol. 50V	3BSE069964R1
TU854	TU854 Module Termination Unit, MTU, for redundant applications, 50V Horizontal mounted DIN rail, used with redundnat AI and DP I/O modules, with 1x25 pin D-sub connector, Rated isol. 50V, Shunt Stick not included	3BSE069966R1
TU890	TU890 Module Termination Unit for Intrinsic Safety applications Intrinsic Safety Interface, 3x9 signal terminals Rated isol. 50V	3BSC690075R1
TU891	TU891 Module Termination Unit for non Intrinsic Safety applications 3x9 signal terminals Rated isol. 50V.	3BSC840157R1
TY801K01	TY801K01 8pcs Shunt Stick TY801 125 + 125 ohms shunt. Used for AI845 and AI880A on TU844, TU845, TU854	3BSE023607R1
TY804K01	TY804K01 8pcs Shunt Stick TY804 1000 ohms shunt. Used for DP840 on TU844, TU845, TU854	3BSE033670R1
TY805K01	TY805K01 8pcs Shunt Stick TY805 125 + 125 ohms shunt with current limitation on transmitter power. Used for AI845 and AI880A on TU834, TU844, TU845, TU854.	3BSE081160R1
TY820K01	TY820K01 10pcs Temperature Sensor TY820 TY820 is a temperature sensor with a PT 100 element. Can be used with AI835/AI835A and AI843 to measure cold junction Temperature.	3BSE056980R1

Module Termination Units and Terminal Units

The Module Termination Units (MTU) are passive base units used to house the I/O modules. They contain the process wiring terminals and a section of the ModuleBus.

The Module Termination Units (MTU) distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configur ations. The configuration can be changed with a screwdriver.

The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be released with a screwdriver.

The MTU has a mechanical locking mechanism that locks the module in its position. This mechanism also gives the signal BLOCK to the I/O module that keeps the module in its init state until it is locked in its position.

The top part of the MTU can be removed to replace the termination board even with the system running. Such a need can be caused by a damaged terminal screw.

The MTUs are available in tree versions (Compact, Extended and Redundant). The Compact MTU version typically provides for a compact installation of the I/O modules using 1 wire connection.
