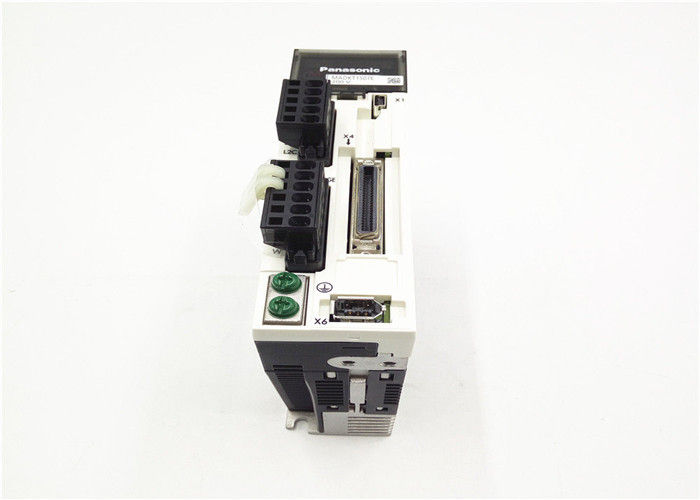

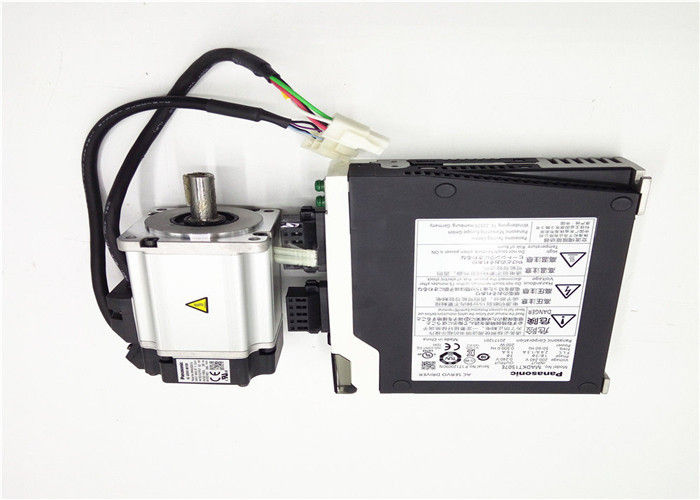

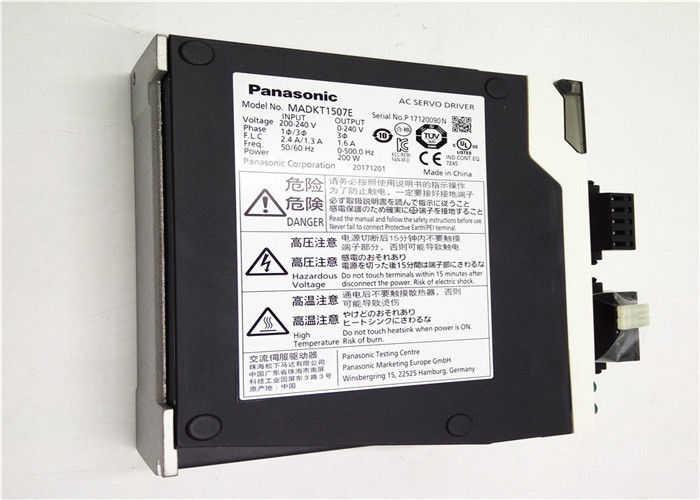

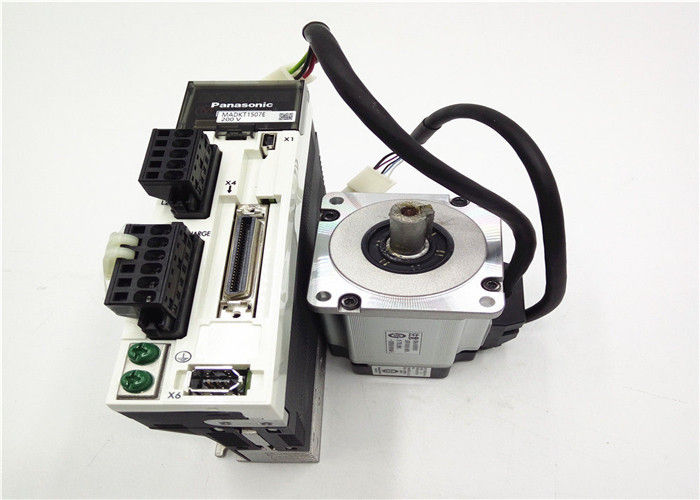

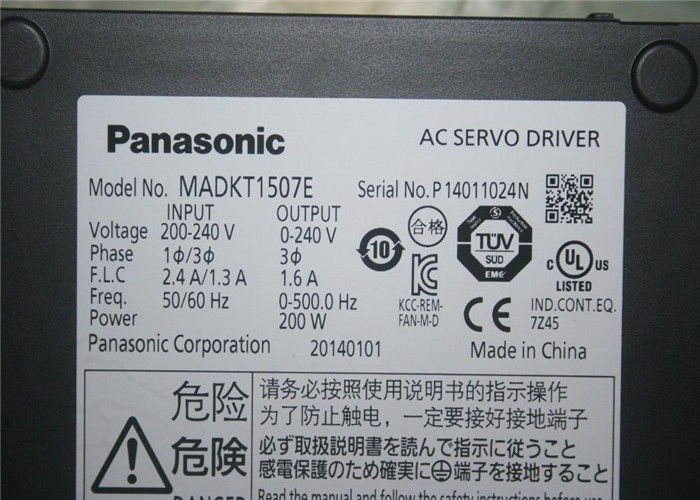

Panasonic AC Servo Motor 0.64NM Drive Position Control200W MHMJ022G1U+MADKT1507E

: Large Image : Panasonic AC Servo Motor 0.64NM Drive Position Control200W MHMJ022G1U+MADKT1507E

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonnic
Model Number:	MADKT1507E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	2-3 work days
Payment Terms:	T/T, Western Union
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:	Panasonnic	Model:	MADKT1507E
Place Of Origin:	Japan	Type:	AC SERVO MOTOR
Power:	200W	Volatge:	200V
Highlight:	ewing machine servo motor , electric servo motor

Industrial Servo Motor Panasonnic MSMA041P1A Ralted Output 0.4KW 82V 4.4A

Spec Detail

Item Specifications

Part Number MADKT1507E

Details A5ⅡE series

Position control type

without the safety function

Family Name MINAS A5

Series A5ⅡE series

Type Position control type

Frame A-Frame

Frequency response 2.3 kHz

Control method Position control

Safety Function without the safety function

Power device Max. current rating 10A

Current detector current rating 7.5A

Supply voltage Single/3-phase 200 V

I/F Classification of type Analog/Pulse

Dimensions (W) (Unit: mm) 40

Dimensions (H) (Unit: mm) 150

Dimensions (D) (Unit: mm) 130

Mass (kg) 0.8

Environment For more details, please refer to the instruction manual.

Basic Specifications

Item Specifications

Input power: Main circuit Single/3-phase 200 to 240V +10% -15% 50/60 Hz

Input power: Control circuit Single phase 200 to 240V +10% -15% 50/60 Hz

Encoder feedback 20-bit (1048576 resolution) incremental encoder, 5-wire serial

Parallel I/O connector:

Control signal Input General purpose 10 inputs

The function of general-purpose input is selected by parameters.

Parallel I/O connector:

Control signal Output General purpose 6 output

The function of general-purpose output is selected by parameters.

Parallel I/O connector:

Analog signal Output 2 outputs (Analog monitor: 2 output)

Parallel I/O connector:

Pulse signal Input 2 inputs (Photo-coupler input, Line receiver input)

Parallel I/O connector:

Pulse signal Output 4 outputs (Line driver: 3 output, open collector: 1 output)

Communication function USB

Communication function: USB USB interface to connect to computers for parameter setting or status monitoring.

Regeneration No built-in regenerative resistor (external resistor only)

Control mode Switching among the following 3 mode is enabled,

(1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command

OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG-	Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X-	Emerson VE-,KJ-
Honeywell TC-,TK-	GE Modules IC -
Fanuc motor A0-	Yokogawa transmitter EJA-

Contact person: Anna

E-mail: wisdomlongkeji@163.com

Cellphone: +0086-13534205279

SIMILAR PRODUCTS

MSMA3AZS1A MSMA5AZS1H MSMA012S1G MSMA022S1F MSMA042S1A MSMA082S1D MGMA122S1G MDMA352S1D

MSMA3AZS1B MSMA011S1A MSMA012S1H MSMA022S1G MSMA042S1B MSMA082S1E MGMA122S1H MDMA352S1G

MSMA3AZS1C MSMA011S1B MSMA021S1A MSMA022S1H MSMA042S1C MSMA082S1F MSMA252S1C MDMA352S1H

MSMA3AZS1D MSMA011S1C MSMA021S1B MGMA032S1C MSMA042S1D MSMA082S1G MSMA252S1D MFMA352S1C

MSMA3AZS1E MSMA011S1D MSMA021S1C MGMA032S1D MSMA042S1E MSMA082S1H MSMA252S1G MFMA352S1D

MSMA3AZS1F MSMA011S1E MSMA021S1D MGMA032S1G MSMA042S1F MDMA082S1C MSMA252S1H MFMA352S1G

MSMA3AZS1G MSMA011S1F MSMA021S1E MGMA032S1H MSMA042S1G MD

Manual/Auto damping filter

Equipped with a damping filter that is automatically set through the setup support software. This filter removes the natural vibration frequency component from the command input, greatly reducing vibration of the axis when stopping. The number of filters for simultaneous use has been increased to three from the conventional two filters. (Two from one in the two-degree-of-freedom-control mode.) The adaptive frequency has also been significantly expanded from 0.5 Hz to 300 Hz.

Regenerative energy discharge

A regenerative resistor is used to discharge regenerative energy, which is the energy generated when stopping a load with a large moment of inertia or when using this unit in vertical operation. This energy is returned to the driver from the motor.
● Frame A, and frame B model drivers do not contain a regenerative resistor. Optional regenerative resisters are recommended.
● Frame C to frame F model drivers contain one regenerative resistor; however, adding an optional regenerative resistor provides additional regeneration capability.

Friction torque compensation

This function reduces the effect of machine related friction and improves responsiveness. Three kinds of friction compensation can be set: unbalanced load compensation, which sets an offset torque that is constantly applied; kinetic friction compensation, which changes direction in response to the direction of movement; and viscous friction compensation, which changes according to the speed command.
