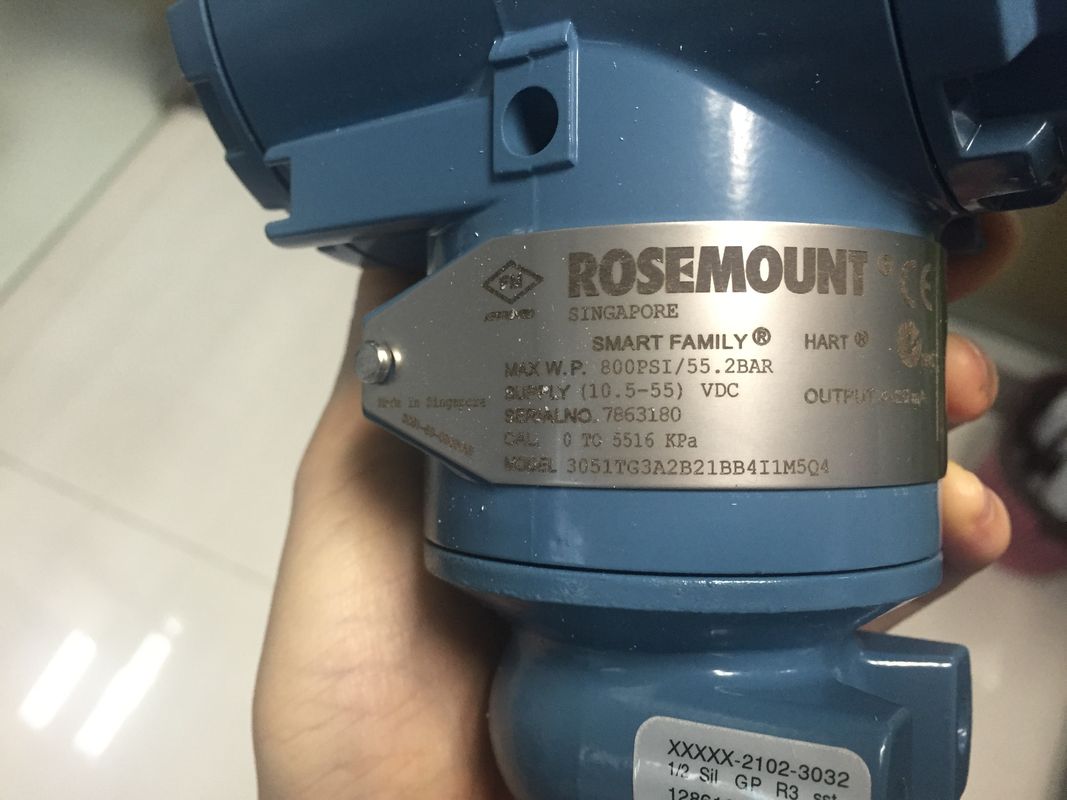

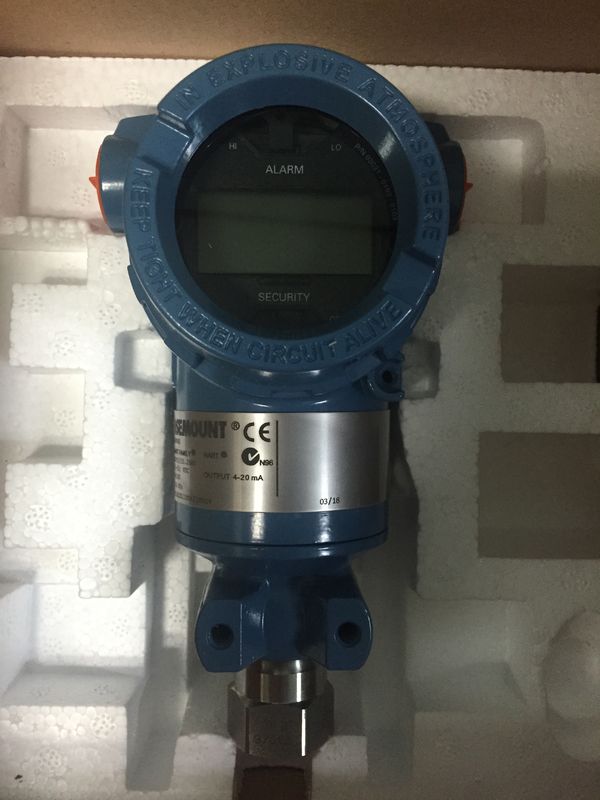

Rosemount 3051TG In-Line Pressure Transmitter -14.7 to 800PSI with 4-20 MA HART Industry Standard
Rosemount 3051TG In-Line Pressure Transmitter -14.7 to 800PSI with 4-20 MA HART Industry Standard
  • Rosemount 3051TG In-Line Pressure Transmitter -14.7 to 800PSI with 4-20 MA HART Industry Standard
  • Rosemount 3051TG In-Line Pressure Transmitter -14.7 to 800PSI with 4-20 MA HART Industry Standard
  • Rosemount 3051TG In-Line Pressure Transmitter -14.7 to 800PSI with 4-20 MA HART Industry Standard

Rosemount 3051TG In-Line Pressure Transmitter -14.7 to 800PSI with 4-20 MA HART Industry Standard

Product Details:
Place of Origin: Singapore
Brand Name: Rosemount
Certification: COO
Model Number: 3051TG3A2C21AB4M5
Detail Information
Place of Origin:
Singapore
Brand Name:
Rosemount
Certification:
COO
Model Number:
3051TG3A2C21AB4M5
Brand:
Rosemount
Model:
3051TG3A2C21AB4M5
Origin Of Country:
Singapore
Type:
Pressure Transmitter
Range:
-14.7 To 800 Psi
Communication Protocol::
4-20 MA HART
Delivery Time:
3-5days
Condition:
New Original
Highlight:

High Light

Highlight:

differential pressure flow transmitter

,

high temperature differential pressure transmitter

Trading Information
Minimum Order Quantity:
1 PC
Price:
Negotiation
Packaging Details:
New Original Box
Delivery Time:
3-5 working days
Payment Terms:
T/T,Western Union,Paypal
Supply Ability:
100%
Product Description
3051TG3A2C21AB4M5 -14.7 to 800PSI Rosemount 3051TG In-Line Pressure Transmitter
With the Rosemount 3051 Pressure Transmitter, you'll gain enhanced control over your plant operations. This device helps reduce product variation and complexity while lowering total cost of ownership through versatile application across pressure, level, and flow measurements. Access valuable diagnostic information to identify, correct, and prevent operational issues. With proven reliability and industry experience, the Rosemount 3051 sets the industry standard for achieving higher levels of efficiency and safety in global competitive environments.
Quick Details
Rosemount 3051T In-Line Pressure Transmitters represent the industry standard for Gage and Absolute pressure measurement. The compact in-line design enables direct process connection for quick, easy, and cost-effective installation.
Key Capabilities
  • Power Advisory proactively detects degraded electrical loop integrity issues (Option Code DA0)
  • Local Operator Interface with intuitive menus and built-in configuration buttons (Option Code M4)
  • Safety Certification (Option Code QT)
Technical Specifications
Specification Details
Rangedown Up to 150:1
Communication Protocol 4-20 mA HART, Wireless HART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART
Measurement Range Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute
Process Wetted Material 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
Diagnostics Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approval SIL 2/3 certified to IEC 61508 by independent 3rd party, NSF, NACE, hazardous location, and comprehensive certification list
Contact us for complete datasheet and additional order information.
Certification Documentation
• Certificate of Origin
• Calibration Certificate
• Material Traceability Certification
Available Rosemount Models
Brand Model Condition
Rosemount 3051CD0A02A1AB1H2L4M5 New
Rosemount 3051CD1A02A1AB1H2L4M5 New
Rosemount 3051CD2A02A1AB1H2L4M5 New
Rosemount 3051CD3A02A1AB1H2L4M5 New
Rosemount 3051CD4A02A1AB1H2L4M5 New
Rosemount 3051CD5A02A1AB1H2L4M5 New
Rosemount 3051TG1A2B21A New
Rosemount 3051TG3A2B21AB4 New
Rosemount 3051TG1A2B21AB4M5K5 New
Rosemount 3051TG5A2B21AB4M5E5 New
Rosemount 3051TG5A2C21AB4M5K5 New
Rosemount 3051TA1A2B21AB4M5K5 New
Rosemount 3051TA3A2B21AB4M5E5 New
Rosemount 3051TA3A2B21AB4M5I5 New
Rosemount 3051GP1A2B21AB4M5 New
Rosemount 3051GP3A2B21AB4M5K5 New
Rosemount 3051GP4A2B21AB4M5E5 New
Rosemount 3051GP5A2B21AB4M5I5 New
Rosemount 3051CG1A02A1AB1H2L4M5 New
Rosemount 3051CG1A02A1AB3H2L4M5 New
Rosemount 3051CG4A02A1AB1H2L4M5K5 New
Rosemount 3051CG4A02A1AB1H2L4M5I5 New
Rosemount 3051CG5A02A1AB3H2L4M5I5 New
Rosemount 3051CA1A02A1AB1H2L4M5 New
Rosemount 3051CA2A02A1AB1H2L4M5K5 New
Rosemount 3051CA4A02A1AB1H2L4M5E5 New
Rosemount 3051CA5A02A1AB1H2L4M5I5 New
Rosemount 3051CA3A02A1AB3H2L4M5K5 New
Rosemount 3051CA5A02A1AB3H2L4M5K5 New
Rosemount 3051CA1A02A1AB3H2L4M5E5 New
Industry Experience
Rosemount 3051TG In-Line Pressure Transmitter -14.7 to 800PSI with 4-20 MA HART Industry Standard 0
Ordering & Shipping Information
Payment Terms
We ship worldwide and accept T/T and PayPal payments. All items undergo thorough QA testing and inspection prior to shipment.
Turnaround Time
Standard order processing: 1-2 business days plus selected shipping method. Rush and off-hours service available for additional fees.
Packaging & Handling
Items are securely packaged in custom shipping cartons for maximum protection during transit.
Shipping Options
Worldwide shipping via UPS, FedEx, DHL, or Truck Freight as required. Contact us for alternative shipping services. International customers are responsible for Customs fees, VAT, and other applicable country-specific charges. All shipments are fully insured.
