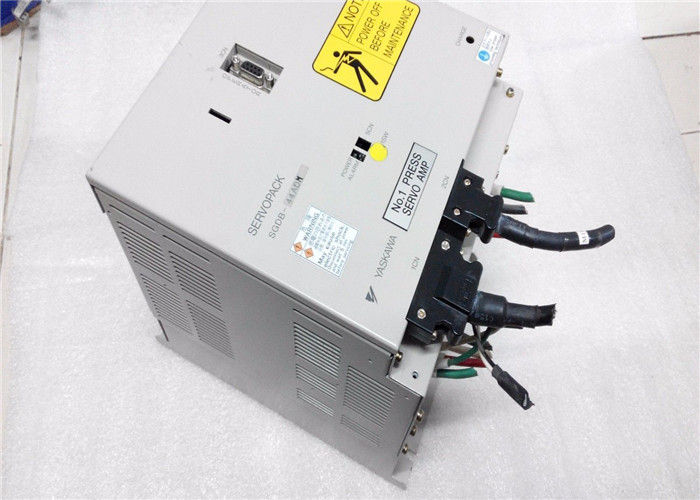

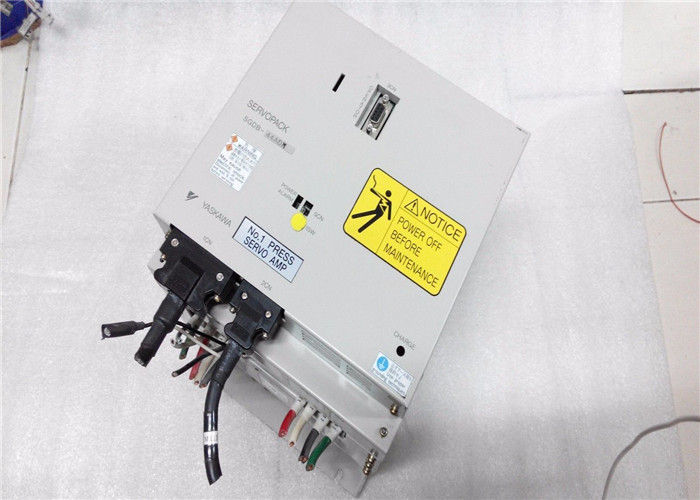

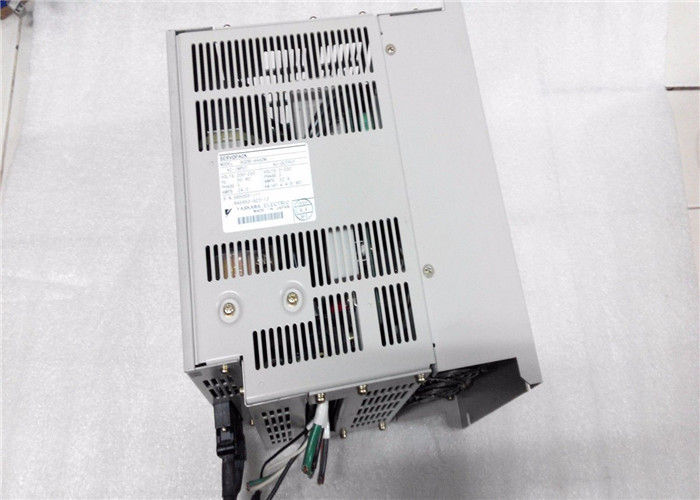

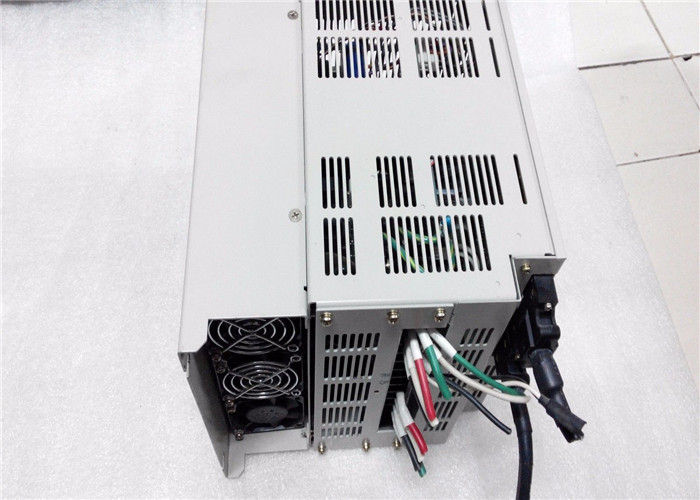

Yaskawa 4.4KW 50/60hz AC servo drives Industrial ServoPack SGDB-44ADM
Quick Details

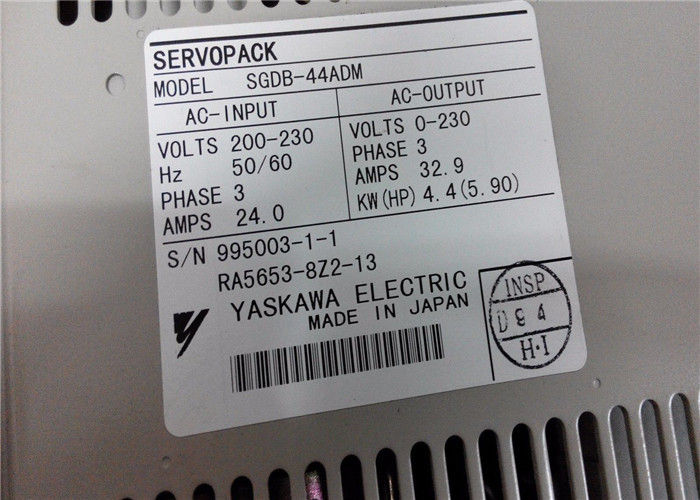

Product number: SGDB-44ADM
Description: SGDB-44ADM is an Drives-AC Servo
Drive Type: SGDB AC Servo Drive
Rated Output: 4.4KW
Supply Voltage: 200V
Model: Torque, Speed, Position Control
Applicable motor series: SGM
Option Specifications: None
Modification: None
The Yaskawa SGDB Sigma Series Servopacks are Amplifiers for the Sigma Series of AC Servos. Designed for applications requiring multi-drives, the SGDB can be used for speed control, torque control, and position control. A digital operator can be used to set parameters for a Servopack.
Product Family: SGDB-05ADG, SGDB-10ADG, SGDB-15ADG, SGDB-20ADG, SGDB-30ADG, SGDB-44ADG, SGDB-60ADG, SGDB-75ADG, SGDB-1AADG, SGDB-1EADG
Important Notice: Please note that any additional items included with this equipment such as accessories, manuals, cables, calibration data, software, etc. are specifically listed in the above stock item description and/or displayed in the photos of the equipment. Please contact one of our Customer Support Specialists if you have any questions about what is included with this equipment or if you require any additional information.
