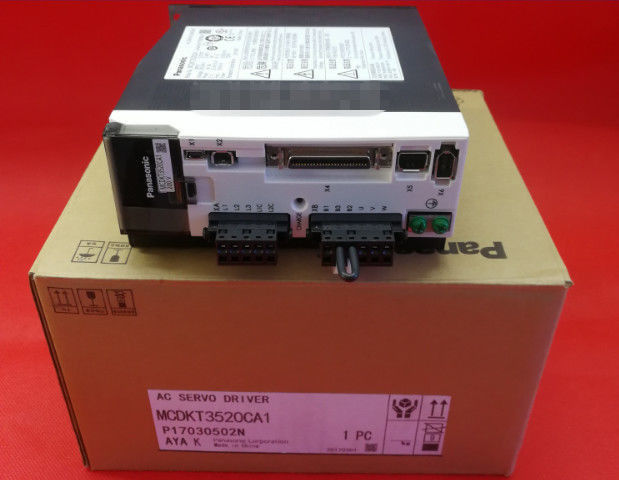

MCDHT3520CA1 Panasonic Industrial Servo Drives Single/3-Phase 200V

Name: MCDHT3520CA1 Panasonic Industrial Servo Drives Single/3-Phase 200V
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: MCDHT3520CA1
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE
Model Number:	MCDHT3520CA1

Detail Information

Place of Origin:

Japan

Brand Name:

Panasonic

Certification:

Model Number:

MCDHT3520CA1

Brand:

Panasonic

Model Number:

MCDHT3520CA1

Country Of Origin:

Japan

Type:

Servo Motor

Voltage::

200V

Phase::

Single/3-phase 200V

Shipping Term:

DHL TNT UPS EMS FedEx

Motor Type::

AC Servo Drives

Highlight:

High Light

Highlight:

ac servo pack

ac servo drive

Trading Information

Minimum Order Quantity:

Price:

Contact

Packaging Details:

NEW AND ORIGINAL

Delivery Time:

3-5DAYS

Payment Terms:

T/T, Western Unionm,PAYPAL

Supply Ability:

1000

Product Description

MCDHT3520CA1 Panasonic servo motor minas A5 family Industrial Servo Drives Single/3-phase 200V

MCDHT3520CA1 Description

The Panasonic MCDHT3520CA1 is a high-performance AC servo system, integrating a servo drive and a servo motor into a compact, cable-reduced unit. It is a key component of Panasonic's MINAS A6 series, designed for advanced motion control in space-constrained automation applications. This all-in-one system streamulates wiring, simplifies installation, and enhances reliability by eliminating the external motor power cable. It delivers exceptional precision, high torque, and smooth operation, making it ideal for modern high-speed, high-density production equipment.

MCDHT3520CA1 Features

Compact, Integrated Design: The servo drive is mounted directly on the rear of the servo motor, significantly saving control panel space and reducing overall system footprint.
Cable Reduction: Eliminates the bulky main power cable between the drive and motor, reducing wiring costs, points of failure, and electromagnetic noise.
High Performance & Precision: Features a 24-bit high-resolution encoder for ultra-precise positioning and smooth rotation even at ultra-low speeds. Supports advanced vibration suppression and adaptive notch filter for stable operation.
Advanced Network Compatibility: Equipped with a built-in EtherCAT (CoE) communication interface, enabling high-speed, synchronized multi-axis control within Industry 4.0 and IoT environments.
User-Friendly Tuning: Includes real-time auto-tuning and advanced manual tuning functions via Panasonic's "PANATERM" software for quick startup and optimization.
High Reliability: Designed with a direct cooling structure and robust construction to ensure stable operation in industrial environments.

MCDHT3520CA1 Material & Application

Material:
- Motor: Housing and flange are typically high-strength aluminum alloy or cast iron. Rotor uses laminated electrical steel. Windings are high-grade copper wire with Class F (155°C) or higher insulation. High-precision bearings and a 24-bit magnetic encoder.
- Integrated Drive Unit: Enclosed in a metal chassis with protective coating. Features a high-efficiency heat sink, industrial-grade PCBs, capacitors, and power semiconductors (IGBTs/MOSFETs).
Application: Perfect for applications requiring high performance in limited space:
- Small industrial robots (SCARA, Delta, articulated)
- Semiconductor manufacturing equipment (wire bonders, die bonders)
- Electronic assembly and inspection machines
- Precision medical and laboratory automation
- Packaging and small-part handling systems

MCDHT3520CA1 Key Specifications

Parameter	Specification
Model	MCDHT3520CA1
Series	MINAS A6 (Integrated Type)
Motor Type	AC Permanent Magnet Synchronous Servo Motor
Rated Output Power	3.5 kW
Rated Torque	20.0 N·m
Rated Speed	1500 rpm
Max. Speed	3000 rpm
Encoder	24-bit Absolute (Multi-turn)
Brake	Not Included (Model suffix indicates "CA1" for no brake)
Communication Interface	EtherCAT (CoE)
Input Power Supply	3-phase AC 200-230V (-15% to +10%), 50/60 Hz
Protection Class	IP20 (Motor: IP65 typical for shaft end; Drive unit area is less protected)
Key Control Features	Real-time auto-tuning, adaptive vibration suppression, adaptive notch filter, friction compensation, dual feedback capability
