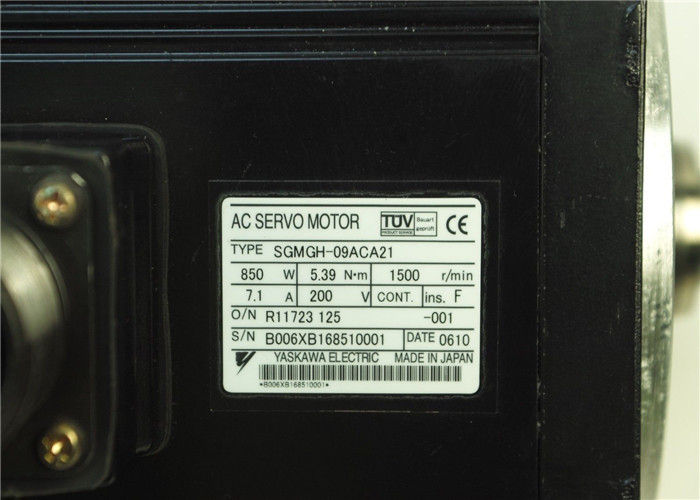

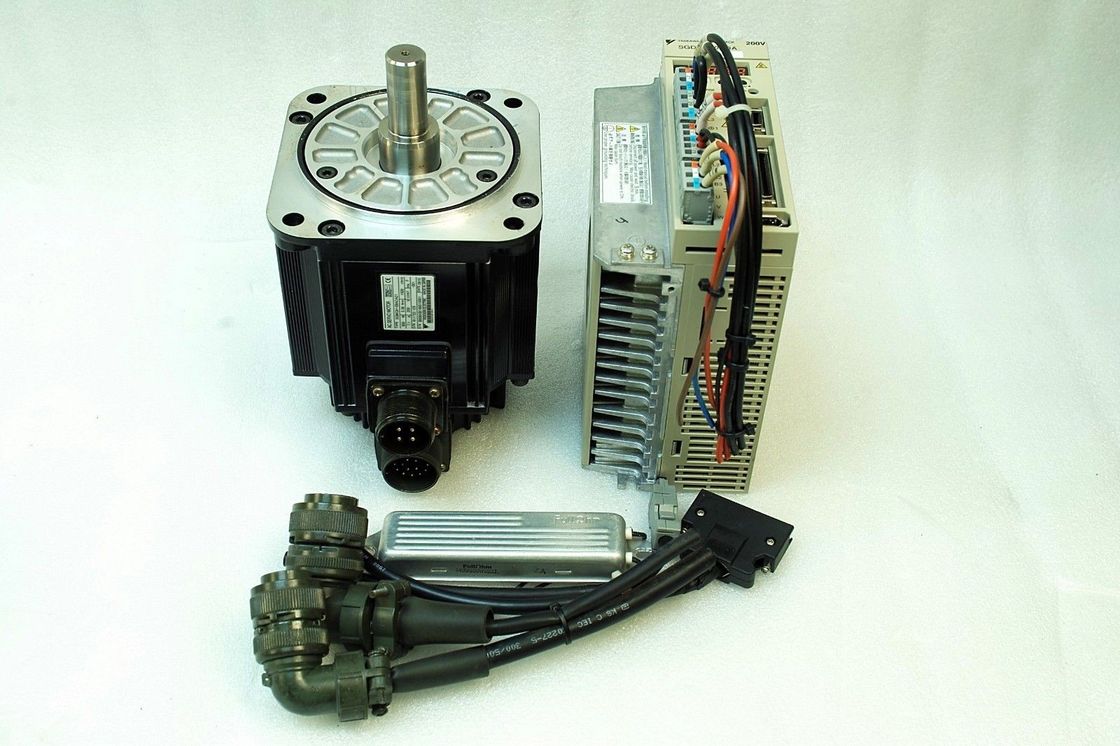

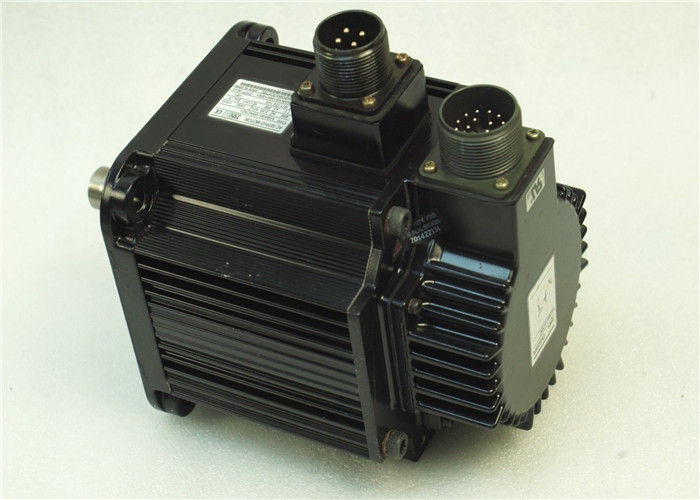

Industrial Yaskawa Electric SGMGH Series 850W AC SERVO MOTOR SGMGH-09ACA21

Industrial Yaskawa Electric SGMGH Series 850W AC SERVO MOTOR SGMGH-09ACA21

Specifications

Manufacturer: Yaskawa

Product number: SGMGH-09ACA21​

Description: SGMGH-09ACA21​ is an Motors-AC Servo manufactured by Yaskawa

Servomotor Type: SGMGH AC Servomotor

Rated Output: 850W

Supply Voltage: 200V

Encoder Specification: 17-bit Incremental Encoder

Design Revision Order: A

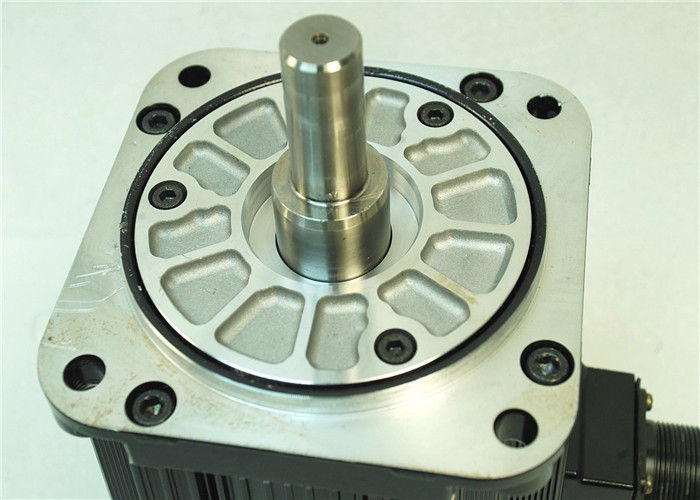

Shaft End Specification: Straight without key

Options: With 24 VDC Brake

OTHER SUPERIOR PRODUCTS

SIMILAR PRODUCTS

Servomotor

DC Servomotor and AC Servomotor

Servomotors are divided into two types: DC servomotors and AC servomotors.

DC servomotors are driven by direct current (DC). They have a long history. Up until the 1980s, the term “servomotor” used to imply a DC servomotor.

From 1984, AC servomotors were emerging as a result of rapid progress in microprocessor technology. Driven by alternating current (AC), AC servomotors are now widely used because of the following
advantages:

• Easy maintenance: No brush

• High speed: No limitation in rectification rate


Note however that servomotors and Servopacks use some parts that are subject to mechanical wear or aging. For preventive maintenance, inspect and replace parts at regular intervals. For details, refer to Chapter 6 Inspection, Maintenance, and Troubleshooting.
