Italy Galden PFPE LUBRICANTS HT90 Perfluoropolyether Fluids HT LOW-BOILING 5kg Bottle

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

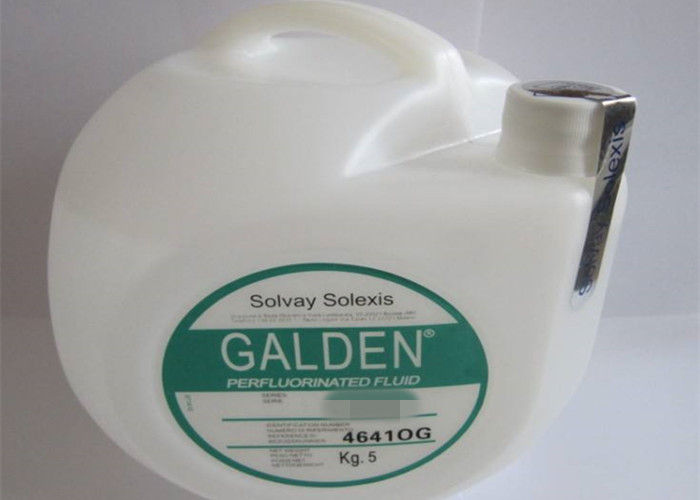

Italy Galden PFPE LUBRICANTS HT90 Perfluoropolyether Fluids HT LOW-BOILING 5kg Bottle

Large Image :  Italy Galden PFPE LUBRICANTS HT90 Perfluoropolyether Fluids HT LOW-BOILING 5kg Bottle

Product Details:

Place of Origin: Italy
Brand Name: Solvey Galden
Certification: CE
Model Number: HT90

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: 3-5 work days
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Model: HT90 Type: Perfluoropolyether Fluids
Boiling Point: 90℃ Pour Point: <-110 ℃
Brand: Solvey Galden One Bottle: 5KG
High Light:

perfluoropolyether lubricants

,

pfpe fluid

Italy Galden PFPE LUBRICANTS HT90 Perfluoropolyether Fluids HT LOW-BOILING 5kg Bottle


Galden® HT - Low Boilers



PropertyUnitsGalden®
HT55
Galden®
HT70
Galden®
HT80
Galden®
HT110
Boiling point°C557080110
Pour point°C<-115-115<-110-100
Density @ 25°Cg/cm31.651.681.691.71
Kinematic viscosity @ 25°CcSt0.450.500.570.77
Kinematic viscosity @ 0°CcSt0.640.750.831.21
Kinematic viscosity @ -20°CcSt0.911.091.221.94
Kinematic viscosity @ -40°CcSt1.401.792.003.74
Surface tension @ 25°Cdynes/cm16141616
Vapor pressure @ 25°Ctorr22514110517
Specific heat @ 25°Ccal/g°C0.230.230.230.23
Thermal conductivity @ 25°CW/m°C0.0650.0650.0650.065
Heat of vaporization @ boiling pointcal/g22171717
Dielectric strength @ 25°CKV (2.54mm gap)40404040
Dissipation factor @ 25°C
(1 kHz)
 2*10-42*10-42*10-42*10-4
Dielectric constant @ 25°C
(1 kHz)
 1.861.881.891.92
Volume resistivityO.cm5*10155*10155*10155*1015
Solubility of waterppm (wt)14141414
Solubility of aircm3gas/
100 cm3liquid
26262626
Refractive index @ 25°C 1.2801.2801.2801.280
Coefficient of expansioncm3/cm3°C0.00110.00110.00110.0011
Average molecular weight 340410430580





Solvay Galden PFPE

Galden PFPE HT is a line of heat transfer fluids with boiling points ranging from 55°C to 270°C designed for vapour phase soldering process. We recommend using Galden fluids on our IBL vapor phase systems for standard applications.
Their excellent dielectric properties, high chemical stability combined with their capacity to operate at very low as well as elevated temperatures make them the best heat transfer fluids for the aggressive conditions used for various high-tech applications in the semiconductor and electronic industry.






Galden Features:

  • Wide choice of grades with different boiling point
  • Narrow molecular weight distribution
  • No flash or fire points
  • No auto ignition point
  • No explosion hazards
  • Excellent thermal and chemical stability
  • Good compatibility with materials
  • Low heat of vaporization
  • Vapor density greater than air
  • Very gentle to components, as no overheating is possible
  • Very simple and inexpensive construction of the soldering system - especially for the prototype area
  • Due to the high heat transfer much more rapid soldering process
  • Soldering with absence of air
  • The high molecular weight of the used PFPEs there is practically no drag-out and so costs are very low
  • More energy efficient than other soldering methods



Perfluoropolyether Fluorinated Fluids


PropertyHT55HT70HT90HT110HT135HT170HT200HT230HT270
Avg Molecular Weight34041046058061076087010201550
Normal Boiling Point(℃)557090110135170200230270
Pour Point (℃)<-110<-110<-110<-110<-100<-97<-85<-77<-66
Open Cup Flashpointnonenonenonenonenonenonenonenonenone
Flannability Range (vol%)nonenonenonenonenonenonenonenonenone
Surface Tension (dynes/cm)101416161718191920
Vapor Press (mm/Hg)@25℃22514148178<1<1<1<0.01
Density (g/ml)1.651.681.691.711.721.771.791.821.85
Viscosity (cSt)@25℃0.450.50.750.7711.82.44.414
Heat of Vaporization (cal/g) @bp221717171616151515
Atmospheric Lifetime (yrs)>800>800>800>800>800>800>800>800>800


High Boiler Grades
Solvey Galden High Boilers (HBs) is the family of heat transfer synthetic fluids engineered for high temperature applications which feature:
  • The highest boiling points among fluorinated heat transfer fluids
  • Very low vapor pressure and evaporation tendency
  • Outstanding non-flammability
  • Excellent chemical inertness
  • Safety (FM approved 6930 standard)

Solvey Galden HBs are the best candidates for use at temperatures above 150° C to 270° C without pressure build-up and absolutely no fire hazard.
Among the advantages of a sound safety profile for high temperature applications is a positive impact on the Cost of Ownership.


Typical applications for Solvey Galden HBs
1.Heat transfer management in the photovoltaic cell manufacturing process
2.Heat vector in the solar thermal industry
3.Heating fluid
4.Metallurgy
5.Energy sector


PFPE heat transfer fluid Operating temperature range
