Product Details:
Payment & Shipping Terms:
|
| Model: | M701-06400470A | Complete Model: | M701-06400470A10100AB100 |
|---|---|---|---|
| Type: | AC Inverter DRIVE | Series: | Unidrive M700 |
| Weight: | 31kg | Brand: | Nidec Control Techniques |
| Highlight: | ac servo pack,ac servo drive |
||

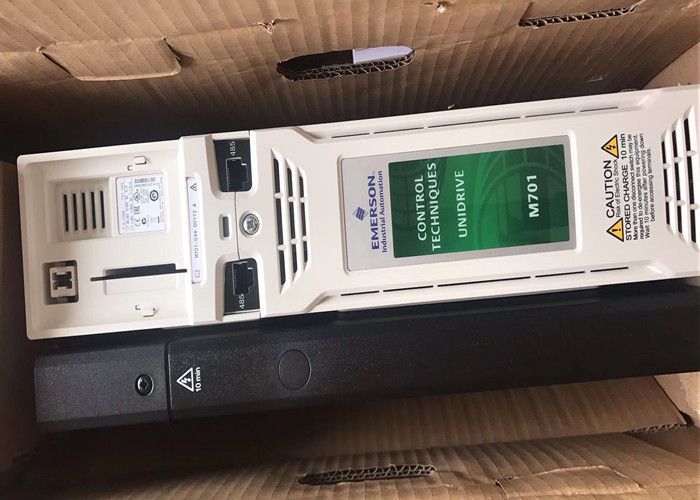

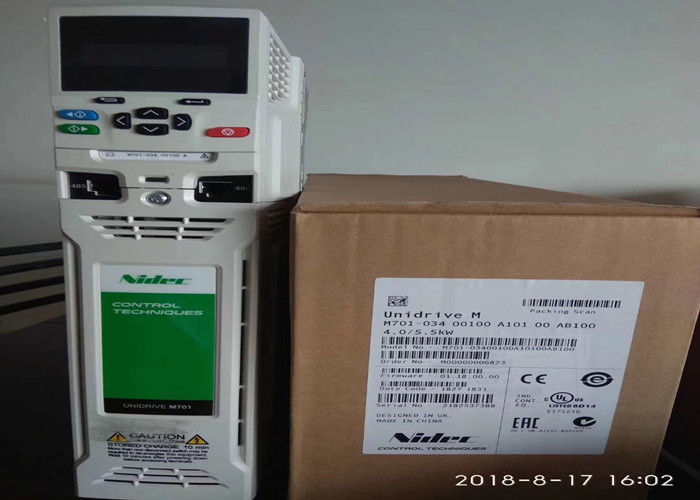

NIDEC CONTROL TECHNIQUES Unidrive M701-06400470A 22-30KW Emerson AC Inverter Drive NEW
Description
Control Techniques:M701-06400470A
Complete Model:M701-06400470A10100AB100
Working voltage:380-460V
Max. Working current:47A
Power:22-30kW
Frequency: LF<600Hz
Unidrive M700
Class leading induction and permanent magnet servo motor performance, with real-time Ethernet
0.75 kW – 2.8 MW (1.0 - 4,200 hp)
200 V / 400 V / 575 V / 690 V
Led by the results of extensive customer-driven market research, we have tailored five Unidrive M feature-sets to specific application needs identified within Industrial Automation.
The Unidrive M700 provides class-leading motor control for induction, permanent magnet and servo applications, plus onboard real-time Ethernet. Unidrive M700 provides ultimate control flexibility in order to satisfy the requirements of machine builders and high specification industrial applications.
Unidrive M700 offers an enhanced upgrade for existing Unidrive SP users.
Drive variants
M701-Unidrive SP replacement
Designed to match Control Techniques'highly popular Unidrive SP feature-set. This includes RS485 communications, 1 xSTO, analog and digital I/O, identical control connectors, with Unidrive SP Smartcard parameter sets supported to make upgrading to Unidrive M as simple as possible
M702-Safety Enhanced
The safety enhanced M700 has 2 x STO, onboard real-time Ethernet and digital I/O; where easy integration with modern control and safety systems is paramount. If analog I/O is required, this can be provided by an SI-I/O option module
Specifications of AC Drive M700
| 200/240 VAC +/-10% |
Normal Duty | Heavy Duty | ||||
| Order Code | Max Continuous Current (A) | Motor Shaft Power (kW) | Motor Shaft Power (HP) | Max Continuous Current (A) | Motor Shaft Power (kW) | Motor Shaft Power (HP) |
| M701-03200050A10 | 6,6 | 1,1 | 1,5 | 5 | 0,75 | 1 |
| M701-03200066A10 | 8 | 1,5 | 2 | 6,6 | 1,1 | 1,5 |
| M701-03200080A10 | 11 | 2,2 | 3 | 8 | 1,5 | 2 |
| M701-03200106A10 | 12,7 | 3 | 3 | 10,6 | 2,2 | 3 |
| M701-04200137A10 | 18 | 4 | 5 | 13,7 | 3 | 3 |
| M701-04200185A10 | 24 | 5,5 | 7,5 | 18,5 | 4 | 5 |
| M701-05200250A10 | 30 | 7,5 | 10 | 25 | 5,5 | 7,5 |
| M701-06200330A10 | 50 | 11 | 15 | 33 | 7,5 | 10 |
| M701-06200440A10 | 58 | 15 | 20 | 44 | 11 | 15 |
| M701-07200610A10 | 75 | 18,5 | 25 | 61 | 15 | 20 |
| M701-07200750A10 | 94 | 22 | 30 | 75 | 18,5 | 25 |
| M701-07200830A10 | 117 | 30 | 40 | 83 | 22 | 30 |
| M701-08201160A10 | 149 | 37 | 50 | 116 | 30 | 40 |
| M701-08201320A10 | 180 | 45 | 60 | 132 | 37 | 50 |
| M701-09201760A10100AB | 216 | 55 | 75 | 176 | 45 | 60 |
| M701-09202190A10100AB | 266 | 75 | 100 | 219 | 55 | 75 |
| 380/480 VAC +/-10% |
Normal Duty | Heavy Duty | ||||
| Order Code | Max Continuous Current (A) | Motor Shaft Power (kW) | Motor Shaft Power (HP) | Max Continuous Current (A) | Motor Shaft Power (kW) | Motor Shaft Power (HP) |
| M701-03400025A10 | 3,4 | 1,1 | 1,5 | 2,5 | 0,75 | 1 |
| M701-03400031A10 | 4,5 | 1,5 | 2 | 3,1 | 1,1 | 1,5 |
| M701-03400045A10 | 6,2 | 2,2 | 3 | 4,5 | 1,5 | 2 |
| M701-03400062A10 | 7,7 | 3 | 5 | 6,2 | 2,2 | 3 |
| M701-03400078A10 | 10,4 | 4 | 5 | 7,8 | 3 | 5 |
| M701-03400100A10 | 12,3 | 5,5 | 7,5 | 10 | 4 | 5 |
| M701-04400150A10 | 18,5 | 7,5 | 10 | 15 | 5,5 | 10 |
| M701-04400172A10 | 24 | 11 | 15 | 17,2 | 7,5 | 10 |
| M701-05400270A10 | 30 | 15 | 20 | 27 | 11 | 20 |
| M701-05400300A10 | 30 | 15 | 20 | 30 | 15 | 20 |
| M701-06400350A10 | 38 | 18,5 | 25 | 35 | 15 | 25 |
| M701-06400420A10 | 48 | 22 | 30 | 42 | 18,5 | 30 |
| M701-06400470A10 | 63 | 30 | 40 | 47 | 22 | 30 |
| M701-07400660A10 | 79 | 37 | 50 | 66 | 30 | 50 |
| M701-07400770A10 | 94 | 45 | 60 | 77 | 37 | 60 |
| M701-07401000A10 | 112 | 55 | 75 | 100 | 45 | 75 |
| M701-08401340A10 | 155 | 75 | 100 | 134 | 55 | 100 |
| M701-08401570A10 | 184 | 90 | 125 | 157 | 75 | 125 |
| M701-09402000A10100AB | 221 | 110 | 150 | 200 | 90 | 150 |
| M701-09402240A10100AB | 266 | 132 | 200 | 224 | 110 | 150 |
| SP1201 | SP1202 | SP1203 | SP1204 | SP2201 | SP2202 | SP2203 | SP3201 |
| SP3202 | SP4201 | SP4202 | SP4203 | SP5201 | SP5202 | SP3501 | SP3502 |
| SP0401 | SP0402 | SP0403 | SP0404 | SP0405 | SP1401 | SP1402 | SP1403 |
| SP1404 | SP1405 | SP1406 | SP2201 | SP2202 | SP2401 | SP2402 | SP2403 |
| SP2404 | SP3401 | SP3402 | SP3403 | SP4401 | SP4402 | SP4403 | SP5401 |
| SP5402 | SP5403 | SP6401 | SP6402 | SP3505 | ES2401 | ES2402 | ES2403 |
| SP3503 | SP3504 | SP3506 | SP4601 | SP4602 | SP4603 | SP4604 | SP4605 |
| SP4606 | SP5601 | SP5602 | SP6601 | SP6602 | Unidrive SP | Quantum MP | Mentor MP |
| SKA1100025 | SKA1100037 | SKB1100075 | SKB1100110 | SKA1200025 | SKA1200037 | SKA1200055 |
| SKBD200110 | SKBD200150 | SKCD200220 | SKDD200300 | SKD3200400 | SKB3400037 | SKB3400055 |
| SKB3400110 | SKB3400150 | SKB3400220 | SKB3400300 | SKB3400400 | SKB3400550 | SKB3400750 |
| SKA1200075 | SKB3400075 | SK3201 | SK3202 | SK4201 | SK4202 | SK4203 |
| SK2402 | SK2403 | SK2404 | SK3401 | SK3402 | SK3403 | SK4401 |
| SK4403 | SK5401 | SK5402 | SK6401 | SK6402 | SK3501 | SK3502 |
| SK3504 | SK3505 | SK3506 | SK3507 | SK4601 | SK4602 | SK4603 |
| SK4605 | SK4606 | SK5601 | SK5602 | SK6601 | SK6602 | SK6602 |
| SK2401 | SK4402 | SK2201 | SK2202 | SK2203 | SK3503 | SK4604 |
| UNI1201 | UNI1202 | UNI1203 | UNI1204 | UNI1205 | UNI2201 | UNI2202 | UNI2203 |
| UNI3201 | UNI3202 | UNI3203 | UNI3204 | UNI1401 | UNI1402 | UNI1403 | UNI1404 |
| UNI1405 | UNI2401 | UNI2402 | UNI2403 | UNI3401 | UNI3402 | UNI3403 | UNI3404 |
| UNI3405 | UNI4401 | UNI4402 | UNI4403 | UNI4404 | UNI4405 | UNI5401 | SP5402 |
