Schneider Electric Quantum Modicon PLC 140SHS94500 New Original

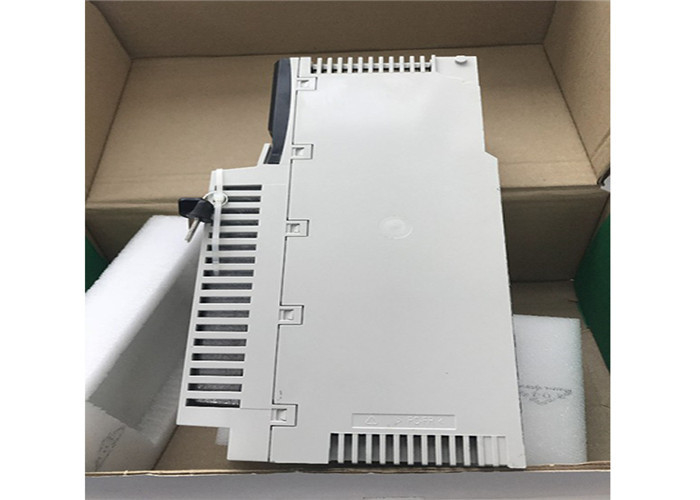

: Large Image : Schneider Electric Quantum Modicon PLC 140SHS94500 New Original

Product Details:

Place of Origin:	France
Brand Name:	Schneider
Certification:	CE
Model Number:	140SHS94500

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	1-1000USD/pc
Packaging Details:	new original package
Delivery Time:	2-3 working days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 pcs/month

Contact Now

Detailed Product Description

Range Of Product:	Modicon Quantum Automation Platform	Country Of Origin:	France
Brand:	Schneider	PN:	140SHS94500
Condition:	Brand New	Type:	QUANTUM PROCESSOR
High Light:	modicon quantum processor , modicon quantum cpu

Schneider Electric Quantum Modicon PLC 140SHS94500 New Original

Main
range of product	Modicon Quantum automation platform
product or component type	DIO head-end adaptor

Complementary
number of port	1 Modbus Plus fiber optic single copper 1 Modbus RS232 twisted pair
transmission rate	1 Mbit/s
electrical connection	1 connector RJ45 2 connectors TX/RX
I/O words	30 I/32 O
checks	RAM RAM address Processor Checksum
power dissipation in W	4 W
minimum pulse width distortion/jitter	5 ns
wavelength	820 nm
power loss budget	11 dB 62.5/125 µm 16.5 dB 100/140 µm 6.5 dB 50/125 µm
optical transmission	-16…-9 dBm 100/140 µm -19.8…-12.8 dBm 50/125 µm -3.5…110.5 dBm 62.5/125 µm
rise/fall time	20 ns
dynamic range	20 dB
detected silence	-36 dBm
sensitivity scale	> 30 dBm
bus current requirement	750 mA

Environment
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…2000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m
standards	UL 508
product certifications	CSA Class 1 Division 2 RINA GL RMRS C-Tick GOST DNV

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Similar Model Products

Analog I/O modules	Discrete I/O modules
140ACI03000	140DDI15310	140DAI55300	140DAO84210
140ACI04000	140DDI35300	140DAI74000	140DAO84220
140ACO02000	140DDI35310	140DAI75300	140DAO85300
140ACO13000	140DDI36400	140DSI35300	140DRA84000
140AII33000	140DDI67300	140DDO15310	140DRC83000
140AII33010	140DDI84100	140DDO35300	140DVO85300
140AIO33000	140DDI85300	140DDO35301	140DDM39000
140AMM09000	140DAI34000	140DDO35310	140DDM69000
140ARI03010	140DAI35300	140DDO36400	140DAM59000
140ATI03000	140DAI45300	140DDO84300	140DII33000
140AVI03000	140DAI54000	140DDO88500	140DIO33000
140AVO02000	140DAI54300	140DAO84000	140DAO84010

(1) CPUs updated with the Unity Pro firmware.
(2) The addition of a complete Ethernet RIO drop function is available for these CPUs with
Unity Pro u V7.0.

ConneXium™ managed switches (continued) Predefined configuration files (continued) Example topology with predefined configuration files C5, C1 and C3 (1) A common use of this preconfiguration is for interfacing a copper link with a fiber optic link on the primary ring or interfacing a fiber optic link with a copper link. This type of architecture makes it possible to have Ethernet DIO or Ethernet RIO drops some distance away from the PLC. The switch preconfiguration also enables Ethernet RIO and/or several Ethernet DIO device clouds to be connected to a secondary ring.

1 Primary ring, copper/fiber optic medium

3 Ethernet head adaptor 140NOA61100 installed in the Quantum™ rack.

4 ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)

5 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)

6 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)

7 Modicon™ STB Ethernet DIO (3) (4)

8 Connection to Ethernet DIO device cloud, copper medium only

9 Ethernet DIO device cloud (3)

10 Ethernet communication module 140CPU31110

11 Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)
