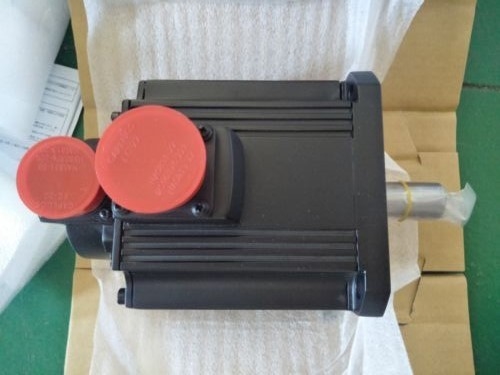

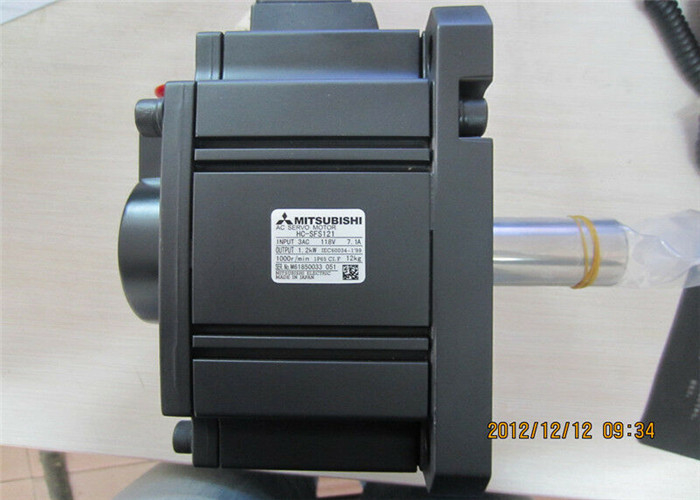

Serve drive power HC-SFS121 Mitsubishi WTL as digital controller

Serve drive power HC-SFS121 Mitsubishi WTL as digital controller

The product's main features:

(1) High-speed motion control Q Series motion controller operation cycle down to 0.88ms, improved speed cam and shortens the response time of the operation.

(2) the use of flexible configuration Mitsubishi Q series PLC multi-CPU capabilities, Q Series motion controller and PLC CPU can be installed on the same substrate, each play to their strengths, the sequence control and motion control treated separately, optimizing the structure of the system . Multi-CPU configuration, can take up to four CPU (including the PLC CPU), a system can control up to 96 axes.

(3) SET control function Q Series motion controller uses high-speed serial communication synchronous servo motor or a simple set absolute system. At the same time, through the Motion CPU Mitsubishi servo system control network SET (Servo System Controller Network) connection with the servo amplifier. Each motion controller has SET interface, a single motion controller can control up to 32 axes servo amplifier, servo motor capacity from 10W to 55KW. SET multi-axis synchronization, interpolation and other advanced positioning capabilities on its head, at the same time saving wiring, improve the overall responsiveness.

Products Parameter:
