| Brand: | GE Fanuc | Model: | IC697MDL341 |
|---|---|---|---|
| Series: | Series 90-70 | Product Type: | Discrete Output Module |
| Rated Voltage: | 120/240 V AC | Outputs: | 12 |
| Output Current/Point: | 2 A | Output Current/Module: | 16 A |
| Current Required: | 0.25 A | Warranty: | 1 Year |
| High Light: | ESCPP Positive Logic Output Module,24VDC Positive Logic Output Module,RS485 Digital I O Module |
||

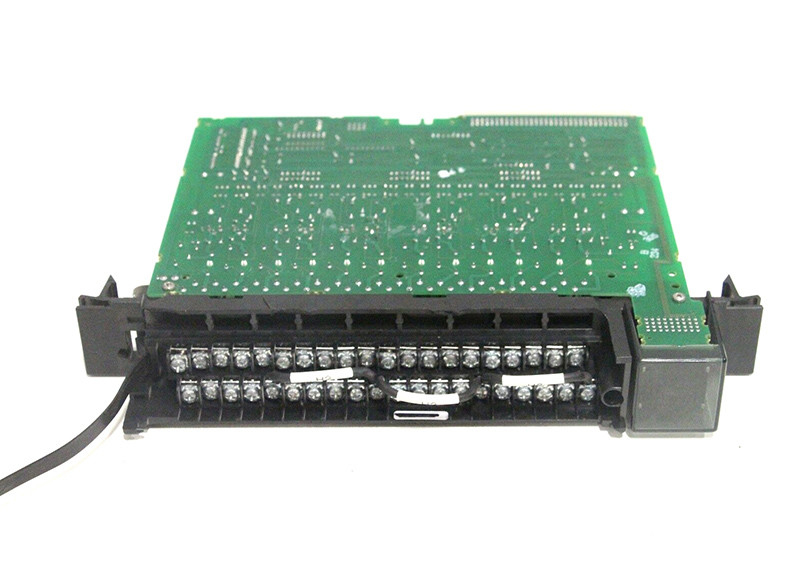

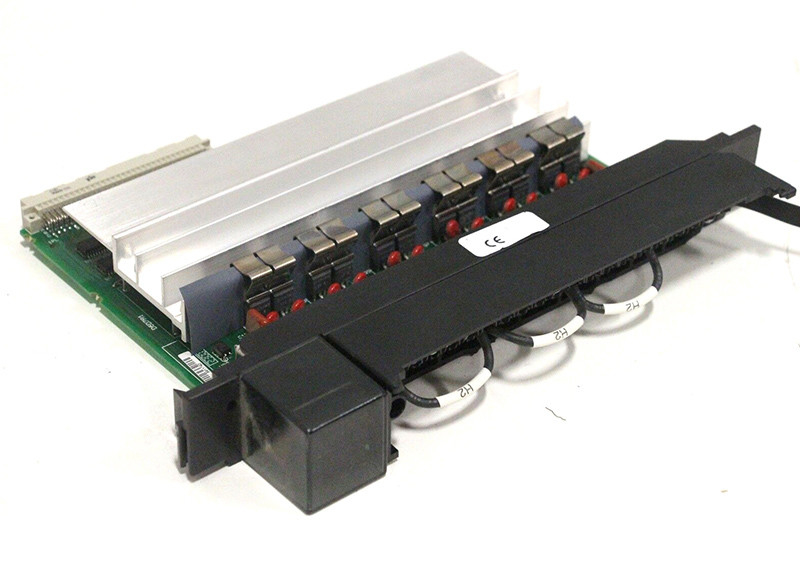

IC697MDL341 is a 120 / 240 VAC Discrete Output Module by GE for the 90-70 series. This module is equipped with 12 isolated points to ensure use of different phases on the AC supply. It has a 2 amp capacity per point and high inrush capacity at 10x the rated current to allow for an impressive range of inductive and incandescent loads. The module’s outputs are each fused with a 3.15 amp replaceable fuse.
The IC697MDL341 module utilizes LED indicators to provide the ON or OFF status of each point on the logic side of the circuit. Additionally, there is an LED that displays the status of the fuses found at the top of the module. If one or more of the fuses should blow, this LED will show ON. The module is mechanically keyed to guarantee correct replacement with a similar module type in the field. The user can configure I/O references, and conveniently, jumpers or DIP switches on the module are not needed.
Load devices including solenoids, motor starters, and indicators can benefit from the use of this module. A rating of 2 amps per point applies to the long-term current capacity of each point. Overall heat dissipation within the module limits the maximum current to 16 amps. Each output can transiently conduct a surge current greater than its long-term current rating. The rate at which surges can be repeated is dependent upon the current rating of the device and the percent of time the device is ON (or duty cycle).
The IC697MDL341 module is mechanically keyed. This prevents unintentional substitution of one module for another type in a given slot. The key fits a distinct shape on the board found below the connector. Each key is prepackaged with the IC697MDL341 module.
| Rated Voltage: | 120/240 volt AC |
| Number of Outputs: | 12 individually isolated |
| Output Current: | 2 Amps per point, 16 Amps per module |
| Current Required: | 0.25 Amps |
| Freq: | 47 to 63 Hz |
| DC Power: | No |
|
Rated Voltage: Outputs per Module: |
120/240 volts AC 12 individually isolated |
| Isolation: |
1500 volts - any output to backplane 500 volts between points |
| Output Voltage Range: Output Current: |
85 to 264 volts AC, 47-63 Hz 2 amps maximum per point 16 amps maximum per module |
| OutputCharacteristics | |
| Inrush Current: | 20 amps maximum for one cycle (20 ms) |
| Output Voltage Drop: | 1.5 volts maximum |
| Response Time-On: | 1 ms maximum |
| Response Time-Off: | 1/2 cycle maximum |
| Output Leakage: | 3 mA maximum at 120 volts AC |
| 6 mA maximum at 240 volts AC | |
| Current Required from 5 V Bus: | .25 amp |
| VME | System designed to support the VME standard C.1 |
