AB 1747-L514 ， SLC 500 Processor ， Slot 0 Of The 1746 Chassis
Product Details:
| Place of Origin: | USA |
| Brand Name: | AB |
| Model Number: | 1747-L514 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | New in original box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
|
Detail Information |
|||
| Brand: | AB | Model: | 1747-L514 |
|---|---|---|---|
| Series: | SLC 500 | Product Description:: | SLC 500 Modular Style Hardware Processor Unit |
| Program Memory: | 4K | Memory Type:: | Capacitor-backed RAM Memory |
| I/O Scan Time: | 2.6 Milliseconds | I/O Chassis: | 3 |
| Highlight: | 5V DC Digital I O Module,PLC Isolated Relay Output Module,PCM Solid State Microcomputer Module |
||
Product Description

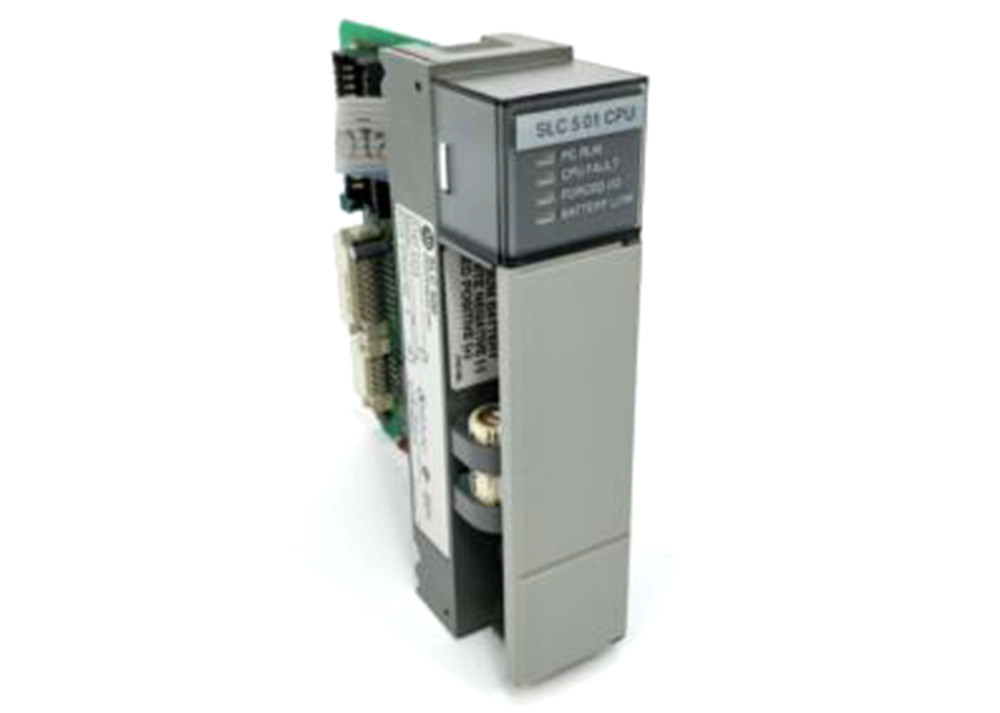

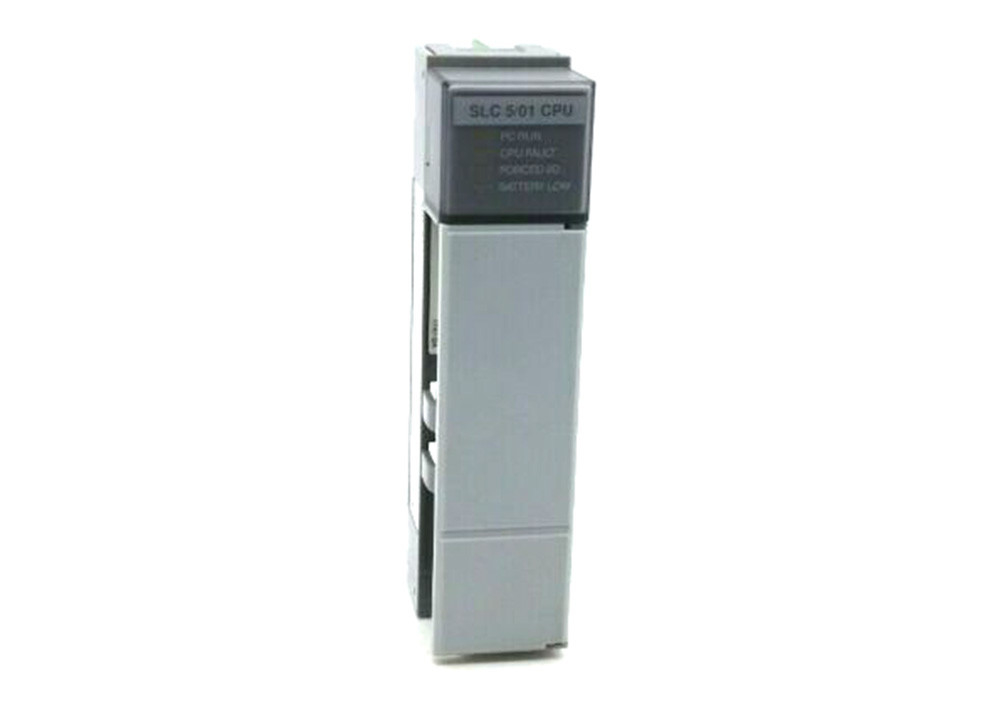

AB 1747-L514 , SLC 500 Processor , Slot 0 Of The 1746 Chassis
Technical Specifications for 1747-L514
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1747-L514 |
| Brand | AB |
| Product Description: | SLC 500 modular style hardware processor unit |
| Programming software: | RSLogix 500 |
| Program memory | 4K |
| Maximum number of modules: | 30 modules |
| Memory Type: | Capacitor-backed RAM memory |
| Expansion memory: | 1747-M1 - 1 K User Words EEPROM; 1747-M2 - 4 K User Words EEPROM |
| Adapter socket: | 1747-M5 |
| Instruction Support: | Bit; Timer and Controller; Comparison; Basic Math; Move, Copy, and Bit Shift; Sequencer; Jump and Subroutine; |
| Assigned slot: | Slot 0 |
| Backplane current: | 0.090 A at 5VDC |
| Series | SLC 500 |
| Module Type | SLC 5/01 Processor |
| I/O | 960 Maximum |
| Analog I/O | 480 |
| User Memory | 4,000 Instructions |
| Program Scan Time | 8 milliseconds |
| I/O Scan time | 2.6 milliseconds |
| I/O Chassis | 3 |
| Chassis Module Slots | 30 |
| Communication | DH-485 |
| Backup Memory | EEPROM |
| Backplane Current (5 Volts DC) | 350 milliamps |
| Backplane Current (24 Volts DC) | 105 milliamps |
| Operating Temperature | 0-60 Celsius |
| UPC | 10662073748271 |
About 1747-L514
The AB 1747-L514 is an SLC 500 processor unit. This module is also termed as an SLC 5/01 controller which is a single slot width controller. It mounts to the slot 0 of any 1746 modular chassis. It comes with a 4K user memory and embedded DH-485 communication interface.
The 1747-L514 is designed for use in small and medium automation requirements. It is capable of controlling a maximum number of 30 I/O modules which can be distributed up to a maximum of 3 1746 chassis. It supports implementation of extended I/O and remote I/O chassis using a variety of supported communication adapter by this SLC 500 controller.
The 1747-L514 has an electrical current load of 0.090 at 5VDC. It has a minimum power consumption of 1.75 Watts. This controller may be programmed using the RSLogix 500 programming software, installed in a computer workstation that run a Microsoft Windows operating system. The embedded DH-485 port supports use of the 1761-NET-AIC or the Advanced Interface Converter (AIC) module. Additionally, the memory tables of the SLC 5/01 is accessible using the AB Data Table Access module (DTAM).
The 1747-L514 may be installed with an optional non-volatile memory. Non-volatile memory are in the form of Electrically Erasable Programmable Read-Only Memory (EEPROM). Compatible EEPROM are 1747-M1with 1K User Words EEPROM, 1747-M2 with 4 K User Words EEPROM with a 1747-M5 memory module adapter socket. EEPROM modules may be used to burn programs stored in the built-in memory which is a Random Access Memory (RAM). By burning program to the non-volatile memory, user program may be automatically loaded once the controller is power cycled.
It uses the 1747-BA lithium battery assembly with a 30-minute capacitor life and a lithium battery with a 2-year lifespan for backup power for the standard RAM. The 1747-L514 offers optional EEPROM backup, and with a 4K memory, it can process a maximum of 52 programming instructions, using the RSLogix 500 programming software. The 1747-L514 has a maximum bit execution time of 4µs and an overall module scan time of 8ms/K. During a temporary power loss, the program scan on the module can take from 20ms to 3s depending on the power supply that is loading. It comes with a base DH-485 communication capability which can only act in a slave capacity (Receiving) in the programming channel. The 1747-L514 has an ambient operating temperature range of 0-60°C (32-140°F) at 5-95% non-condensing relative humidity range, and it is designed to sustain an operational shock of 30G, and a vibration of 2.5G at 57-2000Hz. The 1747-L514 is C-UL, UL, and CE-certified, and it offers a NEMA standard ICS 2-230 industrial noise immunity.
The 1747-L514 is designed for use in small and medium automation requirements. It is capable of controlling a maximum number of 30 I/O modules which can be distributed up to a maximum of 3 1746 chassis. It supports implementation of extended I/O and remote I/O chassis using a variety of supported communication adapter by this SLC 500 controller.
The 1747-L514 has an electrical current load of 0.090 at 5VDC. It has a minimum power consumption of 1.75 Watts. This controller may be programmed using the RSLogix 500 programming software, installed in a computer workstation that run a Microsoft Windows operating system. The embedded DH-485 port supports use of the 1761-NET-AIC or the Advanced Interface Converter (AIC) module. Additionally, the memory tables of the SLC 5/01 is accessible using the AB Data Table Access module (DTAM).
The 1747-L514 may be installed with an optional non-volatile memory. Non-volatile memory are in the form of Electrically Erasable Programmable Read-Only Memory (EEPROM). Compatible EEPROM are 1747-M1with 1K User Words EEPROM, 1747-M2 with 4 K User Words EEPROM with a 1747-M5 memory module adapter socket. EEPROM modules may be used to burn programs stored in the built-in memory which is a Random Access Memory (RAM). By burning program to the non-volatile memory, user program may be automatically loaded once the controller is power cycled.
It uses the 1747-BA lithium battery assembly with a 30-minute capacitor life and a lithium battery with a 2-year lifespan for backup power for the standard RAM. The 1747-L514 offers optional EEPROM backup, and with a 4K memory, it can process a maximum of 52 programming instructions, using the RSLogix 500 programming software. The 1747-L514 has a maximum bit execution time of 4µs and an overall module scan time of 8ms/K. During a temporary power loss, the program scan on the module can take from 20ms to 3s depending on the power supply that is loading. It comes with a base DH-485 communication capability which can only act in a slave capacity (Receiving) in the programming channel. The 1747-L514 has an ambient operating temperature range of 0-60°C (32-140°F) at 5-95% non-condensing relative humidity range, and it is designed to sustain an operational shock of 30G, and a vibration of 2.5G at 57-2000Hz. The 1747-L514 is C-UL, UL, and CE-certified, and it offers a NEMA standard ICS 2-230 industrial noise immunity.
