Product Details:
Payment & Shipping Terms:
|
| Brand: | MITSUBISHI | Modenl Number: | QJ71BR11 |
|---|---|---|---|
| Country Of Origin: | Japan | Program Capacity: | 8 K Steps |
| Basic Operation Processing Speed (LD Instruction): | 0.12 μs | Input: | 100 To 240 V AC |
| Output: | 5 V DC/3 A | Type: | Redundant Power Supply Module |
| Highlight: | plc power supply module,diode redundancy module |
||

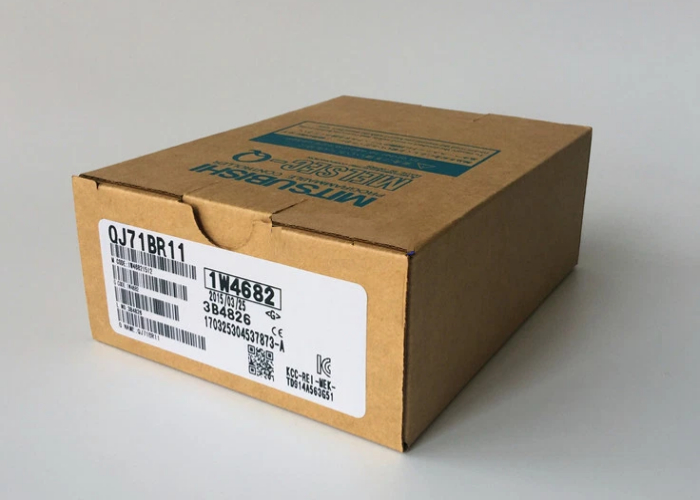

QJ71BR11 Mitsubishi Universal model Redundant Power Supply Module
QJ71BR11 Overview
The QJ71BR11 is a MELSECNET/H network module manufactured by Mitsubishi Electric, designed for the Q series PLC systems. It facilitates high-speed data communication between programmable logic controllers (PLCs) and remote I/O stations, supporting both PLC-to-PLC networks (control/standard stations) and remote I/O networks (remote master stations). This module utilizes cost-effective coaxial cables for reliable industrial automation applications, enabling seamless integration into large-scale control systems
.
QJ71BR11 Key Features
High-Speed Communication: Operates at a transmission speed of 10 Mbps, ensuring efficient data exchange for real-time control applications
.
Dual Network Support: Functions in both PLC-to-PLC networks (control/standard stations) and remote I/O networks (remote master stations), enhancing system flexibility
.
Coaxial Cable Connectivity: Uses 75Ω coaxial cables (3C-2V/5C-2V types), reducing wiring costs compared to optical fiber systems while maintaining noise resistance
.
Scalable Architecture: Supports up to 32 stations per network (1 master station + 31 standard stations) and allows 4 modules to be installed per CPU, accommodating expansive industrial networks
.
Large Data Capacity: Handles substantial I/O points, including 8,192 LX/LY points (MELSECNET/10) or 16,384 LB/LW points (MELSECNET/10H), with a maximum data transfer capacity of 2,000 bytes per station for general and low-speed cyclic communication
.
QJ71BR11 Material and Applications
The module employs industrial-grade electronic components and connectors compatible with 75Ω coaxial cables (3C-2V/5C-2V). Its housing is designed for durability in harsh environments, typical of factory automation systems. Primary applications include:
Factory Automation: Integrating PLCs and remote I/O devices in manufacturing lines.
Process Control: Enabling real-time data exchange between control systems in chemical, electronic, and automotive industries
.
Energy Management: Monitoring and controlling distributed I/O points in utility systems
.
QJ71BR11 Key Parameters
The following table summarizes the critical technical specifications of the QJ71BR11 module:
|
Parameter |
Specification |
|---|---|
| Communication Speed | 10 Mbps |
| Network Type | MELSECNET/10H, Single-bus system |
| Cable Type | 75Ω coaxial cable (3C-2V/5C-2V) |
| Max. Stations per Network | 32 stations (1 master + 31 standard stations) |
| Max. Network Distance | 500m (5C-2V cable) / 300m (3C-2V cable) |
| I/O Points Capacity | LX/LY: 8,192 points (MELSECNET/10) or 16,384 points (MELSECNET/10H) |
| Data Transfer Capacity | Up to 2,000 bytes per station (cyclic communication) |
| Power Consumption | 0.75A (DC 5V) |
| Weight | 0.11 kg |
| Installable Modules per CPU | 4 units |
|
Attribute |
Value |
|---|---|
|
For Use With |
MELSEC Q Series |
|
Number of I/O |
2048 |
|
Manufacturer Series |
MELSEC Q |
|
Input Type |
Analogue, Digital |
|
Voltage Category |
5 V dc |
|
Output Type |
Analogue, Digital |
|
Communication Port Type |
RS232C |
|
Program Capacity |
32 kB |
|
Programming Interface |
Computer, Operating Panel |
|
Length |
89.3mm |
|
Maximum Inputs/Outputs |
8192 |
|
Number of Communication Ports |
1 |
|
Width |
27.4mm |
|
Maximum Operating Temperature |
+55°C |
|
Dimensions |
89.3 x 27.4 x 98 mm |
|
Depth |
98mm |
|
Battery Backup |
Yes |
|
Minimum Operating Temperature |
0°C |
|
Mounting Type |
DIN Rail |
|
Memory |
94 kB |
Model: QJ71FL71-B2-F01
Ver.2.00.
10BASE2
Mitsubishi QJ71FL71-B2-F01
Model: QJ71FL71-B5-F01
Ver.2.00.
10BASE5
Model: MITSUBISHI QJ71FL71-B2-F01 QJ71FL71-B5
Ver.1.00.
10BAASE5
Model: QJ71FL71-B2-F01 QJ71FL71-B2
Ver.1.00.
10BASE2
