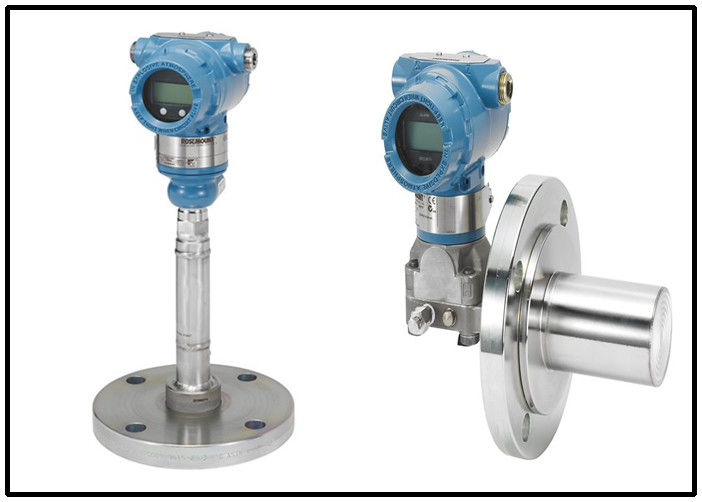

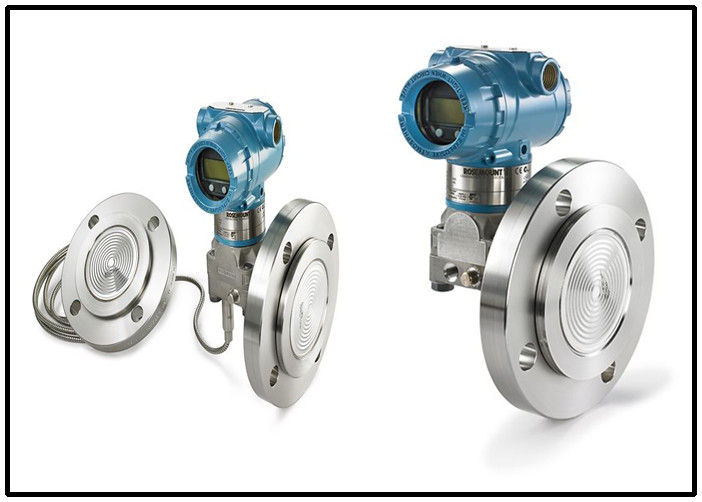

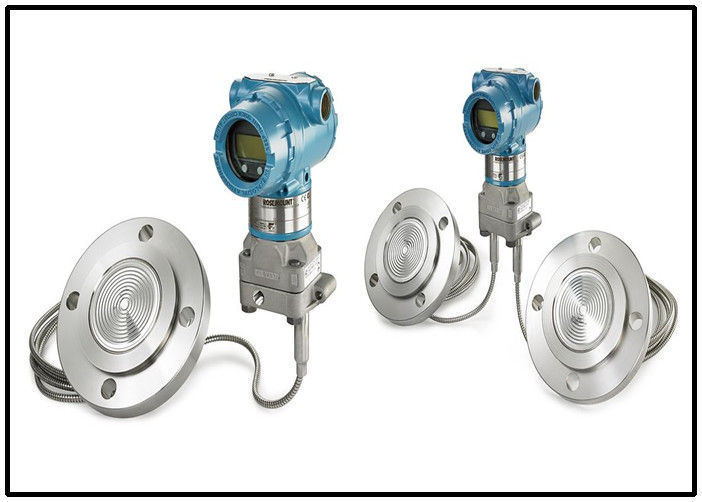

Direct Mount Pressure Temperature Transmitter Rosemount 3051L Level Transmitter Wireless

Large Image :  Direct Mount Pressure Temperature Transmitter Rosemount 3051L Level Transmitter Wireless

Product Details:

Place of Origin: Singapore
Brand Name: Emerson-Rosemount
Certification: CO
Model Number: Rosemount 3051L

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 2000 USD
Packaging Details: New Original Box
Delivery Time: 1-2 week
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Category: Level Transmitter Max. Operating Pressure: Up To 300 Psi (20,68 Bar)
Process Temperature Range: -205°C-105°C Seal System Type: Direct Mount, Tuned-System
Rangedown Up To 150:1 Communication Protocol: 4-20 MA HART Process Wetted Material: 316L SST, Alloy C-276, Tantalum
High Light:

high temperature differential pressure transmitter

,

absolute pressure transmitter

Pressure Transmitter Rosemount 3051L Level Transmitter Wireless Singapore Order


Introduction:

Rosemount™ 3051L Level Transmitter

With field-proven reliability, the Rosemount 3051L Level Transmitter is a fully-integrated level solution. This safety-certified transmitter allows for direct mounting or a Tuned-System™ assembly for optimized performance that reduces temperature effects by 10-20% and improves response time by over 80% versus traditional installations. Power advisory diagnostics enable this device to monitor electrical loop integrity and the Local Operator Interface (LOI) offers on-site commissioning.




Specifications:



Max. Operating Pressure Up to 300 psi (20,68 bar)
Process Temperature Range Based on fill fluid - Maximum 401°F (205°C), Minimum -157°F (-105°C)
Communication Protocol 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®
Seal System Type Direct Mount, Tuned-System
Transmitter Connection Transmitter Connection
Process Connection Flanged: ANSI/ASME, EN/DIN, JIS
Process Wetted Material 316L SST, Alloy C-276, Tantalum
Diagnostics Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of certifications




Ordering Type

3051L Wireless / Level Transmitter



Rosemount 3051L Level Transmitter Ordering Information


The Standard offering represents the most common options. The starred options should be selected for best delivery.
The Expanded offering is subject to additional delivery lead time.






If you need more order information, we can send you the complete datasheet.





Rosemount 3051L Dimensional Drawings






Certifications:

1. Certificate of Origin

2. Calibration Certificate

3. Material Traceability Certification




Typical model number: 3051L 2 A A0 D 21 A A F1
